ST16C552CJ

Dual UART with 16-byte FIFO, 1.5Mbps, PLCC-68

5000

Effective Inventory
Go to Inquiry

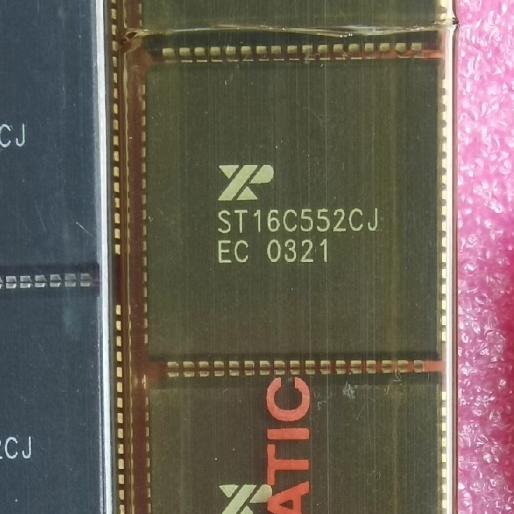

Image for reference only

Manufacturer Part：

ST16C552CJ

Package：

PLCC-68

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ST16C552CJ is a dual channel UART from Exar with 16-byte transmit and receive FIFOs per channel. Each channel is fully 16C550 compatible. The CJ designation is a 68-pin PLCC package for commercial temperature range. Supports Intel and Motorola bus interfaces.

Key Specifications

Type Dual UART (16C550 compatible)
Channels 2
FIFO 16-byte per channel (TX/RX)
Max Data Rate 1.5 Mbps (5V)
Voltage 2.97V ~ 5.5V
Package 68-pin PLCC
Temp Range 0°C ~ 70°C

Features

  • Two independent 16C550 UART channels
  • 16-byte FIFOs per channel
  • Up to 1.5Mbps per channel
  • Intel/Motorola bus compatible
  • Full modem interface per channel
  • 68-pin PLCC package

Applications

  • Multi-port serial cards
  • Industrial control systems
  • Network equipment
  • POS terminals
  • Embedded systems

The ST16C552CJ is a dual channel UART from Exar with 16-byte transmit and receive FIFOs per channel. Each channel is fully 16C550 compatible. The CJ designation is a 68-pin PLCC package for commercial temperature range. Supports Intel and Motorola bus interfaces.

The ST16C552 integrates two independent 16C550 UART channels on a single chip. Each channel has its own set of registers, baud rate generator, and FIFOs. Shared address and data bus with channel select logic enables efficient CPU interfacing.

Pin Group Name Description
Data Bus D0-D7 8-bit bidirectional data
Address A0-A3 Register + channel select
Control IOR#, IOW#, CSA#, CSB# Bus and chip select per channel
Serial RXA, TXA, RXB, TXB Two channel serial I/O
Modem CTS#, RTS#, etc. (per channel) Modem control signals
Interrupt INTA, INTB Per-channel interrupts
Clock XTAL1, XTAL2 Crystal oscillator
  • Multi-port serial cards
  • Industrial control systems
  • Network equipment
  • POS terminals
  • Embedded systems
Manufacturer Part Number Description
TI TL16C552 Dual UART compatible
NXP SC16C552 Dual UART
Exar ST16C554 Quad UART
