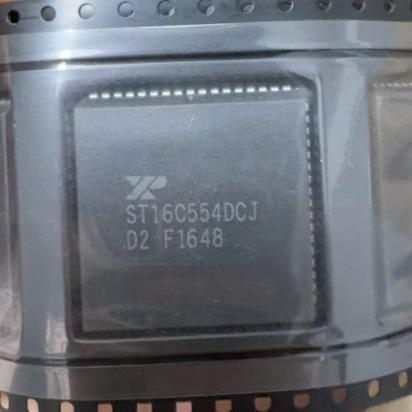

ST16C554DCJ

Quad UART with 16-byte FIFO, 1.5Mbps, PLCC-68, Motorola bus mode

5000

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

ST16C554DCJ

Package：

PLCC-68

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ST16C554DCJ is a quad channel UART from Exar (MaxLinear) with 16-byte FIFOs per channel. The ‘D’ variant supports both Intel and Motorola bus interface modes via selectable pin configuration. 68-pin PLCC package, commercial temperature range. Data rates up to 1.5Mbps at 5V.

Key Specifications

Type Quad UART (16C550 compatible)
Channels 4
FIFO 16-byte per channel (TX/RX)
Max Data Rate 1.5 Mbps (5V), 500Kbps (3.3V)
Voltage 2.97V ~ 5.5V
Bus Interface Intel + Motorola (D variant)
Package 68-pin PLCC (DCJ)
Temp Range 0°C ~ 70°C

Features

  • Four independent 16C550 UART channels
  • Intel/Motorola dual bus interface
  • 16-byte FIFOs per channel
  • Up to 1.5Mbps at 5V operation
  • 4 selectable RX FIFO trigger levels
  • Full modem interface per channel
  • 68-pin PLCC package
  • Commercial temperature range

Applications

  • Multi-port serial communication cards
  • Network routers and switches
  • Industrial automation
  • Telecom equipment
  • POS terminals
  • Embedded systems

The ST16C554DCJ is a quad channel UART from Exar (MaxLinear) with 16-byte FIFOs per channel. The ‘D’ variant supports both Intel and Motorola bus interface modes via selectable pin configuration. 68-pin PLCC package, commercial temperature range. Data rates up to 1.5Mbps at 5V.

The ST16C554D integrates four independent 16C550-compatible UARTs. The dual footprint interface allows operation in either Intel (68-pin mode 16) or Motorola (68-pin mode 68) bus configurations. Each channel has independent baud rate generators, FIFOs, and interrupt logic.

Pin Group Name Description
Data Bus D0-D7 8-bit bidirectional data
Address A0-A4 Register + channel select (4 channels)
Control IOR#, IOW#, CSA#-CSD# Bus and per-channel chip select
Serial RX A-D, TX A-D 4-channel serial I/O
Modem CTS#, RTS#, etc. Modem control (per channel)
Interrupt INT A-D Per-channel interrupt outputs
Clock XTAL1, XTAL2 Crystal oscillator
  • Multi-port serial communication cards
  • Network routers and switches
  • Industrial automation
  • Telecom equipment
  • POS terminals
  • Embedded systems
Manufacturer Part Number Description
TI TL16C554A Quad UART compatible
NXP SC16C554B Quad UART
Exar ST16C554DIJ Industrial temp PLCC
