ST16C554DIJ

Quad UART with 16-byte FIFO, Industrial Temp, PLCC-68

5000

Effective Inventory
Go to Inquiry

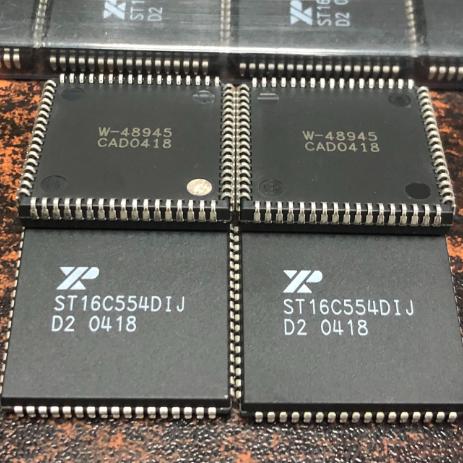

Image for reference only

Manufacturer Part：

ST16C554DIJ

Package：

PLCC-68

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ST16C554DIJ is the industrial temperature grade version of the Exar quad UART in 68-pin PLCC package. Rated for -40°C to +85°C with four independent 16C550-compatible channels. Supports both Intel and Motorola bus interfaces. Data rates up to 1.5Mbps at 5V.

Key Specifications

Type Quad UART (16C550)
Channels 4
FIFO 16-byte per channel
Max Data Rate 1.5 Mbps (5V)
Voltage 2.97V ~ 5.5V
Package 68-pin PLCC (DIJ)
Temp Range -40°C ~ +85°C (industrial)

Features

  • Industrial temperature: -40°C to +85°C
  • Four 16C550 compatible UART channels
  • Intel/Motorola dual bus
  • 16-byte FIFOs per channel
  • 1.5Mbps maximum data rate
  • 68-pin PLCC package
  • Rugged industrial grade

Applications

  • Industrial automation systems
  • Outdoor telecom equipment
  • Automotive electronics
  • Network infrastructure
  • Factory automation
  • Process control

The ST16C554DIJ is the industrial temperature grade version of the Exar quad UART in 68-pin PLCC package. Rated for -40°C to +85°C with four independent 16C550-compatible channels. Supports both Intel and Motorola bus interfaces. Data rates up to 1.5Mbps at 5V.

Industrial grade quad UART with identical architecture to commercial version, qualified for extended temperature range for demanding industrial and outdoor applications.

Pin Group Name Description
Data Bus D0-D7 8-bit data bus
Address A0-A4 Register/channel select
Serial RX/TX x4 4 channels serial I/O
Control CS#, IOR#, IOW# Bus interface
Interrupt INT A-D Per-channel interrupts
Clock XTAL1, XTAL2 Oscillator
  • Industrial automation systems
  • Outdoor telecom equipment
  • Automotive electronics
  • Network infrastructure
  • Factory automation
  • Process control
Manufacturer Part Number Description
Exar ST16C554DCJ Commercial temp
TI TL16C554AI Industrial quad UART
MaxLinear ST16C554DIQ Industrial TQFP-64
