STM32F103CBT7

ARM Cortex-M3 MCU, 72MHz, 128KB Flash, 20KB SRAM, 48-LQFP, -40 to 105°C

12458

Effective Inventory
Go to Inquiry

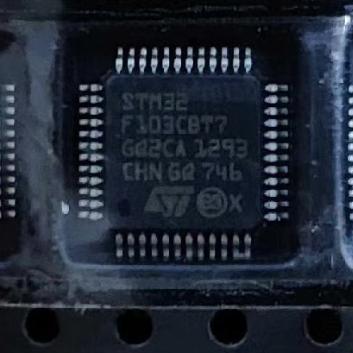

Image for reference only

Manufacturer Part：

STM32F103CBT7

Package：

48-LQFP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The STM32F103CBT7 is a medium-density performance line microcontroller from STMicroelectronics, featuring an ARM Cortex-M3 32-bit RISC core operating at 72 MHz. It includes 128 Kbytes of Flash memory and 20 Kbytes of SRAM, packaged in a 48-pin LQFP. The device offers a rich set of peripherals including two 12-bit ADCs, three general-purpose timers, a motor control PWM timer, two I2C interfaces, two SPI interfaces, three USARTs, USB 2.0 full-speed, and CAN interface. It operates from 2.0V to 3.6V with an extended temperature range of -40°C to +105°C.

Key Specifications

Core ARM Cortex-M3 32-bit RISC
Clock Frequency 72 MHz
Flash Memory 128 KB
SRAM 20 KB
Voltage Supply 2.0V ~ 3.6V
Operating Temperature -40°C ~ 105°C
Package 48-LQFP (7x7mm)
I/O Pins 37
ADC 2 x 12-bit, 10 channels
Communication Interfaces 2x SPI, 2x I2C, 3x USART, 1x USB, 1x CAN

Features

  • ARM Cortex-M3 core at 72 MHz with 1.25 DMIPS/MHz
  • 128 KB Flash memory with 20 KB SRAM
  • Single-cycle multiplication and hardware division
  • Power-on reset (POR), PDR, and programmable voltage detector (PVD)
  • Low-power modes: Sleep, Stop, Standby
  • VBAT supply for RTC and backup registers
  • 7-channel DMA controller
  • Two 12-bit ADCs with 1 µs conversion time
  • Seven timers including motor control PWM timer
  • USB 2.0 full-speed interface
  • CAN 2.0B active interface
  • CRC calculation unit and 96-bit unique ID
  • Serial wire debug (SWD) and JTAG interfaces

Applications

  • Motor drives and application control
  • Medical and handheld equipment
  • PC and gaming peripherals
  • GPS platforms
  • Industrial applications and PLCs
  • Printers and scanners
  • Alarm systems and video intercoms
  • HVAC systems

The STM32F103CBT7 is a medium-density performance line microcontroller from STMicroelectronics’ STM32F1 series. Built around the ARM Cortex-M3 32-bit RISC core operating at 72 MHz, it delivers 1.25 DMIPS/MHz (Dhrystone 2.1) performance with 0 wait state memory access. The device integrates 128 Kbytes of Flash memory and 20 Kbytes of SRAM, along with an extensive range of enhanced I/Os and peripherals connected via two APB buses. Key peripherals include two 12-bit ADCs with up to 16 channels, three general-purpose 16-bit timers, one PWM motor control timer, two I2C interfaces, two SPI interfaces (18 Mbit/s), three USARTs, USB 2.0 full-speed, and CAN 2.0B. The 48-pin LQFP package provides 37 GPIO pins, all 5V-tolerant and mappable to 16 external interrupt vectors. Operating from 2.0V to 3.6V with industrial temperature range up to 105°C, it is suitable for a wide range of applications including motor control, industrial automation, medical devices, and consumer electronics.

The STM32F103CBT7 operates as a Harvard architecture microcontroller with separate instruction and data buses. The ARM Cortex-M3 core fetches instructions from Flash memory through an instruction bus and accesses data through a data bus, both connected via a bus matrix to the memory and peripherals. The core supports Thumb-2 instruction set for high code density and performance. A nested vectored interrupt controller (NVIC) handles up to 43 maskable interrupt channels with 16 priority levels. The system clock is generated by an internal PLL multiplying an 8MHz internal RC or 4-16MHz external crystal oscillator up to 72MHz. Peripherals are accessed via APB1 (max 36MHz) and APB2 (max 72MHz) buses. The DMA controller offloads data transfers between memory and peripherals without CPU intervention. Power management includes multiple low-power modes with wakeup capability, and a real-time clock (RTC) powered by VBAT for timekeeping during main power loss.

Port Pin Count Description
PA0-PA15 16 GPIO Port A with multiple alternate functions (SPI, USART, ADC, TIM)
PB0-PB15 16 GPIO Port B with alternate functions (I2C, SPI, USART, TIM)
PC13-PC15 3 GPIO Port C (limited pins in 48-pin package)
PD0-PD1 2 GPIO Port D (OSC_IN/OSC_OUT)
VDD/VDDA – Power supply: 2.0V to 3.6V, VDDA for ADC
VSS/VSSA – Ground connections
NRST 1 Active low reset pin
BOOT0 1 Boot mode selection pin
OSC_IN/OUT 2 High speed external oscillator pins
OSC32_IN/OUT 2 Low speed 32kHz RTC oscillator pins
  • Industrial motor drives and control systems
  • Medical devices and handheld equipment
  • Consumer electronics and gaming peripherals
  • GPS tracking and navigation devices
  • Industrial PLCs and automation
  • Printers, scanners and imaging equipment
  • Security alarm systems and video intercoms
  • HVAC and building automation
Manufacturer Part Number Description
GigaDevice GD32F103CBT6 Cortex-M3, 72MHz, 128KB Flash, LQFP48
Microchip ATSAM3S4BA Cortex-M3, 64MHz, 128KB Flash, LQFP48
NXP LPC1768FBD100 Cortex-M3, 100MHz, 512KB Flash (pin compatible family)
APM APM32F103CBT6 Cortex-M3, 96MHz, 128KB Flash, LQFP48
