W25Q40EWUXIE

4Mb 1.8V Serial NOR Flash, Quad SPI, 104MHz, 512KB, USON-8 (2x3mm), industrial, T&R

12345

Effective Inventory
Go to Inquiry

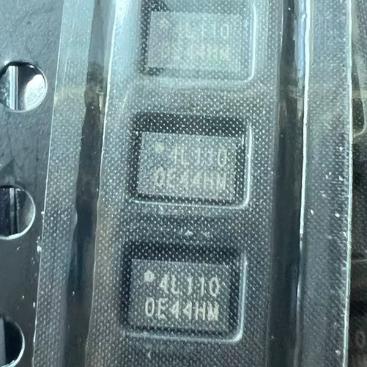

Image for reference only

Manufacturer Part：

W25Q40EWUXIE

Package：

USON-8 (2mm x 3mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

LY62L12816ML-70LLI

LY62L51216ML-70LLI

CSS1604LS-LI

IS62WV102416GBLL-45TLI

IS62WV51216HBLL-45TLI

KLM8G1GETF-B041006

H26M41204HPR

IS61WV51216EDBLL-10TLI

Description

Product Overview

The W25Q40EWUXIE is a 4Mbit (512KB) Serial NOR Flash Memory from Winbond operating at 1.65V to 1.95V with Standard/Dual/Quad SPI interface. The EW series is the ultra-low-voltage (1.8V) variant of the popular W25Q family, with clock rates up to 104 MHz. The UXIE suffix indicates USON-8 (2x3mm) package with industrial temperature range and tape & reel packing, ideal for ultra-compact 1.8V IoT and wearable designs.

Key Specifications

Density 4Mbit (512KB)
Supply Voltage 1.65V to 1.95V
Interface Standard/Dual/Quad SPI
Max Clock Rate 104 MHz
Page Size 256 bytes
Sector Size 4KB
Page Program 0.8 ms typical
Sector Erase 50 ms typical (4KB)
Endurance 100,000 P/E cycles
Operating Temp -40°C to +85°C
Package USON-8 (2mm x 3mm)
Packing Tape & Reel
Part Status Active

Features

  • 4Mbit Serial NOR Flash at 1.8V
  • Standard/Dual/Quad SPI, 104 MHz clock
  • Ultra-low-voltage: 1.65V to 1.95V
  • Ultra-compact USON-8 (2x3mm) package
  • 4KB uniform sectors, 256-byte pages
  • OTP area (256 bytes lockable)
  • 100K P/E endurance, 20-year retention
  • Tape & reel for automated assembly

Applications

  • 1.8V MCU boot and firmware storage
  • Ultra-compact wearable and IoT devices
  • BLE and NB-IoT module code storage
  • Space-constrained 1.8V systems

The W25Q40EWUXIE is a 4Mbit (512KB) Serial NOR Flash from Winbond operating at 1.65V to 1.95V with Standard/Dual/Quad SPI and 104 MHz clock. The EW series is the ultra-low-voltage (1.8V) variant of the W25Q family. The ultra-compact USON-8 (2x3mm) package with tape & reel packing makes it ideal for 1.8V MCU boot storage in space-constrained wearable and IoT applications.

Serial NOR Flash at 1.8V with Standard/Dual/Quad SPI. The 1.8V operation reduces power consumption by ~40% vs 3.3V variants. Read: Command + address + dummy → data out. Program: Write enable → page program (256 bytes). Erase: Sector (4KB) or chip erase. Hold# suspends operation; WP# protects status register. Quad SPI provides 4x read bandwidth for fast boot.

Pin Name Type Function
1 CS# Input Chip select
2 DO/IO1 I/O Data out / IO1
3 WP#/IO2 I/O Write protect / IO2
4 GND Power Ground
5 DI/IO0 I/O Data in / IO0
6 CLK Input Clock
7 HOLD#/IO3 I/O Hold / IO3
8 VCC Power 1.8V supply
  • 1.8V MCU bootloader (nRF52, STM32L4)
  • Wearable device firmware storage
  • BLE/NB-IoT module code Flash
  • Ultra-compact 1.8V IoT sensor
Manufacturer Part Number Package Notes
GigaDevice GD25Q40CE USON-8 4Mb 1.8V QSPI alternative
Macronix MX25U4033F USON-8 4Mb 1.8V QSPI alternative
