W25Q64JVSIQ

64Mb Serial NOR Flash, Quad SPI, 133MHz, 8MB, SOIC-8, -40~85°C

34567

Effective Inventory
Go to Inquiry

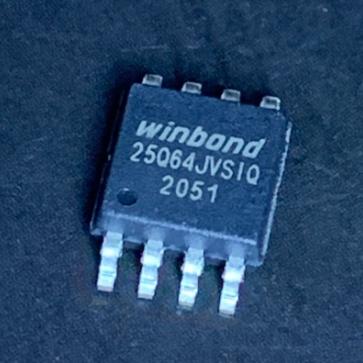

Image for reference only

Manufacturer Part：

W25Q64JVSIQ

Package：

SOIC-8 (208mil)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

The W25Q64JVSIQ is a 64Mbit (8MB) Serial NOR Flash Memory from Winbond with Standard/Dual/Quad SPI and 133 MHz clock rate. One of the most widely used SPI NOR Flash densities, it serves as the default code storage choice for many microcontroller and SoC designs. Packaged in SOIC-8 (208mil).

Key Specifications

Density 64Mbit (8MB)
Supply Voltage 2.7V to 3.6V
Interface Standard/Dual/Quad SPI
Max Clock Rate 133 MHz
Page Size 256 bytes
Sector Size 4KB
Endurance 100,000 P/E cycles
Operating Temp -40°C to +85°C
Package SOIC-8 (208mil)
Part Status Active

Features

  • 64Mbit Serial NOR Flash — most popular density
  • Standard/Dual/Quad SPI, 133 MHz
  • 4KB sectors, 32KB/64KB blocks
  • OTP area, security registers
  • 100K P/E endurance, 20-year retention

Applications

  • Default MCU/SoC code storage
  • Linux boot and rootfs
  • XIP firmware execution
  • OTA update partition storage

The W25Q64JVSIQ is a 64Mbit (8MB) Serial NOR Flash from Winbond with Standard/Dual/Quad SPI and 133 MHz clock. As one of the most widely used SPI NOR Flash densities, it serves as the default code storage for many MCU and SoC designs, including STM32, ESP32, and NXP platforms. The SOIC-8 (208mil) package is supported by virtually all PCB design tools.

Serial NOR Flash with Standard/Dual/Quad SPI modes. In Quad SPI mode, all four IO lines transfer data for 4x read bandwidth, enabling fast XIP (Execute-in-Place) operation. Read/program/erase follow standard SPI NOR Flash protocol. 100K P/E endurance per sector with 20-year data retention.

Pin Name Type Function
1 CS# Input Chip select
2 DO/IO1 I/O Data out / IO1
3 WP#/IO2 I/O WP / IO2
4 GND Power Ground
5 DI/IO0 I/O Data in / IO0
6 CLK Input Clock
7 HOLD#/IO3 I/O Hold / IO3
8 VCC Power Supply
  • STM32 / ESP32 / NXP code storage (default choice)
  • Embedded Linux boot + rootfs
  • XIP firmware execution
  • OTA update dual-bank partition
Manufacturer Part Number Package Notes
GigaDevice GD25Q64C SOP-8 64Mb QSPI alternative
Macronix MX25L6433F SOP-8 64Mb QSPI alternative
ISSI IS25LP064A SOP-8 64Mb QSPI alternative
