W29N02KVSIAF

2Gb SLC NAND Flash, 256Mx8, ONFI 1.0, 2K+64 page, TSOP I-48, longevity

4532

Effective Inventory
Go to Inquiry

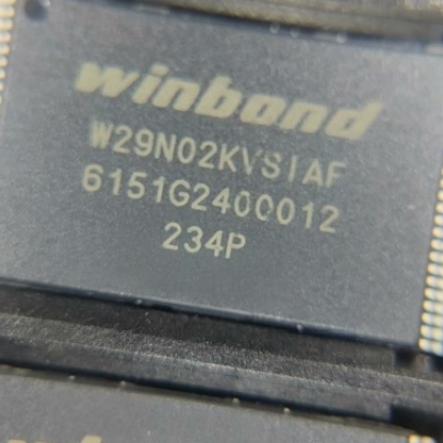

Image for reference only

Manufacturer Part：

W29N02KVSIAF

Package：

TSOP I-48 (12 x 20 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

LY62L12816ML-70LLI

LY62L51216ML-70LLI

CSS1604LS-LI

IS62WV102416GBLL-45TLI

W25Q40EWUXIE

IS62WV51216HBLL-45TLI

KLM8G1GETF-B041006

H26M41204HPR

Description

Product Overview

The W29N02KVSIAF is a 2Gbit SLC NAND Flash Memory from Winbond with uniform 2KB+64B page size, operating at 2.7V to 3.6V. It uses an 8-bit parallel (ONFI 1.0) interface and is packaged in a 48-pin TSOP I. The KV series offers SLC technology for high endurance and reliability, with features including Copy Back and OTP memory area. Winbond provides longevity product support.

Key Specifications

Density 2Gbit (256MB)
Cell Type SLC NAND
Supply Voltage 2.7V to 3.6V
Interface Parallel ONFI 1.0 (x8)
Page Size 2048 + 64 bytes
Block Size 64 pages (128KB + 4KB)
Random Read 25 µs
Page Program 250 µs (typical)
Block Erase 2 ms (typical)
Operating Temp -40°C to +85°C
Package TSOP I-48 (12x20mm)
Longevity Yes (Winbond WPLP)
Part Status Active

Features

  • 2Gbit SLC NAND Flash with high endurance
  • ONFI 1.0 standard command set
  • Uniform 2KB+64B page size
  • Copy Back operation for internal data move
  • OTP (One-Time Programmable) memory area
  • Write Protect pin for hardware protection
  • Ready/Busy pin for status monitoring
  • Winbond longevity product commitment

Applications

  • Embedded code storage (code shadowing)
  • Industrial data logging
  • Automotive systems
  • Set-top boxes and consumer electronics
  • POS terminals

The W29N02KVSIAF is a 2Gbit SLC NAND Flash Memory from Winbond with uniform 2KB+64B page size, operating at 2.7V to 3.6V via an 8-bit parallel ONFI 1.0 interface. SLC technology provides high endurance and reliability for code storage and data logging. Features include Copy Back for internal data movement, OTP memory area, and hardware write protection. The 48-pin TSOP I package and Winbond longevity product commitment make it ideal for long-lifecycle industrial and automotive applications.

The W29N02KV operates as a parallel SLC NAND Flash per the ONFI 1.0 standard. Memory is organized as pages (2048+64 bytes) grouped into blocks (64 pages per block, 128KB+4KB). Read: Page read command loads a page into the data register (25µs random access), then data is read sequentially at 25ns cycle time. Program: Load data into register, then issue program command (250µs typical). Erase: Block erase command (2ms typical). Copy Back enables internal data movement between pages without external data transfer. SLC stores 1 bit per cell for maximum endurance (~100K P/E cycles).

Pin Name Type Function
1-8, 19-26, 33-40, 41-48 I/O0-I/O7 I/O 8-bit data/address/command bus
– CE# Input Chip enable
– WE# Input Write enable
– RE# Input Read enable
– WP# Input Write protect
– R/B# Output Ready/Busy status
– ALE Input Address latch enable
– CLE Input Command latch enable
  • Embedded Linux/code storage via NAND controller
  • Industrial data logging with high endurance
  • Automotive ECU firmware storage
  • Set-top box code shadowing
Manufacturer Part Number Package Notes
Winbond W29N02GVSIAA TSOP I-48 GV series, same 2Gb
Micron MT29F2G08ABAEAH4 TSOP 2Gb SLC NAND alternative
Kioxia TC58NVG0S3HTAIG TSOP 2Gb SLC NAND alternative
