IRLR3110ZPBF

IRLR3110ZPBF - 100V N-Channel HEXFET Power MOSFET (Logic Level), 14 mΩ @ 10V RDS(on), DPAK (TO-252)

11745

Effective Inventory
Go to Inquiry

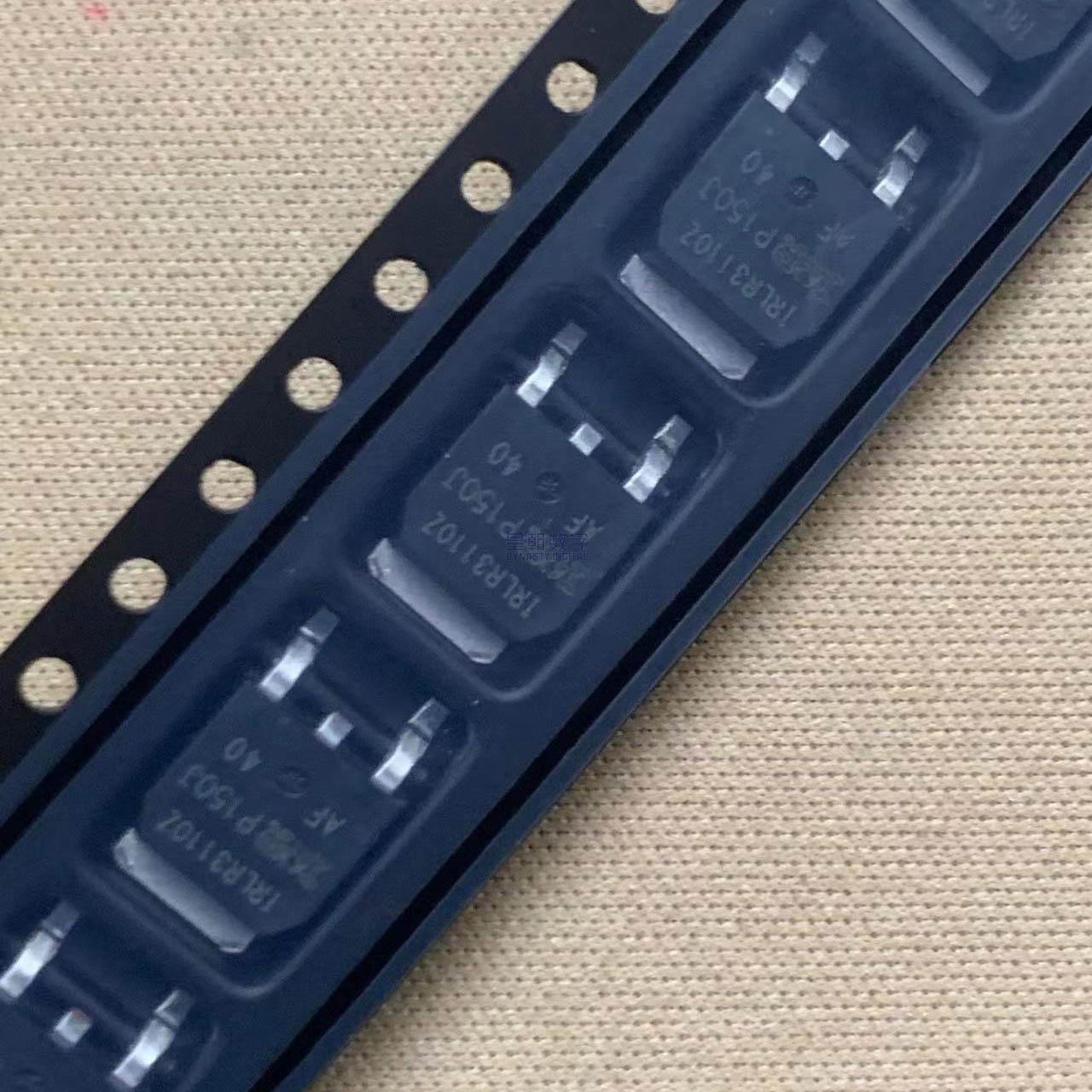

Image for reference only

Manufacturer Part：

IRLR3110ZPBF

Package：

DPAK (TO-252)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

IRFS4115TRLPBF

Description

Product Overview

The IRLR3110ZPBF is a 100V N-Channel HEXFET Power MOSFET (Logic Level) from Infineon Technologies (formerly International Rectifier), part of the HEXFET® Logic Level product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRLR3110ZPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRLR3110ZPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a DPAK (TO-252) package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 100 V
Continuous Drain Current (ID @ 25°C) 42A
Pulsed Drain Current (IDM) —
On-Resistance (RDS(on) max @ VGS=10V) 14 mΩ @ 10V
Gate Threshold Voltage (VGS(th)) 1.0 – 2.5 V
Gate-Source Voltage (VGS) ±16 V
Total Gate Charge (Qg) 34 nC (typ) @ 4.5V
Input Capacitance (Ciss) 3980 pF
Power Dissipation (PD) 140 W
Operating Junction Temperature -55 to +175 °C
Package DPAK (TO-252)

Features

  • 100 V drain-source voltage rating
  • Advanced HEXFET® Logic Level
  • Extremely low on-resistance per silicon area, fast switching
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • DPAK (TO-252) package

Applications

  • Power management, industrial control, DC-DC converters
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRLR3110ZPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® Logic Level family. It features a drain-source voltage rating of 100 V and continuous drain current of 42A with a maximum on-resistance of 14 mΩ @ 10V. Packaged in a DPAK (TO-252), this device is optimized for power management, industrial control, dc-dc converters. The IRLR3110ZPBF provides extremely low on-resistance per silicon area, fast switching, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRLR3110ZPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (1.0 – 2.5 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 14 mΩ @ 10V. The HEXFET® Logic Level cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 100 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • Power management, industrial control, DC-DC converters
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
