SQ4401EY-T1-GE3

P-channel TrenchFET MOSFET, -60V VDS, high current, low RDS(on), SO-8 package, halogen free, GE3

10530

Effective Inventory
Go to Inquiry

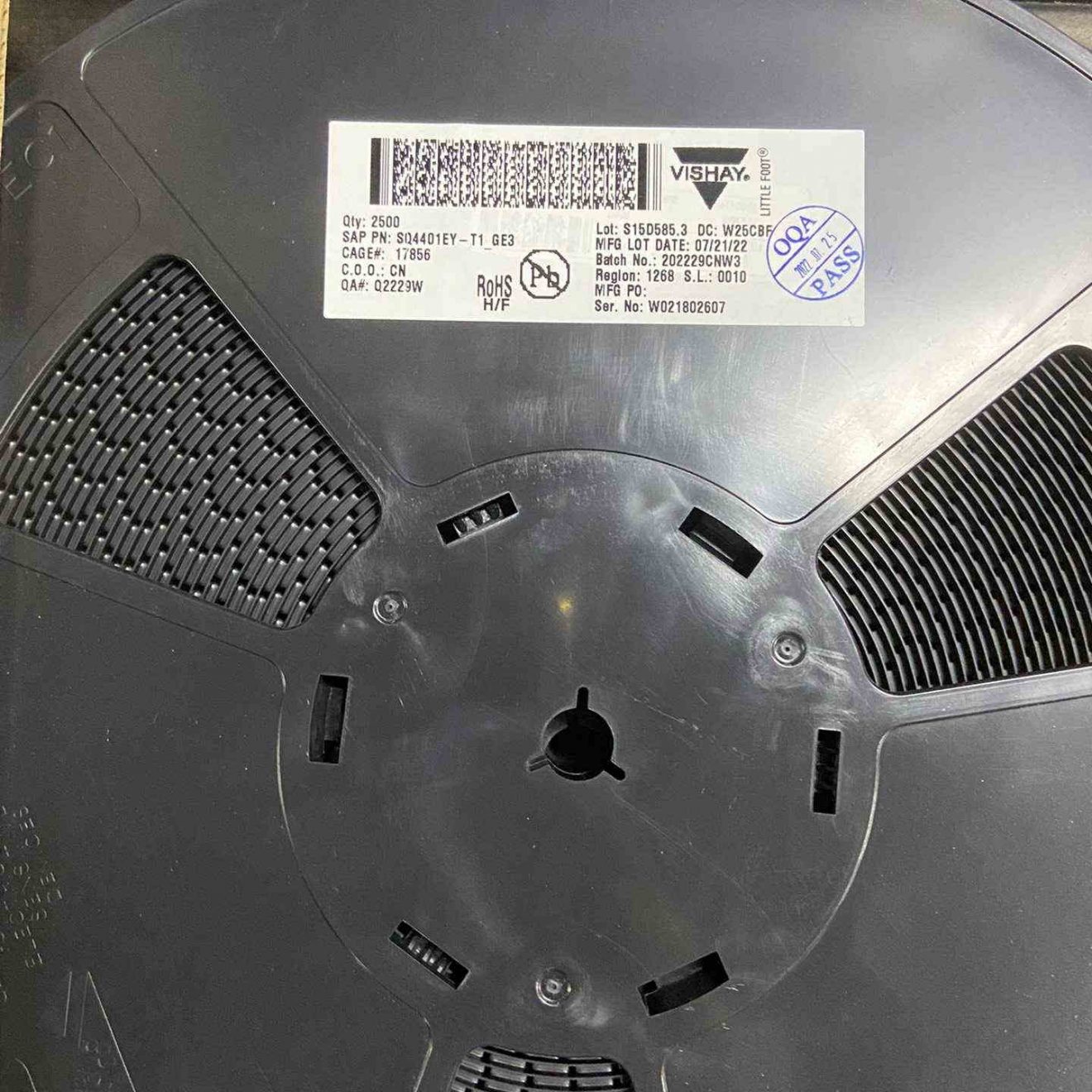

Image for reference only

Manufacturer Part：

SQ4401EY-T1-GE3

Package：

SO-8 (SOP-8)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STD25NF10T4

SIHG20N50C-E3

SI2309CDS-T1-GE3

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

Description

Product Overview

The SQ4401EY-T1-GE3 is a P-channel enhancement mode power MOSFET from Vishay Siliconix, featuring a -60V drain-source voltage rating and high current handling capability in a compact SO-8 package. This TrenchFET device is designed for applications requiring high power density and efficient switching performance. The ‘EY’ variant offers optimized RDS(on) characteristics, and the GE3 suffix indicates a lead-free, halogen-free, and RoHS-compliant device. Ideal for load switching, DC-DC converters, and power management applications.

Key Specifications

Manufacturer Vishay Siliconix
Product Category P-Channel Power MOSFET
FET Technology TrenchFET
Drain-Source Voltage (VDS) -60 V
Gate-Source Voltage (VGS) ±25 V
Continuous Drain Current (TC=25°C) -10 A (approx)
RDS(on) @ VGS=-10V ≤ 50 mΩ (typical)
RDS(on) @ VGS=-4.5V ≤ 70 mΩ (typical)
Gate-Source Threshold Voltage -1.0V to -3.0V
Total Gate Charge (Qg) ≈ 35 nC (typical)
Power Dissipation (TA=25°C) ≈ 2.5 W
Operating Temperature Range -55°C to +175°C
Package SO-8 (SOP-8)
Halogen Free Yes (GE3 suffix)

Features

  • P-Channel, 60V TrenchFET power MOSFET
  • Low on-resistance for high efficiency
  • High current carrying capacity in SO-8 package
  • Fast switching with low gate charge
  • Low gate drive requirements: 4.5V capable
  • 100% avalanche tested
  • High dv/dt ruggedness
  • RoHS compliant, lead-free, halogen-free (GE3)
  • Surface mount SO-8 package
  • Wide operating temperature range
  • Tape and reel packaging (T1 suffix)
  • High power density design

Applications

  • DC-DC converters and power supplies
  • Load switching and power distribution
  • Battery management systems
  • Motor control and drives
  • Reverse polarity protection
  • Automotive electronics
  • Industrial power systems
  • Telecom and datacom equipment

The SQ4401EY-T1-GE3 is a high-performance P-channel enhancement-mode power MOSFET from Vishay Siliconix’s TrenchFET product family. Rated at -60V drain-source voltage with high continuous drain current capability, this device delivers exceptional power density in the industry-standard SO-8 surface mount package. The Trench technology provides an excellent balance of low on-resistance and low gate charge, resulting in high efficiency in both switching and linear applications. The ‘EY’ designation indicates an optimized version with improved electrical characteristics. The T1 suffix indicates tape and reel packaging for automated assembly, while the GE3 suffix confirms that the device is lead-free, halogen-free, and fully RoHS compliant. With its low threshold voltage and good performance at VGS=-4.5V, this MOSFET is well-suited for low-voltage gate drive applications including battery-powered systems, DC-DC converters, load switches, and motor control circuits. The SO-8 package provides good thermal performance and is widely used in compact power supply designs.

The SQ4401EY is a P-channel enhancement-mode MOSFET utilizing TrenchFET technology. In P-channel devices, current flows from source to drain when the gate is pulled negative relative to the source. The Trench structure features vertical gate trenches etched into the silicon substrate, creating a denser channel structure that reduces on-resistance per unit area compared to conventional planar MOSFETs. When VGS is more negative than the threshold voltage VGS(th) (typically -1 to -3V), an inversion layer forms in the P-channel region between source and drain, allowing current flow. Since it is enhancement-mode, the device is normally off (non-conducting) when VGS = 0. The body diode formed by the P-drain/N-body junction can conduct in the reverse direction and has specific reverse recovery characteristics. The gate is electrically isolated from the channel by a thin oxide layer, resulting in very high input impedance and minimal steady-state gate drive current requirements.

Pin Number Pin Name Description
1 Drain (D) Drain Terminal
2 Drain (D) Drain Terminal
3 Drain (D) Drain Terminal
4 Gate (G) Gate Terminal
5 Source (S) Source Terminal
6 Source (S) Source Terminal
7 Source (S) Source Terminal
8 Source (S) Source Terminal

Note: Standard SO-8 MOSFET pinout. Multiple source/drain pins are paralleled for higher current carrying capacity.

  • DC-DC converters and switch-mode power supplies
  • Load switching and power distribution circuits
  • Battery management and protection systems
  • Motor control and driver circuits
  • Reverse polarity and over-voltage protection
  • Automotive power electronics
  • Industrial power and control systems
  • Telecommunications and data communications
Model Manufacturer Description
FDD6685 onsemi P-MOS, -60V, -11A, DPAK
IRF9530NPBF Infineon P-MOS, -100V, -14A, TO-220
NTD2955T4G onsemi P-MOS, -60V, -12A, DPAK
SQ4435EY Vishay P-MOS, -30V, high current, SO-8
AO4407A Alpha & Omega P-MOS, -30V, -12A, SO-8
