IRLML0030TRPBF

IRLML0030TRPBF - 30V N-Channel StrongIRFET Small Signal MOSFET, 27 mΩ @ 10V; 40 mΩ @ 4.5V RDS(on), SOT-23

13121

Effective Inventory
Go to Inquiry

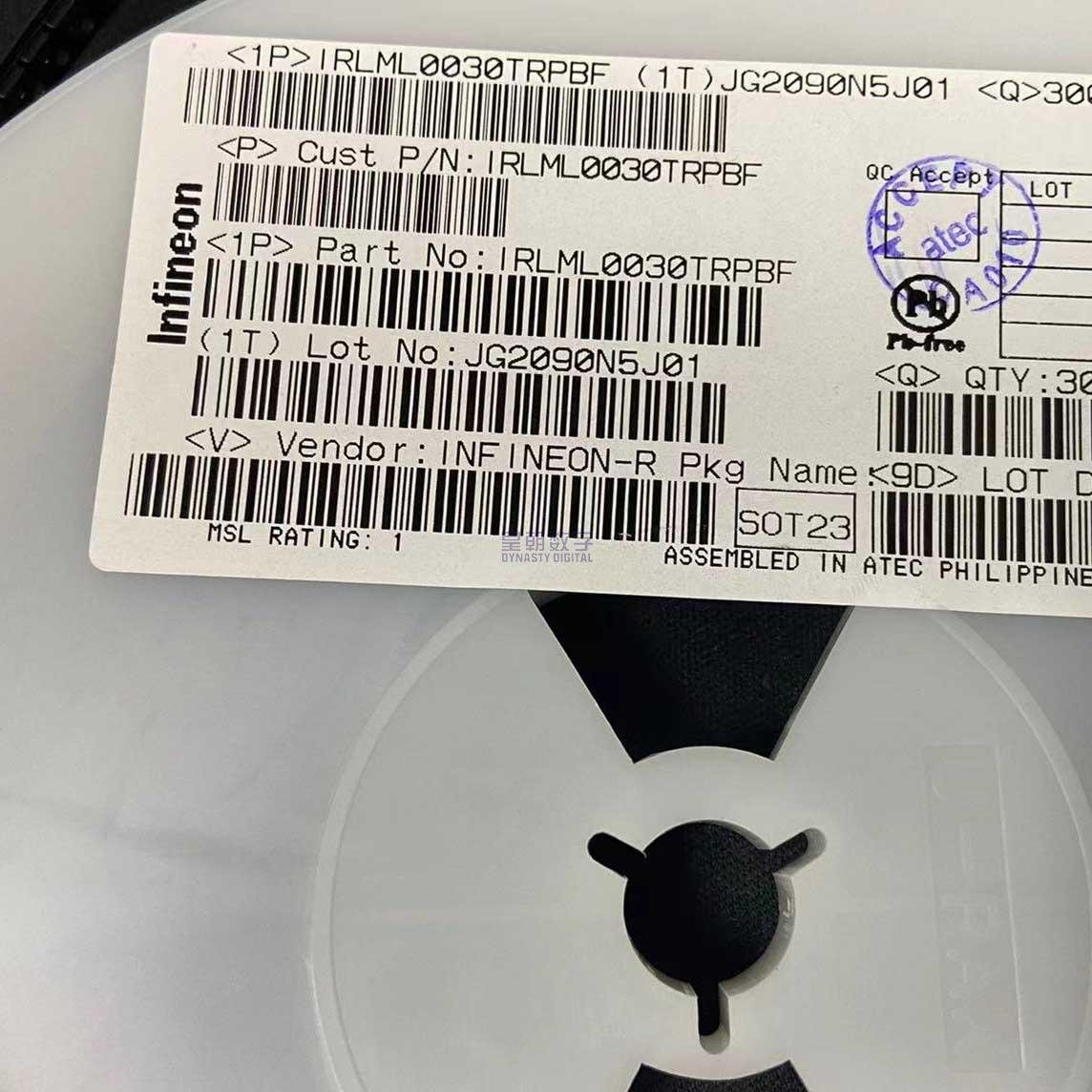

Image for reference only

Manufacturer Part：

IRLML0030TRPBF

Package：

SOT-23

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

IRFS4115TRLPBF

Description

Product Overview

The IRLML0030TRPBF is a 30V N-Channel StrongIRFET Small Signal MOSFET from Infineon Technologies (formerly International Rectifier), part of the StrongIRFET™ Small Power Logic Level product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRLML0030TRPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRLML0030TRPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a SOT-23 package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 30 V
Continuous Drain Current (ID @ 25°C) 5.3A
Pulsed Drain Current (IDM) —
On-Resistance (RDS(on) max @ VGS=10V) 27 mΩ @ 10V; 40 mΩ @ 4.5V
Gate Threshold Voltage (VGS(th)) 1.3 – 2.3 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg) 2.6 nC (typ) @ 4.5V
Power Dissipation (PD) 1.3 W
Operating Junction Temperature -55 to +150 °C
Package SOT-23

Features

  • 30 V drain-source voltage rating
  • Advanced StrongIRFET™ Small Power Logic Level
  • Logic level drive, standard SOT-23 pinout, JEDEC qualified
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • SOT-23 package

Applications

  • Data center power, intermediate bus converters, battery energy storage
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRLML0030TRPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ StrongIRFET™ Small Power Logic Level family. It features a drain-source voltage rating of 30 V and continuous drain current of 5.3A with a maximum on-resistance of 27 mΩ @ 10V; 40 mΩ @ 4.5V. Packaged in a SOT-23, this device is optimized for data center power, intermediate bus converters, battery energy storage. The IRLML0030TRPBF provides logic level drive, standard sot-23 pinout, jedec qualified, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRLML0030TRPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (1.3 – 2.3 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 27 mΩ @ 10V; 40 mΩ @ 4.5V. The StrongIRFET™ Small Power Logic Level cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 30 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • Data center power, intermediate bus converters, battery energy storage
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
