SIHG20N50C-E3

N-channel power MOSFET, 500V VDS, 20A ID, 0.27Ω RDS(on), 76nC Qg, TO-247AC, obsolete/EOL

7230

Effective Inventory
Go to Inquiry

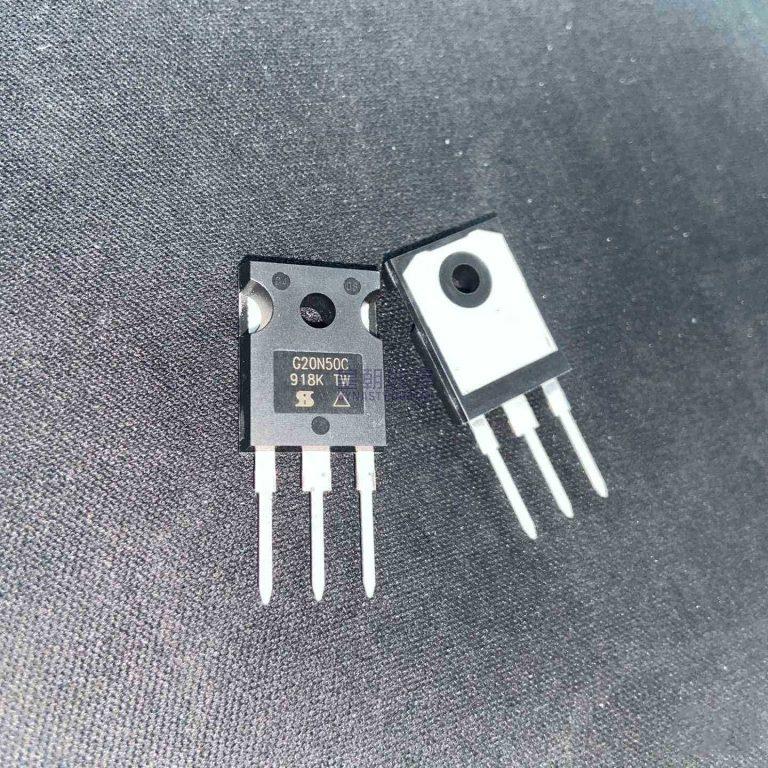

Image for reference only

Manufacturer Part：

SIHG20N50C-E3

Package：

TO-247AC (Through Hole)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STD25NF10T4

SQ4401EY-T1-GE3

SI2309CDS-T1-GE3

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

Description

Product Overview

The SIHG20N50C-E3 is an N-channel power MOSFET from Vishay Siliconix, featuring a 500V drain-source voltage rating and 20A continuous drain current capability in a TO-247AC through-hole package. This device utilizes advanced Trench technology to achieve low on-resistance (0.27Ω max at VGS=10V) and low gate charge (76nC max), providing an excellent figure-of-merit (FOM) for high-voltage switching applications. The E3 suffix indicates a lead-free, RoHS-compliant device. Note: This product has been marked as obsolete (EOL) by the manufacturer.

Key Specifications

Manufacturer Vishay Siliconix
Product Category N-Channel Power MOSFET
Drain-Source Voltage (VDS) 500 V
Gate-Source Voltage (VGS) ±30 V
Continuous Drain Current (TC=25°C) 20 A
Continuous Drain Current (TC=100°C) 11 A
Pulsed Drain Current 80 A
RDS(on) @ VGS=10V 0.225Ω (typ), 0.270Ω (max)
Gate-Source Threshold Voltage 3.0V (min), 5.0V (max)
Total Gate Charge (Qg) 76 nC (max)
Gate-Source Charge (Qgs) 21 nC (typ)
Input Capacitance (Ciss) 2451 pF (typ), 2942 pF (max)
Single Pulse Avalanche Energy 361 mJ
Power Dissipation (TC=25°C) 250 W
Junction Temperature Range -55°C to +150°C
Package TO-247AC (Through Hole)
Product Status Obsolete / EOL

Features

  • N-Channel, 500V power MOSFET
  • Low figure-of-merit: RDS(on) x Qg
  • Low on-resistance: 0.225Ω typical at VGS=10V
  • 100% avalanche tested
  • High peak current capability: 80A pulsed
  • dv/dt ruggedness
  • Improved Trr/Qrr (body diode recovery)
  • Improved gate charge characteristics
  • High power dissipation: 250W
  • RoHS compliant and halogen free
  • TO-247AC through-hole package
  • Wide operating temperature: -55°C to +150°C

Applications

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Power factor correction (PFC)
  • Motor control and drives
  • Inverter circuits
  • Lighting ballasts
  • Solar inverters
  • Industrial power systems

The SIHG20N50C-E3 is a high-voltage N-channel enhancement mode power MOSFET from Vishay Siliconix, designed for demanding switching power applications. With a 500V drain-source rating and 20A continuous drain current capability, this device is well-suited for medium-power applications including switch-mode power supplies, motor drives, inverters, and power factor correction circuits. The advanced Trench technology used in this MOSFET provides an excellent balance between low on-resistance (0.225Ω typical) and low gate charge (76nC max), resulting in a low figure-of-merit (FOM) that translates to high efficiency in switching applications. The device features a robust body diode with improved reverse recovery characteristics, 100% avalanche testing, and high dv/dt ruggedness for reliable operation in demanding circuits. Packaged in the industry-standard TO-247AC through-hole package with rated power dissipation of 250W, it offers excellent thermal performance for high-power applications. Please note that Vishay has designated this product as obsolete (EOL – End of Life), and it is no longer in active production. While existing stock may still be available through various channels, new designs should consider current production alternatives.

The SIHG20N50C is an N-channel enhancement-mode MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) that operates by using an electric field to control the conductivity of a channel between the source and drain terminals. When a positive voltage greater than the threshold voltage (VGS(th) = 3-5V) is applied to the gate relative to the source, an inversion layer (N-type channel) is formed in the P-type body region beneath the gate oxide, allowing current to flow between the drain and source. The Trench technology used in this device features vertical trench gates that increase the channel density, reducing on-resistance per unit area compared to planar MOSFET structures. The device is enhancement-mode, meaning it is normally OFF (non-conducting) when VGS = 0V. The body diode (also called the parasitic diode or intrinsic diode) is formed by the P-body/N-drain junction and can conduct in the reverse direction; in this device, the body diode has improved reverse recovery time (Trr) and charge (Qrr) for better performance in hard-switching and synchronous rectification applications. The gate structure is insulated by a thin silicon dioxide layer, providing very high input impedance and requiring negligible steady-state gate drive current.

Pin Number Pin Name Description
1 Gate (G) Gate Terminal – Controls MOSFET conduction
2 Drain (D) Drain Terminal – Connected to tab/heatsink
3 Source (S) Source Terminal – Current flows out of source for N-channel

Note: TO-247AC package. Pin 2 (Drain) is connected to the metal tab/heatsink plate. Standard pinout for TO-247 MOSFETs.

  • Switch-mode power supplies (SMPS) and DC-DC converters
  • Power factor correction (PFC) circuits
  • Motor control and variable frequency drives
  • DC-AC inverter circuits
  • Lighting ballasts and LED drivers
  • Solar photovoltaic inverters
  • Industrial power supply systems
  • Uninterruptible power supplies (UPS)
Model Manufacturer Description
IRFP460PBF Infineon (Vishay) 500V, 20A, TO-247, MFR recommended substitute
IPW50R250CPF Infineon CoolMOS, 500V, 34A, 0.25Ω
IXFH22N50P IXYS 500V, 22A, TO-247
FCH47N60 ON Semiconductor 600V, 47A, TO-247
STD20NM50 STMicroelectronics 500V, 20A, TO-220/D2PAK
