IRLR2905TRPBF

IRLR2905TRPBF - 55V N-Channel HEXFET Power MOSFET (Logic Level), 27 mΩ (typ) @ 10V; 40 mΩ (typ) @ 4.5V RDS(on), DPAK (TO-252)

6173

Effective Inventory
Go to Inquiry

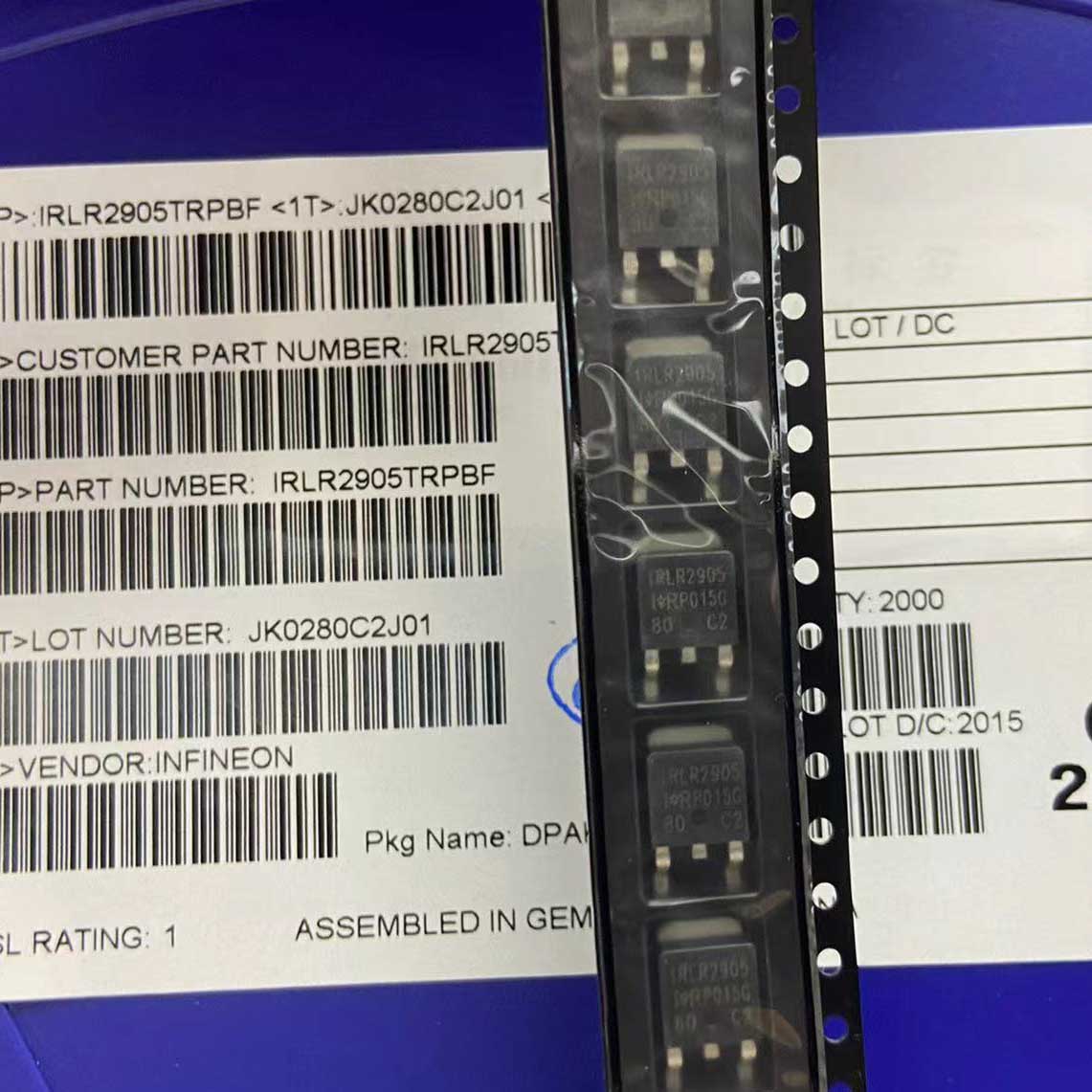

Image for reference only

Manufacturer Part：

IRLR2905TRPBF

Package：

DPAK (TO-252)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

IRFS4115TRLPBF

Description

Product Overview

The IRLR2905TRPBF is a 55V N-Channel HEXFET Power MOSFET (Logic Level) from Infineon Technologies (formerly International Rectifier), part of the IR MOSFET Planar Technology product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRLR2905TRPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRLR2905TRPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a DPAK (TO-252) package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 55 V
Continuous Drain Current (ID @ 25°C) 42A
Pulsed Drain Current (IDM) —
On-Resistance (RDS(on) max @ VGS=10V) 27 mΩ (typ) @ 10V; 40 mΩ (typ) @ 4.5V
Gate Threshold Voltage (VGS(th)) 1.0 – 2.0 V
Gate-Source Voltage (VGS) ±16 V
Total Gate Charge (Qg) 23 nC (typ) @ 4.5V
Power Dissipation (PD) 69 W
Operating Junction Temperature -55 to +175 °C
Package DPAK (TO-252)

Features

  • 55 V drain-source voltage rating
  • Advanced IR MOSFET Planar Technology
  • Planar cell structure for wide SOA, JEDEC qualified
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • DPAK (TO-252) package

Applications

  • DC motors, inverters, SMPS, lighting, load switches
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRLR2905TRPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ IR MOSFET Planar Technology family. It features a drain-source voltage rating of 55 V and continuous drain current of 42A with a maximum on-resistance of 27 mΩ (typ) @ 10V; 40 mΩ (typ) @ 4.5V. Packaged in a DPAK (TO-252), this device is optimized for dc motors, inverters, smps, lighting, load switches. The IRLR2905TRPBF provides planar cell structure for wide soa, jedec qualified, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRLR2905TRPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (1.0 – 2.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 27 mΩ (typ) @ 10V; 40 mΩ (typ) @ 4.5V. The IR MOSFET Planar Technology cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 55 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • DC motors, inverters, SMPS, lighting, load switches
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
