RNR55C

High reliability precision metal film resistor, MIL-PRF-55182, 0.1W, ±50 ppm/°C, -55°C to 175°C, axial hermetic

2333

Effective Inventory
Go to Inquiry

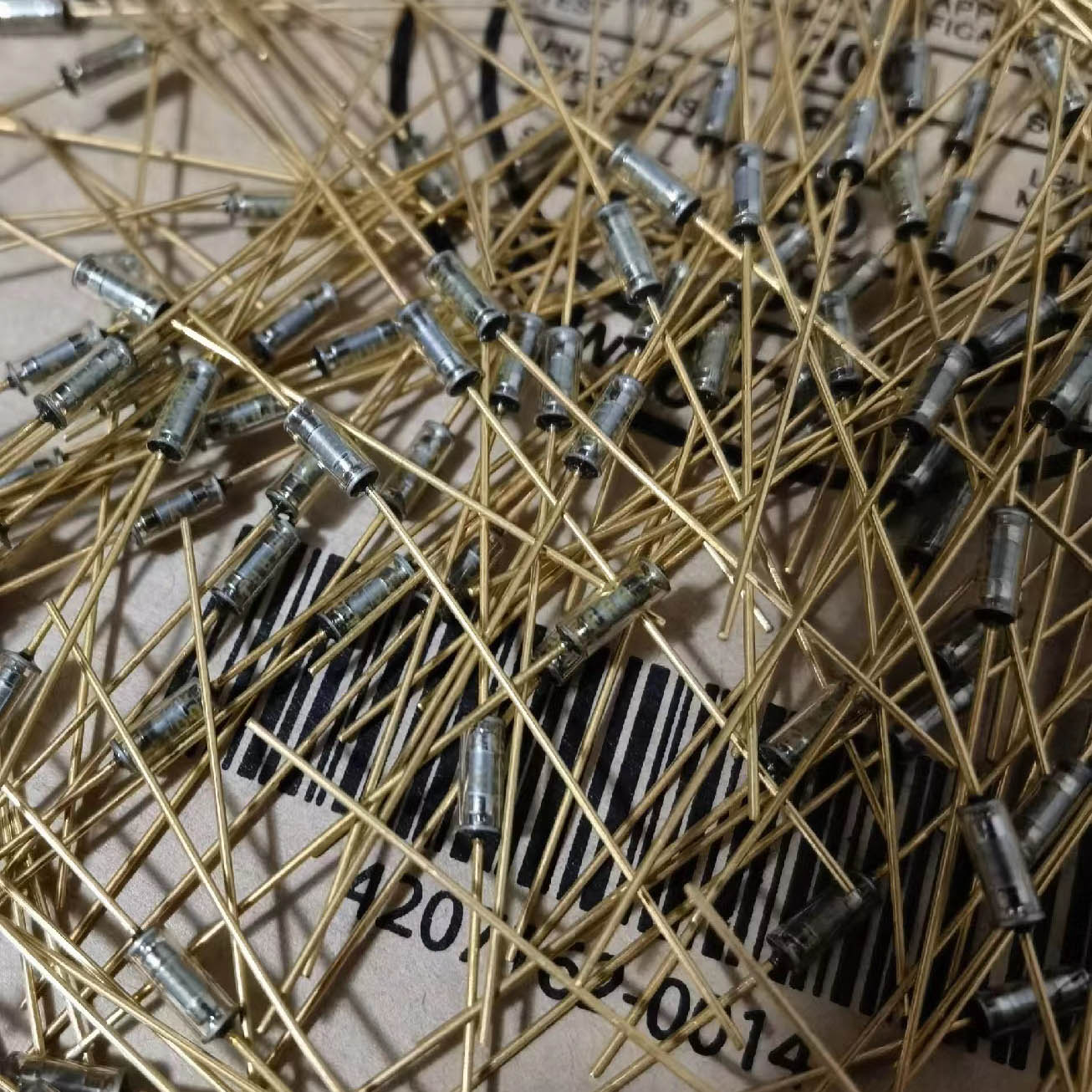

Image for reference only

Manufacturer Part：

RNR55C

Package：

Axial Leaded (Through Hole)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STD25NF10T4

SQ4401EY-T1-GE3

SIHG20N50C-E3

SI2309CDS-T1-GE3

OSC5A2B04

OSC5A2B03

OSC12A2B17

OC3SC25

Description

Product Overview

The RNR55C is a high reliability precision metal film resistor from Vishay Angstrohm, designed to meet MIL-PRF-55182 military specifications. This hermetically sealed axial leaded resistor offers excellent stability, precision tolerance options, and reliable performance over a wide temperature range. The RNR series features hermetic enclosure (designated by ‘C’ temperature coefficient code indicating ±50 ppm/°C) and is ideal for applications requiring high reliability and stable performance in harsh environments.

Key Specifications

Manufacturer Vishay Intertechnology
Product Category Precision Metal Film Resistor
Series RNR (MIL-PRF-55182)
Power Rating 0.1W @ 125°C, 0.125W @ 70°C
Resistance Range 10Ω to 179kΩ (F tolerance)
Tolerance Options ±0.1%, ±0.25%, ±0.5%, ±1%
Temperature Coefficient (C code) ±50 ppm/°C
Maximum Working Voltage 200V
Maximum Overload Voltage 400V
Operating Temperature Range -55°C to +175°C
Package Style Axial Leaded, Through Hole
Reference Standard MIL-PRF-55182
Hermetic Seal Yes (RNR series)

Features

  • High reliability precision metal film technology
  • Hermetically sealed enclosure (RNR series)
  • Meets MIL-PRF-55182 military specifications
  • Wide resistance range: 10Ω to 179kΩ
  • Multiple tolerance options: ±0.1% to ±1%
  • Low temperature coefficient: ±50 ppm/°C (C code)
  • Wide operating temperature: -55°C to +175°C
  • Excellent long-term stability
  • High voltage rating: 200V working, 400V overload
  • Solderable terminal type (RNR = Solderable)
  • Moisture resistant hermetic construction

Applications

  • Military and aerospace electronics
  • Precision instrumentation and measurement
  • Industrial control systems
  • Medical equipment
  • Telecommunications
  • High reliability power supplies
  • Automotive electronics
  • Test and measurement equipment

The RNR55C series from Vishay Angstrohm represents a line of high reliability precision metal film resistors manufactured to meet the stringent requirements of MIL-PRF-55182 military specifications. These hermetically sealed axial leaded resistors are designed for applications where stability, precision, and reliability under harsh environmental conditions are paramount. The ‘RNR’ designation indicates solderable terminals with hermetic enclosure, while ’55’ denotes the power rating size (0.1W at 125°C), and ‘C’ indicates the temperature coefficient grade of ±50 ppm/°C. The resistors feature excellent load life stability, high temperature cycling performance, and superior moisture resistance thanks to their hermetic construction. Available in multiple tolerance grades from ±0.1% to ±1%, the RNR55C series is suitable for a wide range of precision applications including military electronics, aerospace systems, industrial controls, and medical equipment where reliability cannot be compromised.

The RNR55C resistor utilizes precision metal film technology where a thin layer of resistive metal alloy is deposited onto a high-grade ceramic rod substrate. The resistance value is precisely controlled by laser trimming or spiral cutting of the metal film. The hermetically sealed construction encapsulates the resistive element in a sealed enclosure, protecting it from moisture, contaminants, and environmental stress. This hermetic seal ensures long-term stability and consistent performance even in humid or corrosive environments. The metal film composition is carefully selected to provide low temperature coefficient of resistance (TCR) and low noise characteristics. Termination is achieved through solderable axial leads that provide reliable through-hole mounting and excellent solderability. The ‘C’ temperature coefficient designation indicates a TCR of ±50 ppm/°C, ensuring minimal resistance change over the operating temperature range of -55°C to +175°C.

Terminal Description
Lead 1 Axial lead (non-polarized) – solderable terminal
Lead 2 Axial lead (non-polarized) – solderable terminal

Note: Resistors are non-polarized components; either lead can be connected to either side of the circuit.

  • Military and defense electronics systems
  • Aerospace and avionics equipment
  • Precision measurement and test instruments
  • Industrial control and automation systems
  • Medical devices and diagnostic equipment
  • Telecommunications infrastructure
  • High reliability power supply circuits
  • Automotive electronics (under-hood)
Model Manufacturer Description
RN55D Vishay Commercial grade metal film resistor, 0.125W
RNR55E Vishay Hermetic resistor, ±25 ppm/°C TCR
RNR60C Vishay Higher power version, 0.25W rating
MRS25 Yageo Surface mount precision resistor alternative
RN60C Stackpole Through hole metal film resistor
