Home > Integrated Circuits ICs > 10CL120YF780C8G

10CL120YF780C8G

Cyclone 10 LP FPGA, 119,088 LEs, M9K RAM, 18x18 multipliers, low-power cost-optimized

10141

Effective Inventory
Go to Inquiry

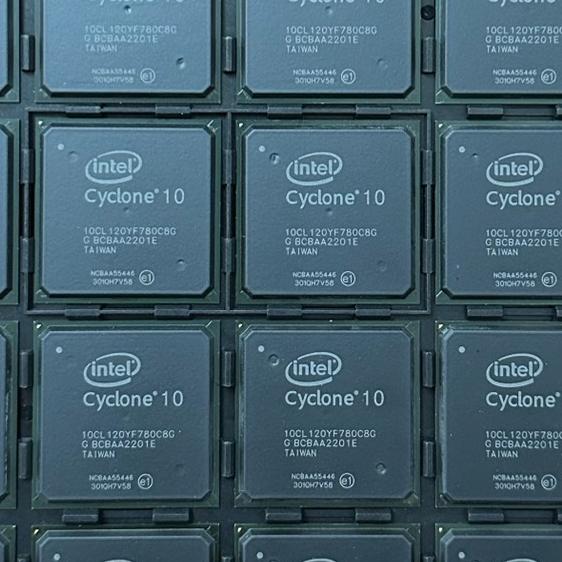

Image for reference only

Manufacturer Part：

10CL120YF780C8G

Package：

780-pin FBGA

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

DLPA3000DPFDR

DLPC3432CZVB

DLPC3437CZEZ

DLPC6540ZDC

DLPC3430CZVBR

DLP230GPAFQP

DLP471TPFQQ

1191-413BC

Description

Product Overview

10CL120YF780C8G is an Intel Cyclone 10 LP 10CL120 FPGA, 120K LEs, 780-pin FBGA, commercial grade.

Key Specifications

Type Cyclone 10 LP FPGA
Logic Elements 119,088 LEs
Embedded RAM 3,981,312 bits
Multipliers 576 (18×18)
Package 780-pin FBGA (F780)
Speed Grade C8
Series 10CL120

Features

  • 119K LE Cyclone 10 LP FPGA
  • 3.98M bits embedded M9K RAM
  • 576 embedded 18×18 multipliers
  • Low-power cost-optimized

Applications

Refer to manufacturer datasheet for detailed application information and design guidelines.

10CL120YF780C8G is an Intel Cyclone 10 LP 10CL120 FPGA, 120K LEs, 780-pin FBGA, commercial grade.

The 10CL120YF780C8G is a Cyclone 10 LP FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.

Pin Group Name Description
I/O GPIO Banks Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS)
Power VCCIO, VCCINT, VCCPLL Core, I/O, and PLL supply voltages
Ground GND Ground reference
Config DATA, DCLK, nCSO JTAG/AS/AP configuration interface
Clock CLK, PLL Dedicated clock inputs and PLL feedback
Transceiver TX/RX (if applicable) High-speed serial transceiver lanes
  • Digital signal processing and filtering
  • Custom protocol implementation (UART, SPI, I2C, PCIe)
  • Video and image processing pipelines
  • Motor control and industrial automation
  • Prototyping and glue logic integration
Model Manufacturer Key Difference
XC7K325T Xilinx Kintex-7, 326K LE, Artix-class performance
ECP5-85 Lattice 84K LUT, low-cost mid-range alternative
iCE40HX8K Lattice 8K LUT, ultra-low-cost small form factor
