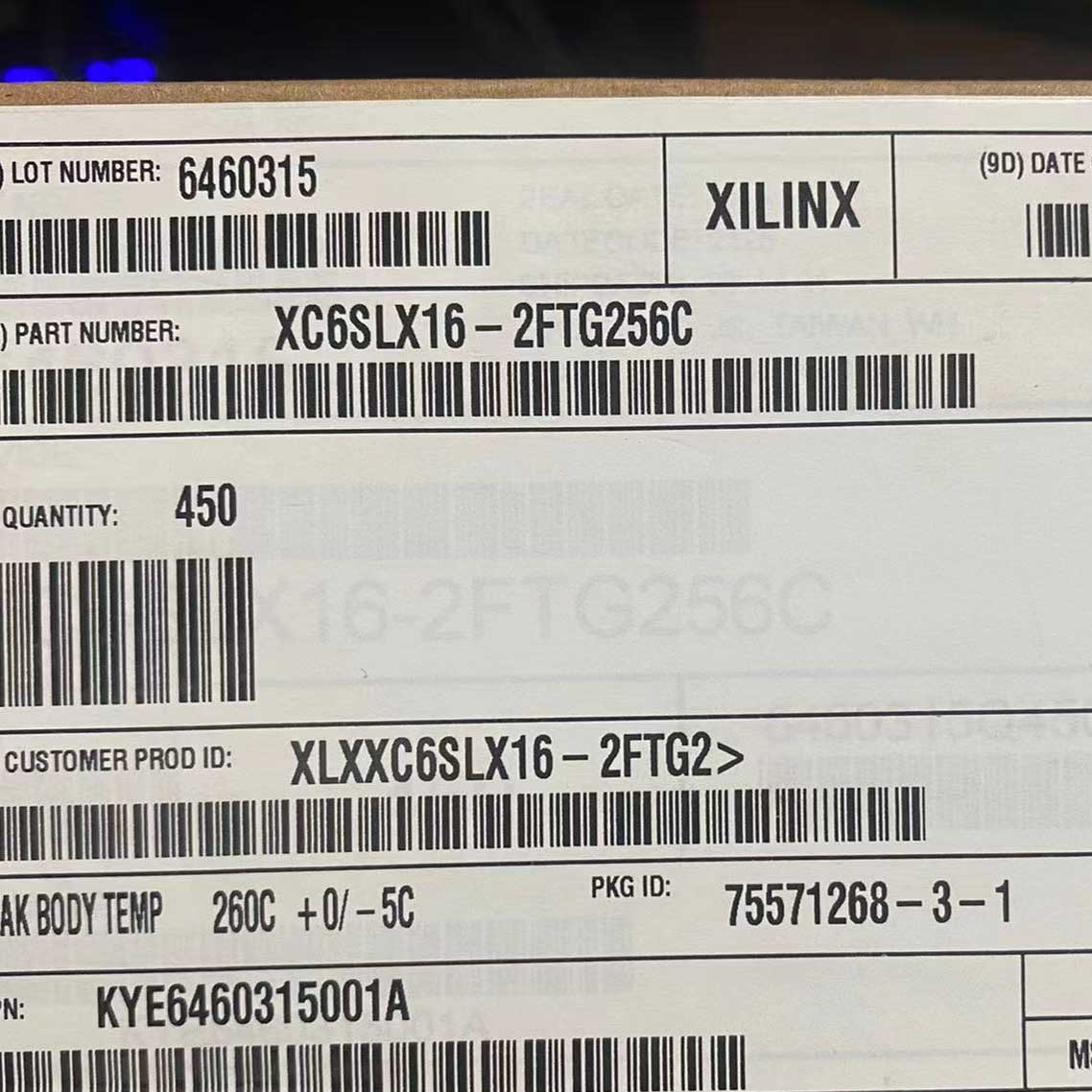

XC6SLX16-2FTG256C

The XC6SLX16-2FTG256C is a mid-density Spartan-6 LX FPGA from Xilinx (AMD), offering 14,579 logic cells in a 256-pin Fine-pitch Thin Ball Grid Array (FTBGA) package. Built on a mature 45nm low-power copper process technology, the Spartan-6 family provides the optimal balance of cost, performance, and power consumption for high-volume, cost-sensitive applications.

This device features the efficient dual-register 6-input LUT architecture that provides superior performance per logic cell compared to previous 4-input LUT architectures. With 2,278 CLB slices (approximately 25% SLICEM with memory/shift register capability, 75% SLICEL for general logic), 32 DSP48A1 slices for DSP acceleration, and 576Kb of block RAM, the XC6SLX16 can handle a wide range of applications from simple glue logic to complex signal processing.

Two Clock Management Tiles (CMTs), each containing two DCMs and one PLL, provide comprehensive clock synthesis and management including frequency multiplication/division, phase shifting, deskew, and duty cycle correction. Two integrated memory controller blocks (MCBs) offer dedicated high-performance DDR/DDR2/DDR3/LPDDR interfaces at data rates up to 800Mb/s, eliminating the need to consume FPGA logic for memory control.

The FTG256 package provides 186 user I/O pins distributed across four independent I/O banks. Each bank has its own Vcco supply, supporting I/O voltages from 1.2V to 3.3V and over 40 different I/O standards including LVCMOS, LVTTL, HSTL, SSTL, and LVDS differential signaling. The -2 speed grade offers high performance suitable for most commercial applications.

AMD has officially extended Spartan-6 product support through at least 2030, providing supply security for long-lifecycle programs in industrial, automotive, and medical markets.

The Spartan-6 XC6SLX16 is a field-programmable gate array that implements digital logic circuits through configurable logic blocks, routing resources, and I/O blocks. Here are the key architectural components:

1. Configurable Logic Blocks (CLBs): The primary logic resource, arranged in a regular array. Each CLB contains two slices. Each slice has four 6-input LUTs and eight flip-flops. SLICEM slices (25% of total) can implement distributed RAM or SRL shift registers in addition to combinational logic. The 6-input LUT provides a 50% increase in logic capacity per LUT compared to 4-input architectures.

2. Block RAM Columns: 32 dedicated 18Kb block RAMs arranged in columns alongside the CLB array. Each block can be configured as single-port, simple dual-port, or true dual-port memory with optional byte write enables. Blocks can be split into two independent 9Kb memories for increased flexibility. Cascading multiple blocks creates larger memory structures for data buffering, FIFOs, and line buffers.

3. DSP48A1 DSP Slices: 32 dedicated arithmetic blocks arranged in a column for efficient digital signal processing. Each DSP48A1 contains an 18×18-bit signed multiplier, a 48-bit accumulator, and a pre-adder. Pipelining registers support high clock frequency operation. DSP slices implement FIR filters, FFTs, correlators, and other DSP functions at much higher efficiency than logic-only implementations.

4. Clock Management Tiles (CMTs): Two CMT blocks provide flexible clock generation and management. Each CMT contains two DCMs and one PLL. DCMs provide precise clock deskew, frequency synthesis, phase shifting, and duty cycle correction. PLLs offer low-jitter clock multiplication and phase alignment. Sixteen global clock networks distribute clocks with minimal skew.

5. Memory Controller Blocks (MCBs): Two hard IP memory controllers provide dedicated, high-performance interfaces to external DRAM. Supporting DDR, DDR2, DDR3, and LPDDR at data rates up to 800Mb/s, the MCBs include multi-port FIFO architectures that simplify timing closure.

6. SelectIO I/O Banks: Four I/O banks surround the FPGA fabric, each with independent Vcco power supply. I/O blocks can be configured for single-ended or differential operation, with programmable termination, drive strength (up to 24mA per pin), and slew rate control. LVDS pairs support up to 1,080 Mb/s.

7. Configuration: At power-up, the FPGA loads a configuration bitstream from external memory (SPI Flash, NOR Flash, or JTAG) that programs all internal resources. Advanced features like MultiBoot allow remote field updates with watchdog-based fallback to a golden image.

Package: FTG256 – Fine-pitch Thin Ball Grid Array, 256 balls. Package dimensions: 17mm x 17mm body. Ball pitch: 1.0mm. Ball array: approximately 16×16 grid. 4 I/O banks. RoHS compliant, lead-free. Commercial grade: 0 degC to +85 degC.

• Industrial PLC and I/O Controllers: Programmable logic controllers, remote I/O modules, and industrial fieldbus interfaces, where the FPGA’s flexibility enables custom interface protocols, real-time processing, and integration of multiple functions (logic, DSP, memory, I/O) in a single chip.
• Automotive Infotainment: Display controllers, video scaling engines, camera interfaces, and audio processing in automotive head units and digital instrument clusters, leveraging Spartan-6’s cost optimization, long lifecycle support (through 2030), and video processing capabilities.
• Video and Display Processing: LCD/OLED display controllers, video scalers, deinterlacers, and overlay engines for digital signage, surveillance DVRs, and industrial displays, using block RAM for frame/line buffers and DSP slices for pixel processing.
• Interface Bridging and Protocol Conversion: High-speed interface bridges including LVDS to parallel, MIPI to LVCMOS, and multi-protocol communication adapters, where the 186 I/O pins and 4 independent I/O banks provide flexibility for interfacing disparate voltage domains and protocols.
• Motor Control and Drive Systems: FPGA-based servo drives, stepper motor controllers, and multi-axis motion controllers, where DSP slices implement current control loops, while logic resources generate precise PWM waveforms and handle encoder interface processing.
• Data Acquisition and Instrumentation: Multi-channel high-speed data acquisition systems, oscilloscopes, and test instrumentation, where memory controllers buffer acquired data, DSP slices perform real-time digital filtering and FFT, and SelectIO technology interfaces with high-speed ADCs and DACs.
• Medical Electronics: Patient monitoring, diagnostic imaging front-ends, and laboratory equipment requiring real-time signal processing and flexible I/O, with the FPGA providing hardware acceleration for DSP functions and high-speed data path management.
• Consumer Electronics: Set-top boxes, digital TVs, gaming accessories, and smart home hubs, where Spartan-6’s cost-optimized architecture enables adding hardware acceleration for video processing and connectivity interfaces at low incremental BOM cost.
