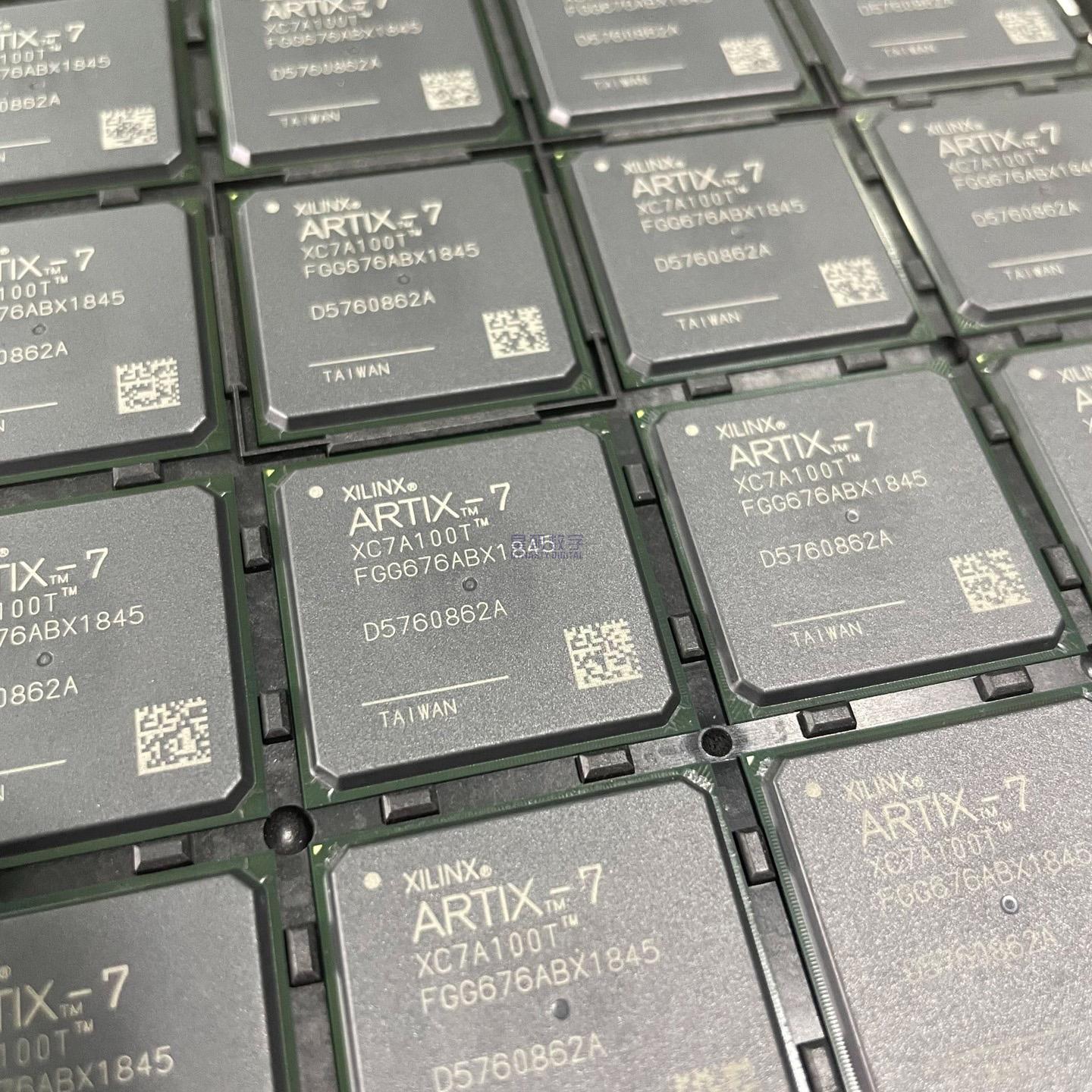

XC7A100T-FGG676

The XC7A100T-FGG676 is a mid-high density Artix-7 FPGA from Xilinx (AMD), delivering approximately 101,440 logic cells, 240 DSP slices, and 4.86Mb of block RAM in a 676-ball Fine-pitch BGA package. Built on TSMC’s 28nm high-k metal gate (HKMG) process technology, the Artix-7 family represents a significant leap from Spartan-6 in performance, integration, and power efficiency, while maintaining cost-optimized positioning.

At the core of the Artix-7 architecture is the 6-input LUT with dual flip-flops, organized into CLB slices similar to Spartan-6 but with improved routing and performance. The XC7A100T provides 15,850 CLB slices with 126,800 flip-flops, supporting both combinational logic and highly pipelined designs. Approximately half of the slices are SLICEMs capable of distributed RAM and SRL shift registers.

DSP performance is substantially enhanced with 240 DSP48E1 slices. Each DSP48E1 contains a 25×18-bit two’s complement multiplier, a 48-bit accumulator, a pre-adder, and optional pipelining stages. This enables efficient implementation of FIR filters, FFTs, matrix operations, and other DSP functions at frequencies exceeding 450MHz in the -2 speed grade.

High-speed serial connectivity is provided by up to 8 GTX transceivers operating at up to 6.6 Gb/s per channel. These transceivers support popular serial protocols including PCI Express (via dedicated endpoint block), Gigabit Ethernet, SATA, CPRI, Aurora, and more. An integrated PCIe Gen2 x4 endpoint block and dual Ethernet MACs further reduce system-level BOM cost.

The FGG676 package provides up to 500 user I/O pins across 8 banks – including both high-performance (HP) and high-range (HR) I/O banks. HP banks support higher performance with lower voltage standards, while HR banks support wider voltage ranges including 3.3V. The 27x27mm footprint with 1.0mm ball pitch offers an excellent balance between I/O count and PCB design complexity.

The Artix-7 XC7A100T is a 28nm FPGA implementing digital circuits through configurable logic, programmable routing, serial transceivers, and hardened IP blocks. Key architectural components:

1. Configurable Logic Blocks (CLBs): 15,850 slices organized in columns and rows. Each slice contains four 6-input LUTs and eight flip-flops. SLICEM slices (approximately 50%) support distributed RAM (64-bit per LUT) and SRL32 shift registers. Routing uses a hierarchical interconnect structure optimized for both short and long routes, minimizing delay and power consumption.

2. Block RAM (BRAM): 135 dedicated 36Kb block RAMs arranged in columns. Each can be configured as a 36Kb true dual-port RAM or split into two independent 18Kb RAMs. Built-in FIFO logic and byte write enable simplify memory interface design. Total BRAM: 4,860Kb. Cascading creates deep buffers for video line stores, packet buffers, and large FIFOs.

3. DSP48E1 Slices: 240 DSP slices in a dedicated column. Each contains a 25×18-bit signed multiplier, 48-bit accumulator, pre-adder, and optional pipeline registers. Supports operations at 450 MHz+ in -2 speed grade. Cascading enables wider arithmetic operations. Key applications: FIR/IIR filters, FFT, digital up/down conversion, matrix math, and arithmetic accelerators.

4. Clock Management: Six Clock Management Tiles (CMTs), each containing one Mixed-Mode Clock Manager (MMCM) and one Phase-Locked Loop (PLL). MMCMs provide precise frequency synthesis (fractional-N), phase shifting, deskew, and duty cycle correction with very low jitter. PLLs offer additional clock multiplication/division options. Global clock networks distribute clocks with minimal skew across the device.

5. GTX Transceivers: Up to 8 high-speed serial transceivers, each operating at data rates from ~500 Mb/s up to 6.6 Gb/s. Each transceiver includes a PCS (Physical Coding Sublayer) and PMA (Physical Media Attachment) with CDR (Clock and Data Recovery). Supports multiple protocols: PCIe, GigE, SATA, CPRI, Aurora, Serial RapidIO, and custom protocols.

6. PCI Express Block: A dedicated PCIe endpoint block supporting Gen2 (5.0 Gb/s) up to x4 lane width. Includes the physical layer, data link layer, and transaction layer, significantly reducing FPGA logic utilization compared to a soft implementation.

7. Ethernet MACs: Two tri-mode Ethernet MAC blocks supporting 10/100/1000 Mbps and 2.5 Gbps. Interfaces include GMII, RGMII, and SGMII. Reduces logic usage and simplifies Ethernet design.

8. Memory Interface Generator (MIG): Hardened memory controller blocks supporting DDR3, DDR3L, and LPDDR2 at data rates up to 800 Mb/s. The MIG includes PHY and controller logic, delivering high memory bandwidth with minimal design effort.

Package: FGG676 – Fine-pitch Ball Grid Array, 676 balls. Body dimensions: 27mm x 27mm. Ball pitch: 1.0mm. Ball array: approximately 26×26 grid. 8 I/O banks (mix of HP and HR). RoHS compliant, lead-free solder balls. FGG = Fine-pitch, Wire-bond, Green (Pb-free).

• Software-Defined Radio (SDR): SDR transceivers, baseband processors, and cognitive radio systems where 240 DSP slices provide ample FIR filter and FFT processing power, 8 GTX transceivers handle high-speed JESD204B/C ADC/DAC interfaces, and the integrated Ethernet MACs support network connectivity.
• Medical Imaging and Diagnostics: Ultrasound beamforming, CT reconstruction acceleration, digital X-ray, and MRI front-ends requiring massive DSP computation, high-speed serial data links, and large on-chip memory for data buffering and processing pipelines.
• Industrial Automation and Control: High-end motion controllers, multi-axis CNC systems, industrial vision inspection, and factory automation requiring real-time processing, multiple high-speed interfaces (EtherCAT, PROFINET), and integration of control logic, comms, and I/O in a single chip.
• Video Processing and Broadcast: Professional video scalers, format converters, multi-view processors, and broadcast routing equipment where DSP slices + BRAM enable multiple video pipelines, and GTX transceivers provide SDI/HDMI 2.0 connectivity.
• High-Speed Test and Measurement: High-speed oscilloscopes, logic analyzers, protocol analyzers, and ATE systems requiring high I/O count for probe channels, GTX transceivers for high-speed serial analysis, and DSP for real-time signal processing and trigger functions.
• Aerospace and Defense: Avionics processing, radar front-ends, electronic warfare systems, and secure communications where the 28nm process provides high performance at lower power, and AES encryption + Device DNA provide design security. Long lifecycle support meets defense program requirements.
• Automotive ADAS: Advanced driver assistance systems including surround-view processing, sensor fusion (camera + radar + LiDAR), and autonomous driving compute platforms requiring video processing, DSP acceleration, and multiple high-speed interfaces to sensor modules.
• Networking and Data Center Acceleration: Smart NICs, network security appliances, and data center acceleration cards where the PCIe Gen2 x4 interface connects to host CPUs, GTX transceivers handle network ports, and DSP slices provide packet processing and encryption acceleration.
