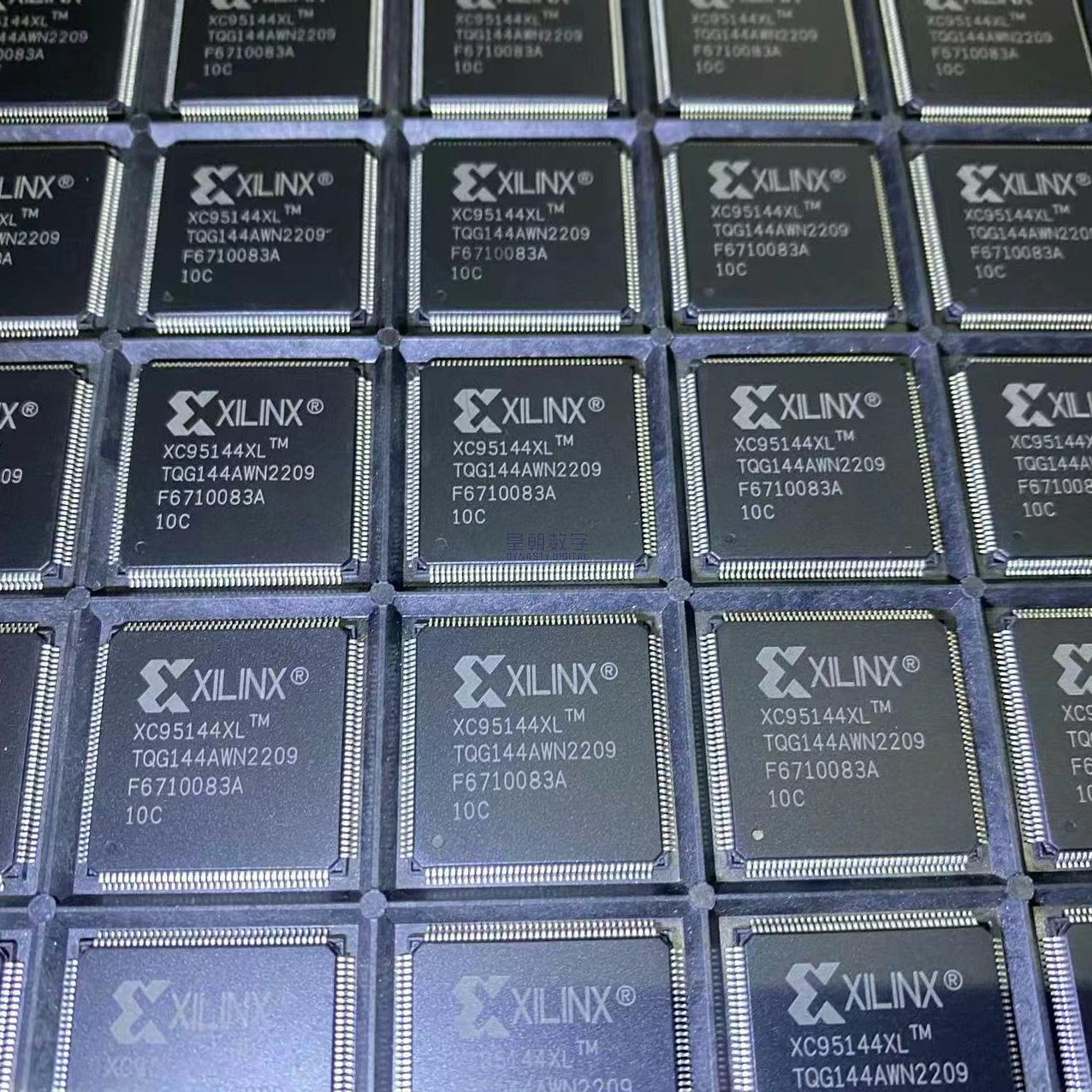

XC95144XL-TQG144AW

The XC95144XL-TQG144AW is a 144-macrocell CPLD from Xilinx’s XC9500XL family, offering high-performance 3.3V operation in a 144-pin Thin QFP package. The -AW suffix denotes extended/automotive grade temperature operation (-40 degC to +125 degC), making this device suitable for demanding automotive and high-temperature industrial applications.

Built on Xilinx’s proven FastFLASH CMOS technology (0.35 micron feature size), the XC95144XL delivers 5 ns pin-to-pin logic delays with system frequencies up to 178 MHz. The device contains 144 macrocells providing approximately 3,200 usable gates, organized in eight Function Blocks (FBs) interconnected by the FastCONNECT II switch matrix. Each FB has 54 inputs and 18 macrocells (in the XC95144XL configuration), with up to 90 product terms available per macrocell through an intelligent product term allocator.

A key advantage of the XC9500XL architecture is superior pin-locking capability. Because of the wide 54-input Function Blocks and flexible product term allocation, design changes typically do not affect pin assignments, eliminating the need for costly PCB rework. This is especially valuable for long-lifecycle programs where logic updates may be required after production has started.

The TQFP-144 package provides 117 user I/O pins, the maximum I/O count available for the XC95144XL device. I/Os support 5V tolerance on inputs, enabling seamless interfacing with legacy 5V systems, while outputs operate at either 3.3V or 2.5V levels. All outputs feature individually programmable slew rate control for managing signal integrity and electromagnetic interference.

In-system programming (ISP) via the standard JTAG interface allows device programming after the CPLD is soldered to the board, enabling field upgrades and manufacturing test flexibility. The device supports 10,000+ program/erase cycles with 20-year data retention, ensuring reliable operation over the product lifetime. The XC95144XL is pin-compatible with the 5V-core XC95144 device in common packages, simplifying migration from 5V to 3.3V designs.

The XC95144XL is a Complex Programmable Logic Device (CPLD) based on Flash EEPROM technology. Here is how its architecture works:

1. Function Blocks (FBs): The device is divided into eight Function Blocks, each containing 18 macrocells and associated product term arrays. Each FB has 54 inputs coming from the FastCONNECT II switch matrix. The wide input structure (54 inputs per FB) reduces the need for inter-block routing, which is a key factor in maintaining consistent pin-to-pin delays and achieving excellent pin-locking performance.

2. Macrocell Architecture: Each macrocell consists of:
– A sum-of-products (AND-OR) logic structure with five direct product terms
– A product term allocator that can reassign up to 90 product terms from other macrocells in the same FB to a single macrocell requiring more logic
– A programmable flip-flop/latch with individual clock, set, and reset controls
– An output enable multiplexer (global OE or product-term OE)
– Output polarity control (inverting or non-inverting)
The flip-flop can be configured as D-type, T-type, JK, or SR, or bypassed for combinatorial outputs.

3. FastCONNECT II Switch Matrix: This is the central routing resource that connects all I/O blocks and Function Block outputs to the Function Block inputs. It provides fully predictable, uniform routing delays regardless of which pins are used. This deterministic timing model simplifies timing analysis and ensures that performance does not degrade with design changes (pin-locking guarantee).

4. I/O Blocks (IOBs): Each IOB connects the internal logic to the external package pin. Features include:
– Input buffer with hysteresis (Schmitt trigger) for improved noise immunity
– Output driver with programmable slew rate (fast or slow)
– Bus-hold circuitry (eliminates need for pull-up/pull-down resistors on unused inputs)
– Output enable control (from global OE pins or product-term logic)
– 5V tolerance on inputs (accepts 5V, 3.3V, and 2.5V signals)
– Output voltage determined by VCCIO (3.3V or 2.5V)

5. Global Signals: Three global clock pins (GCK1-3) provide low-skew clock distribution across the device. Four global output enable pins (GTS1-4) enable/disable output buffers. One global set/reset (GSR) pin can initialize all flip-flops. All global signals can also be driven by internal product-term logic.

6. JTAG / ISP: The JTAG interface (TCK, TMS, TDI, TDO) supports both boundary-scan testing per IEEE 1149.1 and in-system programming. Programming is done through the same JTAG port, eliminating the need for a separate programming interface. Fast concurrent programming allows the entire device to be programmed in seconds.

7. FastFLASH Technology: The configuration is stored in non-volatile Flash EEPROM cells distributed throughout the device. Unlike SRAM-based FPGAs, CPLDs do not require external configuration memory – they are live at power-up. The Flash cells are rated for 10,000+ program/erase cycles and 20-year data retention.

Package: TQG144 – 144-pin Thin Quad Flat Pack. Body dimensions: 22mm x 22mm. Lead pitch: 0.5mm. 4-sided gull-wing leads, 36 pins per side. Lead-free (TQ G = Thin QFP, Green/Pb-free). -AW = automotive/extended temperature grade. Operating temperature: -40 degC to +125 degC (Q-grade / ambient). MSL Level 3.

• Automotive Electronics and ADAS: Glue logic, interface bridging, and control functions in automotive systems including ADAS sensor interfaces, body control modules, and infotainment systems. The -AW automotive grade temperature rating (-40 degC to +125 degC) meets AEC-Q100 requirements for under-hood and cabin applications.
• Industrial Control and Factory Automation: Programmable logic controller I/O modules, sensor interfaces, and industrial network (PROFINET, EtherCAT) line cards requiring deterministic timing and reliable operation across extended temperature ranges. In-system programmability enables field firmware updates.
• Telecommunications and Networking: Line card interfaces, backplane bridging, and protocol conversion in telecom and networking equipment. Superior pin-locking ensures that design revisions do not require PCB changes, reducing development time and cost for platform-based products.
• High-Speed Address Decoding and Glue Logic: Complex glue logic replacement, address decoding, bus interfacing, and level shifting between different voltage domains. The 117 I/O pins + 144 macrocells provide sufficient resources to replace dozens of discrete logic devices, reducing BOM cost and board space.
• Power Supply Control and Sequencing: Power supply sequencing, monitoring, and control circuits for multi-rail systems including servers, telecom equipment, and industrial computers. Fast 5ns response time ensures rapid fault detection and protection. Flash-based configuration means power-up is instantaneous without configuration delay.
• Bus Bridging and Protocol Conversion: Bridging between different bus architectures (e.g., PCI to local bus, UART to SPI, etc.) and protocol translation between different interface standards. The wide 54-input function blocks handle complex combinational logic efficiently while maintaining pin-locked I/O.
• High-Speed Interconnect and Switching: Digital cross-point switches, port expanders, and signal routing applications where fast, deterministic switching between multiple signal paths is required. 178 MHz system frequency supports high-speed data paths with minimal latency.
• Field-Upgradeable System Logic: Products requiring in-the-field logic updates or feature upgrades after deployment. In-system programming via standard JTAG interface enables remote firmware updates without hardware modification, extending product lifecycle and enabling feature differentiation.
