Home > Integrated Circuits ICs > 10CX220YF780E5G

10CX220YF780E5G

Cyclone 10 GX FPGA, 220,000 LEs, 12.5Gbps transceivers, M9K/M20K RAM, eHPS

13585

Effective Inventory
Go to Inquiry

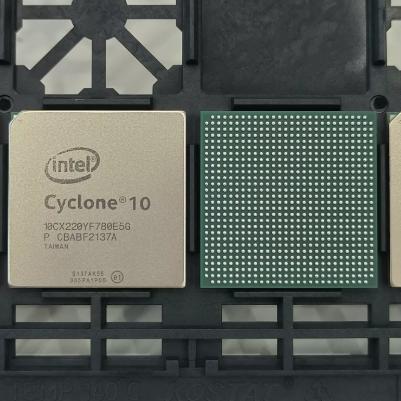

Image for reference only

Manufacturer Part：

10CX220YF780E5G

Package：

780-pin FBGA

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

10CX220YF780E5G is an Intel Cyclone 10 GX 10CX220 FPGA, 220K LEs, with 16 transceivers up to 12.5Gbps, extended temperature.

Key Specifications

Type Cyclone 10 GX FPGA
Logic Elements 220,000+ LEs
Embedded RAM 13,926,400 bits
Transceivers 16 (up to 12.5 Gbps)
Package 780-pin FBGA (F780)
Speed Grade E5 (extended)
Series 10CX220

Features

  • 220K LE Cyclone 10 GX FPGA
  • 16 integrated 12.5Gbps transceivers
  • 13.9M bits embedded M9K/M20K RAM
  • Extended industrial temperature

Applications

Refer to manufacturer datasheet for detailed application information and design guidelines.

10CX220YF780E5G is an Intel Cyclone 10 GX 10CX220 FPGA, 220K LEs, with 16 transceivers up to 12.5Gbps, extended temperature.

The 10CX220YF780E5G is a Cyclone 10 GX FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.

Pin Group Name Description
I/O GPIO Banks Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS)
Power VCCIO, VCCINT, VCCPLL Core, I/O, and PLL supply voltages
Ground GND Ground reference
Config DATA, DCLK, nCSO JTAG/AS/AP configuration interface
Clock CLK, PLL Dedicated clock inputs and PLL feedback
Transceiver TX/RX (if applicable) High-speed serial transceiver lanes
  • Digital signal processing and filtering
  • Custom protocol implementation (UART, SPI, I2C, PCIe)
  • Video and image processing pipelines
  • Motor control and industrial automation
  • Prototyping and glue logic integration
Model Manufacturer Key Difference
XC7K325T Xilinx Kintex-7, 326K LE, Artix-class performance
ECP5-85 Lattice 84K LUT, low-cost mid-range alternative
iCE40HX8K Lattice 8K LUT, ultra-low-cost small form factor
