AC0603JR-070RL

Chip Resistor, 0Ω (Zero Ohm Jumper), ±5%, 0603 (1608 Metric), 1/10W (100mW)

100000

Effective Inventory
Go to Inquiry

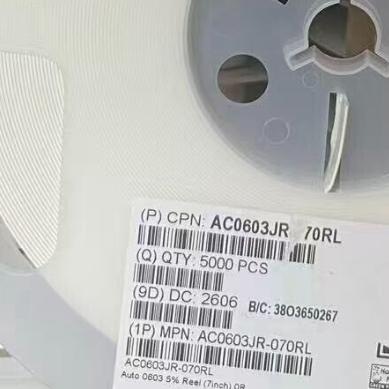

Image for reference only

Manufacturer Part：

AC0603JR-070RL

Package：

0603 (1608 Metric)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The AC0603JR-070RL is a thick film chip resistor from Yageo in 0603 (1608 Metric) package size. It features 0Ω (Zero Ohm Jumper) resistance with ±5% tolerance, rated at 1/10W (100mW) power dissipation. Suitable for general purpose and high-reliability applications including automotive, industrial, and consumer electronics.

Key Specifications

Type Thick Film Chip Resistor
Package 0603 (1608 Metric)
Resistance 0Ω (Zero Ohm Jumper)
Tolerance ±5%
Power Rating 1/10W (100mW)
TCR N/A
Max Voltage 75V
Temp Range -55°C ~ +155°C
Termination Matte Tin (Sn)

Features

  • 0603 (1608 Metric) case size
  • 0Ω (Zero Ohm Jumper) resistance value
  • ±5% tolerance
  • 1/10W (100mW) power rating
  • Thick film technology
  • RoHS compliant, lead-free
  • Suitable for reflow soldering
  • High reliability

Applications

  • General purpose SMD circuits
  • Consumer electronics
  • Industrial control
  • Automotive electronics (qualified variants)
  • Power supplies
  • Communication equipment

The AC0603JR-070RL is a thick film chip resistor from Yageo in 0603 (1608 Metric) package size. It features 0Ω (Zero Ohm Jumper) resistance with ±5% tolerance, rated at 1/10W (100mW) power dissipation. Suitable for general purpose and high-reliability applications including automotive, industrial, and consumer electronics.

Thick film chip resistors use a resistive paste printed on a ceramic (alumina) substrate. The resistance value is determined by the composition and dimensions of the film. Laser trimming adjusts the resistance to precise values during manufacturing. The resistive element is protected by a glass or epoxy overcoat, with solderable end terminations.

Parameter Value
Package Size 0603 (1608 Metric)
Resistance 0Ω (Zero Ohm Jumper)
Tolerance ±5%
Power Rating 1/10W (100mW)
Temperature Coefficient N/A
Operating Voltage 75V
  • General purpose SMD circuits
  • Consumer electronics
  • Industrial control
  • Automotive electronics (qualified variants)
  • Power supplies
  • Communication equipment
Manufacturer Series Description
Yageo RC/AC Series Standard chip resistors
Vishay CRCW Series Equivalent resistors
Panasonic ERJ Series Chip resistor alternatives
