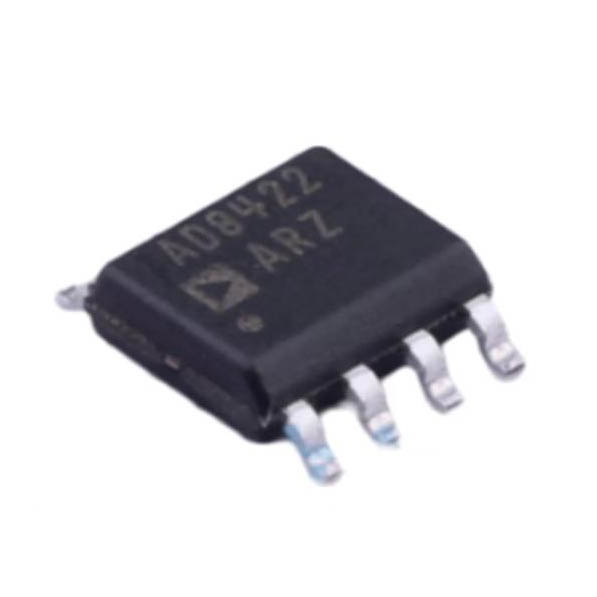

AD8422ARZ-R7

Precision rail-to-rail in-amp, 8nV/rtHz, 150dB CMRR, 330µA, 8-SOIC T&R

4977

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

AD8422ARZ-R7

Package：

8-SOIC_N (5.0 x 4.0mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The AD8422ARZ-R7 is a high precision, low power, rail-to-rail instrumentation amplifier from Analog Devices in 8-SOIC_N on tape & reel. It delivers 8nV/rtHz input noise, 150dB CMRR (G=1000), and only 330µA supply current. A single resistor sets gain from 1 to 1000.

Key Specifications

Manufacturer Analog Devices
Type Instrumentation Amplifier
Channels 1
Supply Voltage ±2.3V to ±18V / 4.6V to 36V
Quiescent Current 330 µA max
Input Noise 8 nV/√Hz @ 1kHz
CMRR (G=1) 86 dB min
CMRR (G=1000) 146 dB min
Bandwidth (G=1) 2.2 MHz
Slew Rate 0.8 V/µs
Gain Range 1 to 1000
Output Rail-to-Rail
Temperature -40°C to +85°C
Package 8-SOIC_N

Features

  • 330µA max quiescent current
  • Rail-to-rail output
  • 8nV/√Hz, 0.15µV p-p RTI (G=100)
  • 150dB CMRR (G=1000)
  • Gain 1-1000 via single resistor
  • 40V input overvoltage protection

Applications

  • Medical instrumentation (ECG, EEG, EMG)
  • Industrial strain gage measurement
  • Precision data acquisition
  • Portable instrumentation

Precision rail-to-rail in-amp, 8nV/rtHz, 150dB CMRR, 330µA, 8-SOIC T&R.

Three-op-amp in-amp topology with precision-trimmed resistors. Two input amplifiers buffer and pre-amplify the differential signal; gain set by external RG. Output stage provides final gain and level shift via REF pin.

Pin Name Function
1 -IN Inverting Input
2,3 RG Gain Resistor
7 VOUT Output
  • Medical instrumentation (ECG, EEG, EMG)
  • Industrial strain gage measurement
  • Precision data acquisition
  • Portable instrumentation
Part Notes
AD8422BRZ-R7 Higher precision grade
AD620 Industry standard predecessor
Recommend Parts

MSP430F5304IRGZR

16-bit ultra-low-power MCU, 25MHz, 8KB Flash, 6KB RAM, 10-bit ADC, VQFN-48
