ADM810LARTZ-REEL7

Microprocessor reset supervisor, 2.93V th, SOT-23-3

10605

Effective Inventory
Go to Inquiry

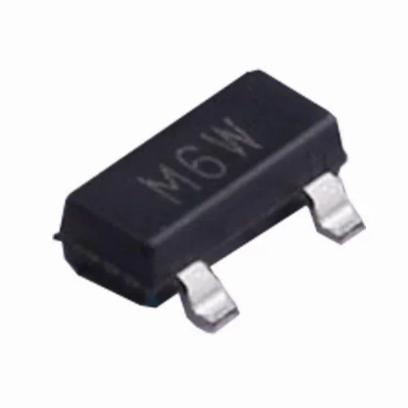

Image for reference only

Manufacturer Part：

ADM810LARTZ-REEL7

Package：

SOT-23-3

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

CY8C3446LTI-074

R1173S001B-E2-F

TPS76318DBVT

DS2003TM/NOPB

LM317LDR2G

SN74CBTLV3253PW

PCT2075DP,118

LM258DR

Description

Product Overview

The ADM810LARTZ-REEL7 from Analog Devices is a microprocessor supervisory reset circuit with 2.93V threshold and 140 ms reset timeout. The push-pull active-low output provides a clean reset to the MCU during power-up, brownout, and power-down.

Key Specifications

Function Microprocessor supervisory reset
Reset Output Active-low push-pull
Threshold 2.93V (L grade)
Reset Timeout 140 ms min
Supply Voltage 1.0V to 5.5V
Quiescent Current 10 µA
Package SOT-23-3 (2.9×1.3mm)

Working Principle

A precision voltage comparator monitors VCC against an internal trimmed 2.93V bandgap reference. When VCC falls below threshold, RESET asserts LOW. After VCC rises above threshold, the reset timeout circuit holds RESET LOW for 140 ms minimum to allow the MCU and power supply to stabilize. Push-pull output eliminates the need for an external pull-up resistor.

Applications

  • MCU power-on reset
  • Brownout detection
  • System supervisor
  • FPGA / CPU reset

The ADM810LARTZ-REEL7 from Analog Devices is a microprocessor supervisory reset circuit with 2.93V threshold and 140 ms reset timeout. The push-pull active-low output provides a clean reset to the MCU during power-up, brownout, and power-down.

A precision voltage comparator monitors VCC against an internal trimmed 2.93V bandgap reference. When VCC falls below threshold, RESET asserts LOW. After VCC rises above threshold, the reset timeout circuit holds RESET LOW for 140 ms minimum to allow the MCU and power supply to stabilize. Push-pull output eliminates the need for an external pull-up resistor.

Pin Name Description
1 GND Ground
2 RESET Active-low reset output
3 VCC Supply (monitored)
  • MCU power-on reset
  • Brownout detection
  • System supervisor
  • FPGA / CPU reset
Model Manufacturer Key Difference
TPS3839 TI Similar nano-power supervisor
