BSP318SH6327

N-ch 60V Logic Level MOSFET, 1.4Ω, SOT-223

6016

Effective Inventory
Go to Inquiry

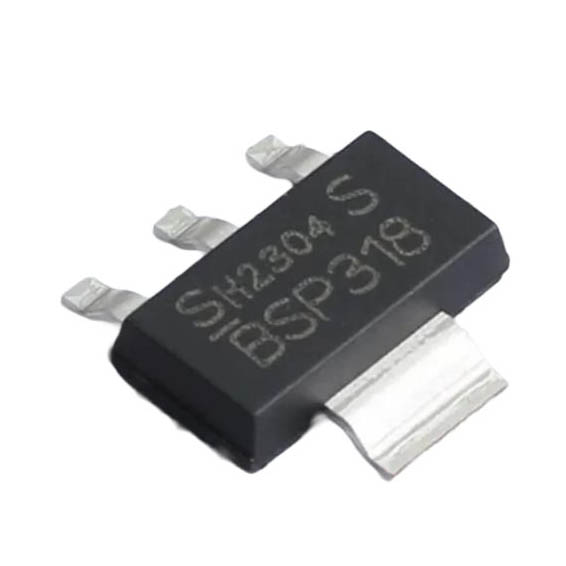

Image for reference only

Manufacturer Part：

BSP318SH6327

Package：

SOT-223

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The BSP318SH6327 is an N-channel enhancement mode logic level MOSFET from Infineon. VDS=60V, RDS(on)=1.4Ω max at VGS=5V. SOT-223 package for low-side switching.

Key Specifications

Manufacturer Infineon Technologies
Type N-Channel Enhancement MOSFET
VDS 60 V
RDS(on) 1.4 Ω max @ VGS=5V
ID 0.43 A
VGS(th) 1.0V to 2.5V
Ptot 1.5 W
Temperature -55°C to +150°C
Package SOT-223

Features

  • Logic level gate drive (5V)
  • Low RDS(on) 1.4Ω at 5V
  • SOT-223 compact package
  • ESD protected gate

Applications

  • Low-side load switching
  • Power management
  • Automotive body electronics
  • Industrial relay replacement

N-ch 60V Logic Level MOSFET, 1.4Ω, SOT-223.

N-channel enhancement mode MOSFET. Logic-level gate allows direct drive from 5V microcontrollers.

Pin Name Function
1 G Gate
2 S Source
3 D Drain
  • Low-side load switching
  • Power management
  • Automotive body electronics
  • Industrial relay replacement
Part Notes
BSP297 Similar 60V SOT-223
