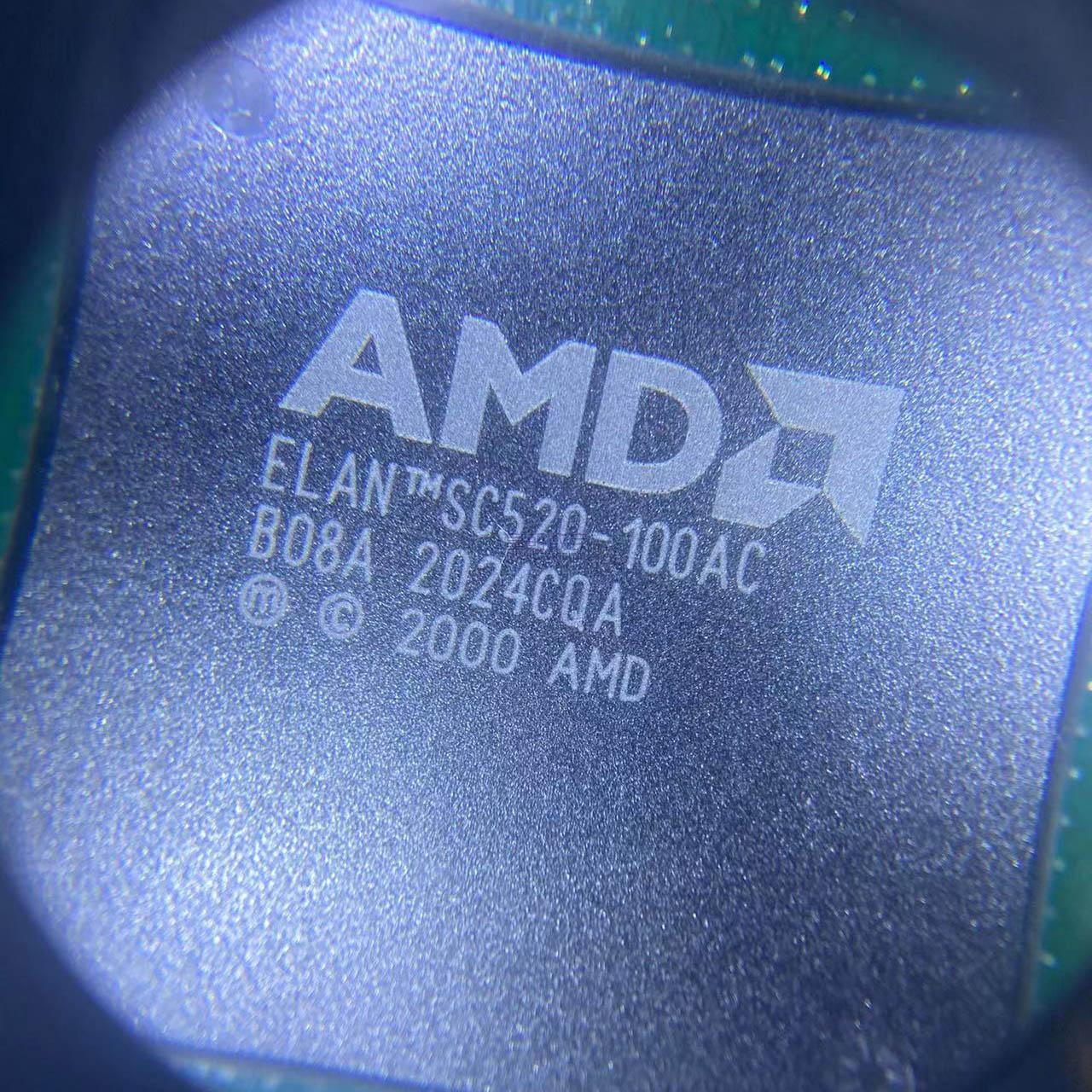

ELANSC520-100AC

The ELANSC520-100AC is a member of AMD’s Élan™ SC520 family of highly integrated 32-bit x86 embedded microcontrollers. Designed specifically for embedded applications requiring x86 architecture compatibility, the Élan SC520 integrates an Am5x86-class CPU core with a comprehensive set of PC/AT-compatible system logic and peripherals on a single chip — essentially a complete PC motherboard on a single silicon device. The CPU core is based on the Am5x86 architecture, an enhanced 80486-class 32-bit x86 processor running at 100 MHz with a 16 KB unified write-back L1 cache. It is fully compatible with the x86 instruction set, supporting all 80486 instructions plus extensions, allowing developers to use standard x86 development tools, compilers (GCC, Microsoft C, Borland C), and operating systems (DOS, Linux, Windows CE, real-time OSes like VxWorks). The integrated memory controller supports up to 512 MB of PC100 SDRAM with a 64-bit wide data path, providing ample memory for embedded operating systems and applications. The SC520 includes both PCI and ISA bus interfaces — the PCI 2.1-compliant 32-bit 33 MHz PCI interface allows connection of modern PCI peripherals (Ethernet controllers, USB, SATA controllers), while the ISA bus interface provides compatibility with legacy ISA cards and simplifies integration with existing embedded designs. All standard PC/AT system peripherals are integrated: DMA controllers (compatible with 8237), interrupt controllers (compatible with 8259), programmable timers (compatible with 8254), and a real-time clock. Communication and I/O peripherals include two 16550-compatible UARTs, an IEEE 1284 parallel port, an IDE/EIDE hard disk controller, and a USB 1.1 host controller with two ports. The Élan SC520 found widespread use in industrial single-board computers, networking equipment, telecommunications systems, POS terminals, and medical equipment during the late 1990s and 2000s. While newer embedded processors (ARM, x86 SoCs) have largely superseded it, the ELANSC520-100AC remains important for maintaining legacy embedded systems that depend on its specific PC/AT-compatible architecture and peripheral set. The 388-pin PBGA package provides the high pin count required to support all the integrated buses and peripherals.

The Élan SC520 operates as a system-on-chip x86 embedded computer, integrating the CPU core, memory controller, bus interfaces, and I/O peripherals on a single die. The Am5x86 CPU core executes x86 instructions at 100 MHz using a 5-stage pipeline. The 16 KB unified cache serves as both instruction and data cache, using a write-back policy to maximize performance by reducing memory bus traffic. The cache also supports write-through mode for memory-mapped I/O regions where data coherency is required. The memory controller provides a 64-bit interface to SDRAM, supporting standard PC100 SDRAM DIMMs up to 512 MB total capacity. The controller handles SDRAM refresh, bank management, and timing, and can be configured for different SDRAM speeds and sizes. The PCI bus interface is a 32-bit, 33 MHz PCI 2.1-compliant controller that operates as the PCI host bridge. It connects the CPU/memory subsystem to the PCI bus, supporting both master and slave PCI transactions. The ISA bus interface provides a standard PC/AT-compatible ISA bus, generated from the PCI bus via an internal PCI-to-ISA bridge. This ISA bus runs at the standard 8.33 MHz (1/4 of PCI 33 MHz) and supports all standard ISA bus signals and DMA channels. The system logic block includes all the standard PC/AT peripheral functions: two 8259-compatible interrupt controllers cascaded together for 15 interrupt levels (plus the cascade); two 8237-compatible DMA controllers providing 7 DMA channels (4 8-bit + 3 16-bit); three 8254-compatible timer/counter channels (system timer, speaker tone, refresh trigger); and a DS12887-compatible real-time clock with battery backup. All these peripherals are mapped to the standard PC I/O port addresses, ensuring software compatibility with PC BIOS and operating systems. The I/O peripheral block includes two 16550-compatible UARTs with 16-byte FIFOs for serial communication, an IEEE 1284-compatible parallel port for printer or general-purpose parallel I/O, an IDE/EIDE controller supporting up to two IDE drives, and a USB 1.1 host controller with two downstream ports. Overall, the architecture is essentially a complete PC/AT-compatible computer system implemented on a single chip, with the x86 CPU, chipset, and standard peripherals all integrated together — making it ideal for embedded systems that need x86 software compatibility in a compact, single-chip solution.

The ELANSC520-100AC is available in a 388-pin plastic BGA package. Major pin groups:

Note: The exact pin count and arrangement for the 388-pin PBGA package is organized in a grid pattern. Refer to the official Élan SC520 datasheet and package drawings for complete pin assignments, ball map, and electrical specifications.

• Industrial Single-Board Computers (SBCs): Used as the main processor on PC/104, EBX, and other form-factor industrial single-board computers, providing x86 compatibility for running DOS, Windows, or Linux-based industrial control software
• Industrial Control & Automation: Deployed in PLCs, industrial controllers, and HMI (Human-Machine Interface) panels requiring x86 software compatibility and support for legacy ISA-based industrial I/O cards
• Networking Equipment: Used in routers, firewalls, VPN appliances, and network security appliances from the late 1990s/2000s era, leveraging the PCI bus for Ethernet controller expansion and x86 architecture for running network operating systems
• Telecommunications Equipment: Found in telecom switches, PBX systems, voice gateways, and SS7 signaling equipment requiring high-performance embedded processing and PCI/ISA expansion for telecom interface cards
• Point-of-Sale (POS) Terminals: Used in POS terminals, cash registers, and self-service kiosks where x86 compatibility allows running standard POS software and supporting legacy peripherals via ISA/PCI slots
• Medical Equipment: Deployed in patient monitors, diagnostic equipment, and medical imaging controllers where the mature, well-documented x86 platform simplifies regulatory approval and software maintenance
• Set-Top Boxes & Thin Clients: Used in early set-top boxes, network computers, and thin client devices where the x86 core runs embedded operating systems with graphics and network support
• Legacy System Maintenance: Serves as a replacement or spare part for maintaining legacy embedded systems built around the Élan SC520 architecture, extending the operational life of installed equipment where full redesign is not economically feasible
