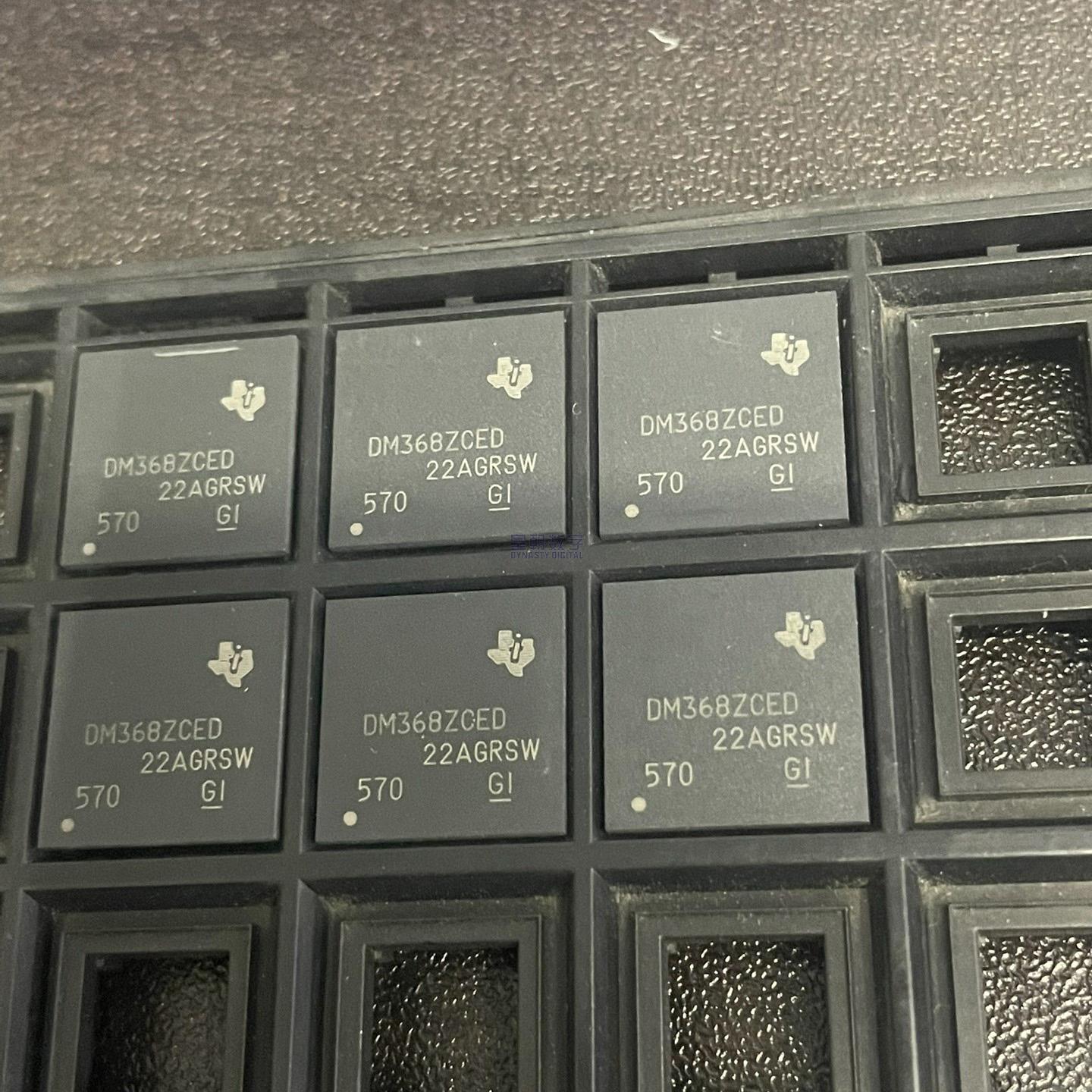

TMS320DM368ZCE

DaVinci video SoC, ARM926EJ-S@432MHz, 1080p30 H.264 encode/decode, 338-ball BGA, extended temp

5678

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

TMS320DM368ZCE

Package：

BGA-338 (ZCE) - 13 x 13 x 1.15 mm, 0.65mm pitch

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TMS320F28062PZT

TMS320C6657CZHA

STR710FZ2T6

STM8S207C8T6

STM8S105K4T6C

STM8S105C6T6C

STM8S003F3U6TR

STM8L101F3U6

Description

Product Overview

The TMS320DM368ZCE is a high-performance digital media system-on-chip (DMSoC) from Texas Instruments’ DaVinci™ video processor family. Featuring an ARM926EJ-S core running at 432 MHz and two dedicated video image coprocessors (HDVICP and MJCP), this device is optimized for HD video encoding and decoding at up to 1080p 30fps H.264.

Packaged in a 338-ball BGA (ZCE package), the DM368 integrates a comprehensive Video Processing Subsystem (VPSS) with hardware face detection, a resize engine (1/16x to 8x), three 10-bit HD video DACs for analog output, and a flexible image sensor interface supporting CCD/CMOS sensors with BT.656 and BT.1120 standards. The device also offers a rich peripheral set including 10/100 Ethernet MAC, USB 2.0 OTG, DDR2/mDDR memory controller, five SPI interfaces, two UARTs, and two MMC/SD/SDIO controllers.

Pin-to-pin and software compatible with the DM365, the TMS320DM368ZCE operates over an extended temperature range of –40°C to 85°C and is fabricated in a 65 nm process technology. Its configurable power-saving modes and optimized architecture make it ideal for battery-powered and cost-sensitive video applications.

Key Specifications

Parameter Value
CPU Core ARM926EJ-S
CPU Frequency Up to 432 MHz
Video Coprocessors HDVICP + MJCP (2 engines)
Video Resolution 1080p at 30 fps (H.264)
Video Codecs H.264, MPEG-4, MPEG-2, MJPEG, VC1/WMV9
Image Sensor I/F 16-bit parallel, up to 120 MHz
Video DACs 3 × 10-bit HD analog
Memory DDR2/mDDR (16-bit), 128KB SRAM
Ethernet 10/100 Mbps EMAC
USB USB 2.0 OTG
Package BGA-338 (ZCE), 13×13 mm
Operating Temperature –40°C to 85°C (extended)
Process Technology 65 nm
Core Supply 1.35 V

Features

  • 432 MHz ARM926EJ-S RISC core with MMU and 16KB/8KB caches
  • Two video coprocessors: HDVICP (H.264/MPEG-4) and MJCP (MJPEG/JPEG)
  • 1080p 30fps H.264 encode/decode with closed-loop processing
  • Video Processing Subsystem (VPSS) with HW face detection engine
  • Resize engine supporting 1/16x to 8x scaling
  • Hardware On-Screen Display (OSD) with multiple windows
  • Three 10-bit HD video DACs for analog video output
  • 16-bit parallel image sensor interface (up to 120 MHz)
  • 16-bit DDR2/mDDR memory controller (up to 680 MHz DDR)
  • 10/100 Ethernet MAC with MII/RMII interface
  • USB 2.0 OTG (full-speed and high-speed)
  • Five SPI, two UARTs, two MMC/SD/SDIO, Key Scan
  • Eight different boot modes and configurable power-saving modes
  • Pin-to-pin compatible with TMS320DM365
  • 3.3V and 1.8V I/O, 1.35V core voltage

Applications

  • IP cameras and video surveillance systems
  • Video doorbells and intercom systems
  • Digital video recorders (DVR) and network video recorders (NVR)
  • Digital signage and media players
  • Portable media players and camcorders
  • Machine vision and industrial inspection
  • Smart home and security cameras
  • Automotive rear-view cameras and infotainment

The TMS320DM368ZCE is a DaVinci digital media system-on-chip designed by Texas Instruments specifically for high-definition video processing applications. At the heart of the device is an ARM926EJ-S processor core operating at up to 432 MHz, complemented by two dedicated video image coprocessors – the HD Video Imaging Coprocessor (HDVICP) and MJPEG Coprocessor (MJCP) – that offload all video compression and decompression tasks from the main ARM core.

This hardware-software partitioning allows the DM368 to achieve 1080p 30fps H.264 video encoding and decoding while leaving the ARM processor available for application-level tasks such as user interfaces, networking, and system management. The device supports production-qualified H.264 BP/MP/HP, MPEG-4, MPEG-2, MJPEG, and VC1/WMV9 codecs, providing flexibility for multi-format video applications.

The integrated Video Processing Subsystem (VPSS) includes a hardware face detection engine, a resize engine supporting scaling from 1/16x to 8x, and a hardware On-Screen Display (OSD) controller. Three built-in 10-bit HD video DACs enable direct analog video output (composite, S-video, component) without requiring external DACs.

Pin-to-pin and software compatible with the lower-performance DM365, the DM368 offers an easy upgrade path for existing designs. The device is available in a 338-ball BGA package (ZCE) and operates over the extended temperature range of -40°C to 85°C, making it suitable for industrial and outdoor video applications.

The TMS320DM368 DMSoC is organized around the ARM926EJ-S core with several specialized subsystems:

1. ARM926EJ-S Subsystem: The 32-bit RISC core runs at up to 432 MHz and includes 16KB instruction cache, 8KB data cache, MMU, and an embedded trace macrocell (ETM). It handles system control, user interface, networking stack, and application logic.

2. Video Coprocessors: The HDVICP engine handles H.264, MPEG-4, and MPEG-2 encode/decode, while the MJCP handles MJPEG and JPEG. These coprocessors operate independently of the ARM core, achieving HD video processing without consuming ARM bandwidth.

3. Video Processing Subsystem (VPSS): Divided into a front-end (image sensor interface, face detection, resizer) and back-end (OSD, video DACs), the VPSS manages the entire video data pipeline from sensor input to display output.

4. Memory Subsystem: A 16-bit DDR2/mDDR controller supports up to 680 MHz DDR clock for high-bandwidth video frame buffer access. An internal 128KB RAM is available for data and program storage.

5. Peripherals: The device integrates EMAC, USB 2.0 OTG, 5× SPI, 2× UART, 2× MMC/SD/SDIO, key scan, and GPIO, providing comprehensive connectivity for video surveillance and media applications.

Group Signal Type Count Description
Power VDD, VSS – Core (1.35V), IO (3.3V/1.8V), DDR (1.8V)
Memory DDR2/mDDR 16 data 16-bit DDR2/mDDR memory interface
Memory AEMIF 8/16 data Asynchronous EMIF for NAND/NOR flash
Video Input VPFE 16-bit Image sensor interface (CCD/CMOS)
Video Output VPBE 3 DACs HD video DACs (composite/component)
Video Output Digital Out 24-bit RGB/YCC digital display output
Network EMAC 1 port 10/100 Ethernet with MII/RMII
USB USB 2.0 1 port USB 2.0 OTG (host/device)
Serial SPI 5 SPI interfaces (2 slave select each)
Serial UART 2 UARTs (one with RTS/CTS)
Storage MMC/SD 2 MMC/SD/SDIO card interfaces
Audio Voice Codec – Integrated voice codec (ADC+DAC)
Input Key Scan 8×8 Keypad scanner matrix
Analog ADC 4 ch 10-bit successive approximation ADC
GPIO GPIO ~100 Multiplexed general-purpose I/O
Debug JTAG – IEEE 1149.1 JTAG boundary scan

Note: Full pin details available in datasheet Section 2. Not all peripherals are available simultaneously due to pin multiplexing.

  • IP Cameras and Video Surveillance: Network cameras with 1080p H.264 encoding, motion detection, and remote monitoring capabilities. The low power consumption and integrated video accelerators make it ideal for battery-powered security cameras.
  • Video Doorbells and Intercoms: Smart doorbell systems requiring video capture, compression, and two-way audio over Wi-Fi or wired networks.
  • Digital Video Recorders (DVR/NVR): Multi-channel video recording systems where the DM368 handles compression and the ARM core manages storage and network streaming.
  • Digital Signage and Media Players: Standalone media players capable of decoding multiple video formats for digital signage, advertising displays, and kiosk applications.
  • Machine Vision and Industrial Inspection: Factory automation vision systems requiring real-time image capture and processing for quality control and inspection tasks.
  • Automotive Infotainment: Rear-view camera systems, in-car entertainment, and driver assistance applications requiring reliable operation over extended temperature ranges.
  • Portable Media Devices: Battery-powered video players and camcorders benefiting from the DM368’s low power modes and hardware codec acceleration.
Manufacturer Part Number CPU Video Notes
Texas Instruments TMS320DM365ZCE ARM9@300MHz 720p30 Pin-compatible, lower performance
Texas Instruments TMS320DM369ZCE ARM9@432MHz 1080p30 With noise filtering engine
Texas Instruments DMVA2 ARM9@432MHz 1080p30 With vision coprocessor for analytics
HiSilicon Hi3516C ARM9@500MHz 1080p30 Chinese alternative IP camera SoC
Ambarella A5s ARM11 1080p60 Higher performance camera SoC
NXP i.MX27 ARM9@400MHz D1 Alternative multimedia SoC
Recommend Parts

TMS320F28062PZT

C2000 32-bit MCU, 90MHz, FPU+CLA, 128KB flash, 12-bit ADC, 16 PWM, LQFP-100, industrial control

Brand:

Package:

LQFP-100 (PZ) – 16 x 16 x 1.4 mm, 0.5mm pitch

In stock:

10892pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

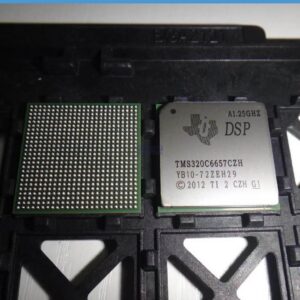

TMS320C6657CZHA

Dual-core C66x DSP, up to 1.25GHz, 40GMAC/20GFLOP per core, 1MB shared SRAM, SRIO/PCIe/GbE, FCBGA-625

Brand:

Package:

FCBGA-625 (CZH) – 21 x 21 x 2.25 mm, 0.8mm pitch

In stock:

3421pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

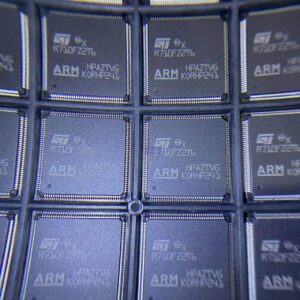

STR710FZ2T6

32-bit ARM7TDMI MCU, 48MHz, 256KB Flash, 64KB SRAM, USB FS, CAN, EMI, LQFP144

Brand:

Package:

LQFP-144 (20x20x1.45 mm)

In stock:

1250pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

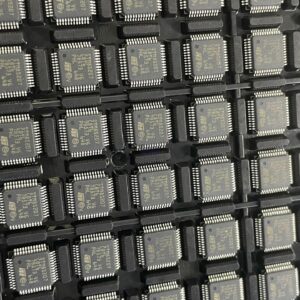

STM8S207C8T6

Performance-line 8-bit STM8S MCU, 24MHz/20MIPS, 64KB Flash, 6KB RAM, 1.5KB EEPROM, CAN, LQFP48

Brand:

Package:

LQFP-48 (7x7x1.4 mm)

In stock:

3240pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

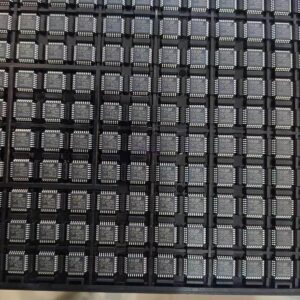

STM8S105K4T6C

Access-line 8-bit STM8S MCU, 16MHz, 16KB Flash, 2KB RAM, 1KB EEPROM, 10-bit ADC, LQFP32

Brand:

Package:

LQFP-32 (7x7x1.4 mm)

In stock:

7870pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

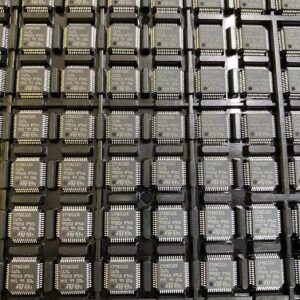

STM8S105C6T6C
