STM8S105C6T6C

Access-line 8-bit STM8S MCU, 16MHz, 32KB Flash, 2KB RAM, 1KB EEPROM, 10-bit ADC, LQFP48

5280

Effective Inventory
Go to Inquiry

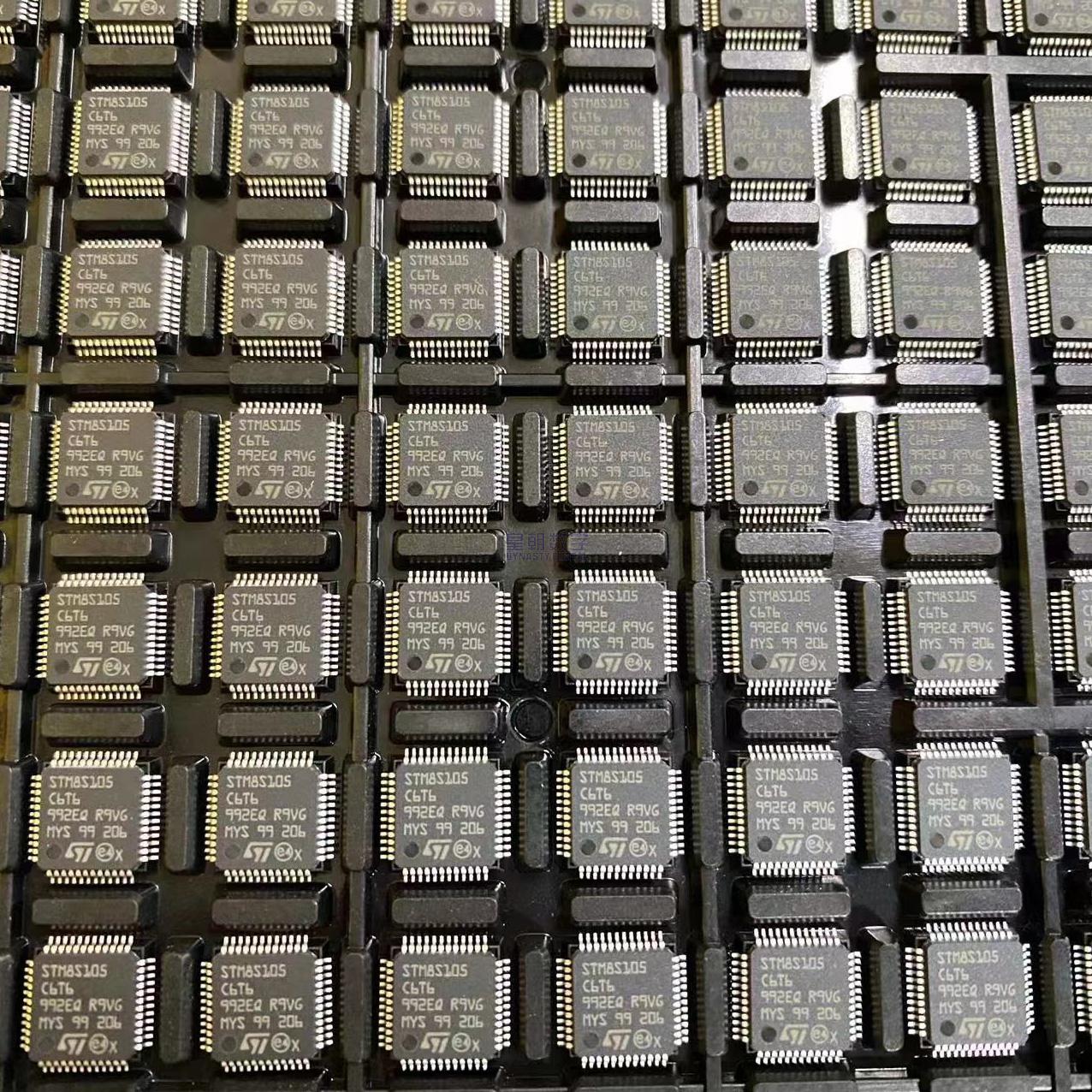

Image for reference only

Manufacturer Part：

STM8S105C6T6C

Package：

LQFP-48 (7x7x1.4 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STR710FZ2T6

STM8S207C8T6

STM8S105K4T6C

STM8S003F3U6TR

STM8L101F3U6

Description

Product Overview

The STM8S105C6T6C is an access-line 8-bit microcontroller from STMicroelectronics’ STM8S family, delivering 16 MIPS performance with 32 KB Flash, 2 KB RAM, and 1 KB true data EEPROM in an LQFP48 package. Featuring the advanced STM8 core with Harvard architecture and 3-stage pipeline, it provides a comprehensive peripheral set including a 10-channel 10-bit ADC, advanced control timer with motor control PWM capability, two general purpose timers, and rich communication interfaces. The wide 2.95V to 5.5V operating range, robust I/O design, and integrated clock/reset functionality reduce system cost and improve reliability in industrial and consumer applications. The device is supported by a full development ecosystem including standard firmware library and touch sensing library.

Key Specifications

Core STM8S 8-bit, Harvard architecture
Maximum Frequency 16 MHz
Flash Memory 32 KB (read-while-write)
RAM 2 KB
EEPROM 1 KB (300k write/erase cycles)
Supply Voltage 2.95 V to 5.5 V
Operating Temperature -40°C to +85°C
GPIO Count 38 (16 high-sink outputs)
ADC 10-bit, 10 channels, scan mode
Package LQFP-48 (7×7 mm)

Features

  • Advanced STM8 core with 3-stage pipeline, 16 MIPS
  • 32 KB Flash with read-while-write capability
  • 1 KB true data EEPROM (300k cycle endurance)
  • 2.95V to 5.5V wide operating voltage range
  • Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs
  • 2x 16-bit general purpose timers (2+3 CAPCOM channels)
  • 8-bit basic timer with 8-bit prescaler
  • Window and independent watchdog timers
  • 10-bit ADC with 10 channels and analog watchdog
  • UART with SmartCard, IrDA, LIN master mode
  • SPI up to 8 Mbit/s, I2C up to 400 Kbit/s
  • 38 I/O pins with 16 high-sink outputs
  • 96-bit unique ID, SWIM debug interface
  • Clock security system with clock monitor

Applications

  • Industrial control and factory automation
  • Motor control and power electronics
  • Home appliances and building automation
  • Consumer electronics and white goods
  • Automotive body electronics (LIN)
  • Smart metering systems
  • Lighting control and LED drivers
  • Human-machine interface modules

The STM8S105C6T6C is an access-line 8-bit microcontroller from STMicroelectronics’ STM8S family, featuring 32 Kbytes of Flash program memory, 2 Kbytes of RAM, and 1 Kbyte of true data EEPROM with 300,000 write/erase cycle endurance. Based on the advanced STM8 core with Harvard architecture and 3-stage pipeline operating at 16 MHz, it provides a balanced mix of performance and features in an LQFP48 package. Key peripherals include a 10-bit ADC with up to 10 channels, advanced control timer with motor control support, two general purpose timers, plus UART (SmartCard/IrDA/LIN), SPI (8 Mbit/s), and I2C (400 Kbit/s) communication interfaces. With up to 38 I/O pins including 16 high-sink outputs, it is well-suited for industrial control, home automation, and motor drive applications.

The STM8S105C6T6C uses the enhanced STM8 8-bit core with Harvard architecture and 3-stage pipeline, delivering up to 16 MIPS. The core supports extended instructions including 8×8 multiplication, 16/8 and 16/16 division, and bit manipulation. The flexible clock controller supports four master clock sources: HSE crystal oscillator, external clock input, HSI 16 MHz factory-trimmable RC, and LSI 128 kHz low-power RC, with a clock security system for reliable operation. Power management includes three low-power modes (Wait, Active-halt, Halt) with individual peripheral clock gating. The nested vectored interrupt controller provides 32 interrupt vectors with hardware priority and 3 software priority levels, supporting up to 37 external interrupts on 6 vectors. The advanced control timer (TIM1) with complementary outputs and dead-time insertion enables cost-effective motor control applications.

Pin Name Type Description
PA1-PA6 I/O Port A – 6 GPIO pins (PA1=OSCIN, PA2=OSCOUT)
PB0-PB7 I/O Port B – 8 GPIO pins, ADC channels 0-7
PC0-PC7 I/O Port C – 8 GPIO, TIM1 channels, SPI signals
PD0-PD7 I/O Port D – 8 GPIO, UART2 TX/RX, TIM2 channels
PE0-PE7 I/O Port E – 8 GPIO, I2C, TIM1 break, ADC
PF0-PF5 I/O Port F – 6 GPIO, I2C, SPI, OSCIN/OUT
NRST I Active-low reset pin
VDD P Digital power supply
VSS P Digital ground
VDDA P Analog power supply
VSSA P Analog ground
VCAP P 1.8V regulator capacitor
SWIM I/O Single-wire interface module
  • Industrial control and automation systems
  • Motor control and power drives
  • Home and building automation
  • Consumer appliances and white goods
  • LIN and CAN sub-network nodes
  • Smart metering and energy monitoring
  • Human-machine interfaces and keypads
  • Lighting control systems
Model Flash Package Description
STM8S105K6T6C 32KB LQFP32 Same memory, smaller package
STM8S105S6T6C 32KB LQFP44 Mid-size package
STM8S105C4T6 16KB LQFP48 Same package, smaller Flash
STM8S207C8T6 64KB LQFP48 Performance line, more features
STM8S005C6T6 32KB LQFP48 Value line, cost-optimized
