STR710FZ2T6

32-bit ARM7TDMI MCU, 48MHz, 256KB Flash, 64KB SRAM, USB FS, CAN, EMI, LQFP144

1250

Effective Inventory
Go to Inquiry

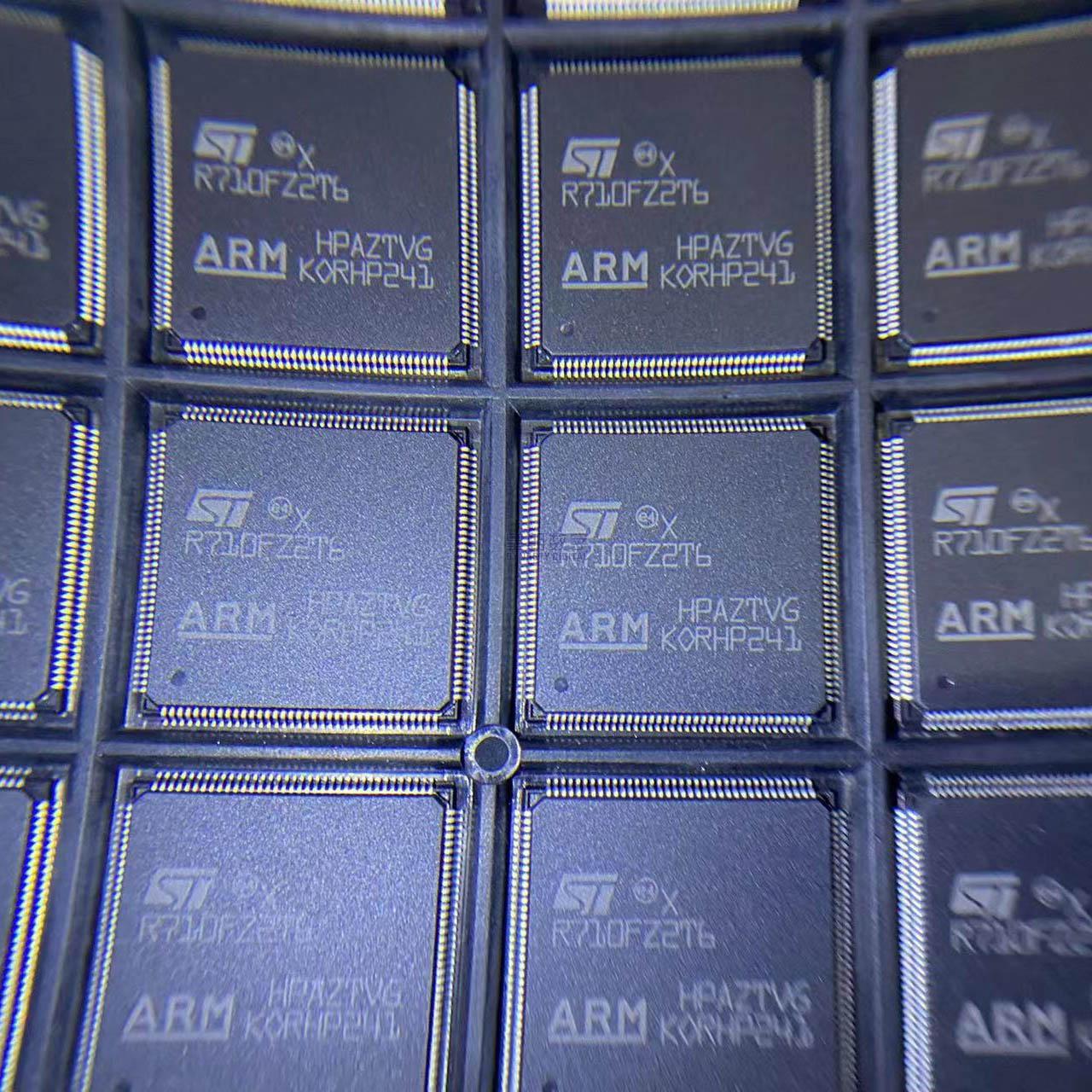

Image for reference only

Manufacturer Part：

STR710FZ2T6

Package：

LQFP-144 (20x20x1.45 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STM8S207C8T6

STM8S105K4T6C

STM8S105C6T6C

STM8S003F3U6TR

STM8L101F3U6

Description

Product Overview

The STR710FZ2T6 is a 32-bit ARM7TDMI-based microcontroller from STMicroelectronics’ STR7 family, operating at up to 48 MHz with 256 KB of embedded Flash and 64 KB of SRAM. As the highest-specification device in the STR71xF series, it features a 144-pin LQFP package with an External Memory Interface (EMI) supporting up to 4 banks of external memory, plus USB 2.0 full-speed device, CAN 2.0B, four UARTs, two BSPI channels, two I2C interfaces, and a 4-channel 12-bit ADC. With its rich peripheral set, external memory expansion capability, and 32-bit ARM processing power, it provides a robust platform for industrial control, communication gateways, and data acquisition applications. The Z version offers lower power consumption compared to the A variant.

Key Specifications

Core ARM7TDMI 32-bit RISC
Maximum Frequency 48 MHz (~45 MIPS)
Flash Memory 256 KB + 16 KB (total 272 KB)
RAM 64 KB (high-speed)
External Memory EMI – up to 4 banks (SRAM/Flash/ROM)
Supply Voltage 3.0 V to 3.6 V
Operating Temperature -40°C to +85°C
GPIO Count 48 (multiple ports)
ADC 12-bit, 4 channels
USB USB 2.0 Full-Speed Device
CAN CAN 2.0B
Package LQFP-144 (20×20 mm)

Features

  • ARM7TDMI 32-bit RISC core with Thumb instruction set
  • 48 MHz operation, ~45 MIPS performance
  • 256 KB Flash + 16 KB secondary Flash (IAP capable)
  • 64 KB high-speed SRAM
  • External Memory Interface (EMI) – 4 banks, 16-bit data, 24-bit address
  • Embedded 1.8V core voltage regulator
  • USB 2.0 Full-Speed Device interface
  • CAN 2.0B (VCI compliant)
  • 4x UART (one with SmartCard ISO 7816)
  • 2x BSPI (Buffered SPI), 2x I2C
  • 16-bit PWM timer + 3x 16-bit timers + watchdog + RTC
  • 12-bit ADC with 4 channels
  • Vectored interrupt controller (32 vectors, 16 IRQ priorities)
  • JTAG debug interface, In-Application Programming
  • 5 power-saving modes for low-power operation

Applications

  • Industrial control and factory automation
  • Communication gateways and protocol converters
  • Remote monitoring and data acquisition systems
  • CAN bus industrial networks
  • USB-connected industrial devices
  • Point-of-sale and payment terminals
  • Motor control systems
  • Legacy ARM7 embedded platforms

The STR710FZ2T6 is a 32-bit microcontroller from STMicroelectronics’ STR7 family, based on the ARM7TDMI RISC core operating at up to 48 MHz. It integrates 256 Kbytes of Flash program memory with 16 Kbytes of additional Flash bank, 64 Kbytes of high-speed SRAM, and a rich set of peripherals including USB 2.0 full-speed device, CAN 2.0B, four UARTs, two BSPI channels, two I2C interfaces, four 12-bit ADC channels, and an External Memory Interface (EMI) supporting up to 4 banks of external SRAM/Flash. Packaged in LQFP144, it provides a comprehensive single-chip solution for industrial control, communication gateways, and remote monitoring applications requiring 32-bit processing power and rich connectivity.

The STR710FZ2T6 is built on the ARM7TDMI 32-bit RISC core with 3-stage pipeline and Thumb instruction set extension for improved code density, delivering approximately 45 MIPS at 50 MHz when executing from SRAM. An embedded 1.8V voltage regulator powers the core while I/O operates at 3.3V, simplifying system power design. The External Memory Interface (EMI) allows expansion with up to 4 banks of external memory (SRAM, Flash, or ROM), significantly extending system memory capacity. The vectored interrupt controller supports 32 interrupt vectors with 16 IRQ priority levels and 2 FIQ sources for real-time response. The device features five power-saving modes (Slow, Wait, LPWAIT, Stop, Standby) for power-constrained applications, and includes In-Application Programming (IAP) capability for remote firmware updates via UART, USB, CAN, or other communication interfaces.

Pin Group Count Description
GPIO0 16 Port 0 – GPIO with alternate functions (UART0, BSPI0, I2C0, TIM)
GPIO1 16 Port 1 – GPIO with alternate functions (UART1, BSPI1, I2C1, CAN)
GPIO2 16 Port 2 – GPIO with EMI address/data bus
EMI – External Memory Interface: 16-bit data, 24-bit address, 4 chip selects
USB DP/DM 2 USB 2.0 full-speed differential data lines
CAN_TX/RX 2 CAN 2.0B interface signals
ADC_IN0-3 4 12-bit analog-to-digital converter inputs
XTI 14 External interrupt inputs
JTAG 5 JTAG debug interface (TCK, TMS, TDI, TDO, nTRST)
Reset 1 System reset (active low)
Power – VDD 3.3V, VSS GND, VDDA analog supply
  • Industrial control and factory automation
  • Communication gateways and protocol converters
  • Remote monitoring and data acquisition systems
  • CAN bus networked equipment
  • USB-connected industrial peripherals
  • Motor control and power management
  • Point-of-sale terminals
  • Legacy ARM7 embedded system design
Model Flash Package Description
STR711FR2T6 256KB LQFP64 Smaller package, no EMI
STR712FR2T6 256KB LQFP128 CAN + USB, no EMI
STR710RZ 256KB LQFP144 Similar to FZ2, standard variant
STM32F103VCT6 256KB LQFP100 Cortex-M3 modern replacement
STM32F107VCT6 256KB LQFP100 Connectivity line, USB+CAN+ETH
