Product Overview
The TMS320C6657CZHA is a high-performance dual-core digital signal processor (DSP) from Texas Instruments, built on the KeyStone multicore architecture. Featuring two TMS320C66x DSP CorePacs operating at up to 1.25 GHz, this device delivers industry-leading fixed- and floating-point performance with 40 GMAC per core for fixed-point operations and 20 GFLOP per core for floating-point computations.

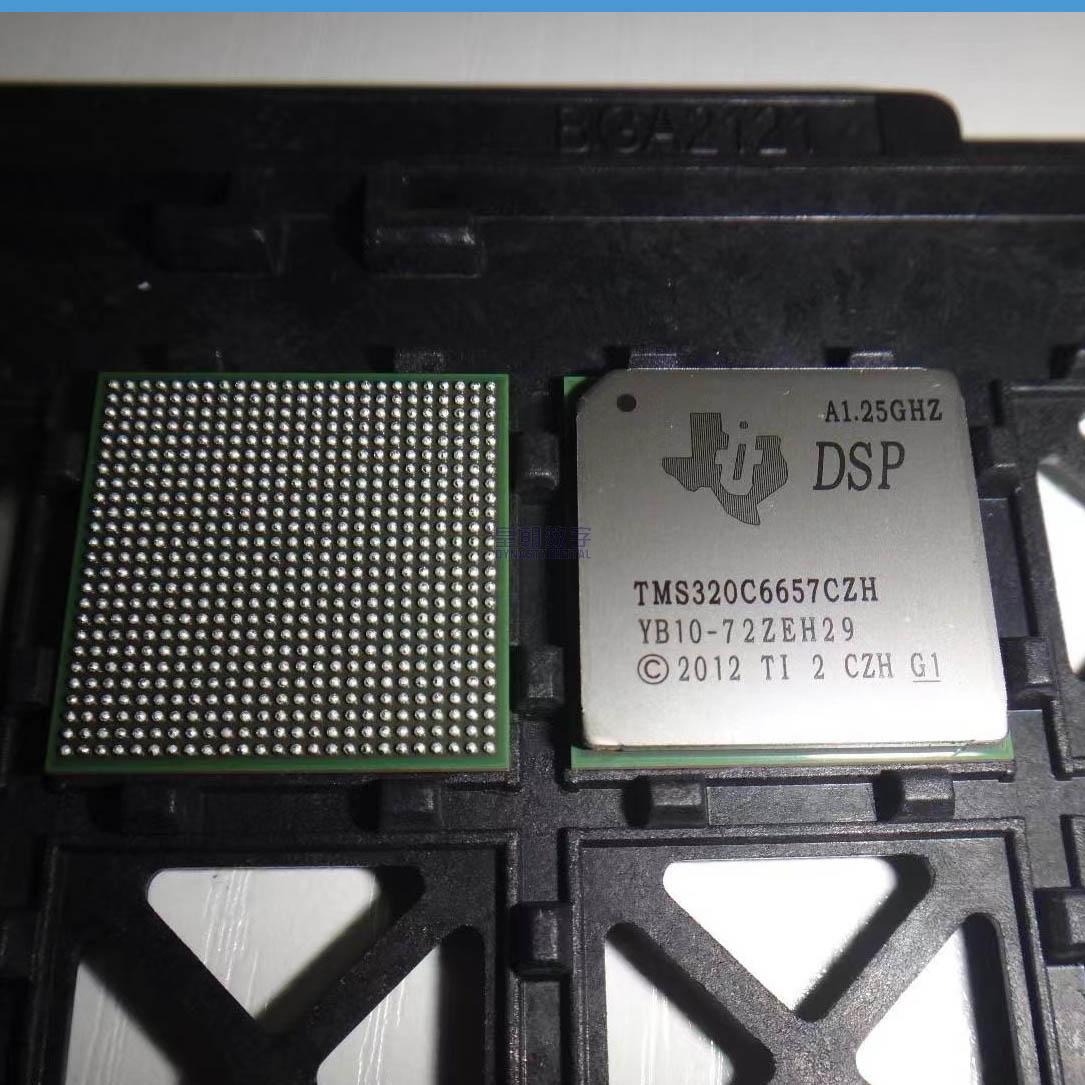

Packaged in a 625-pin flip-chip BGA (CZH) measuring 21 mm × 21 mm, the C6657 integrates a rich set of high-speed peripherals including Serial RapidIO 2.1 (4 lanes), PCI Express Gen2, HyperLink, Gigabit Ethernet, DDR3-1333 memory controller, and a 16-bit EMIF. The Multicore Navigator with 8192 hardware queues enables zero-overhead data transfers, while the on-chip hardware accelerators (VCP2, TCP3d) offload Viterbi and Turbo decoding operations.
Characterized for extended temperature operation from –40°C to 100°C, the TMS320C6657CZHA is fully backward compatible with all existing C6000 family fixed- and floating-point DSPs, ensuring software portability and reduced development cycles.
Key Specifications
| Parameter | Value |
|---|---|
| DSP Cores | 2 × C66x fixed/floating-point |
| Core Frequency | Up to 1.25 GHz |
| Fixed-Point Performance | 40 GMAC per core @ 1.25 GHz |
| Floating-Point Performance | 20 GFLOP per core @ 1.25 GHz |
| MSM SRAM | 1024 KB (shared by both cores) |
| DDR3 Interface | 32-bit, DDR3-1333, 4 GB addressable |
| SRIO | 4 lanes, v2.1, up to 5 GBaud per lane |
| PCIe | 1 port, Gen2, 1 or 2 lanes |
| Ethernet | Gigabit (SGMII), 1 port |
| Package | FCBGA (CZH), 625 pins, 21×21 mm |
| Operating Temperature | –40°C to 100°C (extended) |
| Process Technology | 40 nm |
Features
- Dual C66x DSP cores with up to 1.25 GHz clock frequency
- Industry-leading 40 GMAC/20 GFLOP per core performance
- Multicore Shared Memory Controller (MSMC) with 1024 KB MSM SRAM
- Multicore Navigator with 8192 multipurpose hardware queues and packet-based DMA
- Hardware accelerators: 2× Viterbi coprocessors (VCP2), 1× Turbo decoder (TCP3d)
- High-speed interfaces: SRIO v2.1 (4 lanes), PCIe Gen2, HyperLink (40 Gbaud)
- Gigabit Ethernet (SGMII) with 10/100/1000 Mbps support
- 32-bit DDR3-1333 memory interface with 4 GB address space
- 16-bit EMIF with Universal Parallel Port (uPP) supporting SDR/DDR transfers
- Rich peripheral set: 2× UART, 2× McBSP, I²C, SPI, 32× GPIO, Semaphore module
- Eight 64-bit timers, two on-chip PLLs
- Extended temperature range: –40°C to 100°C
- Backward compatible with C6000 family DSPs
Applications
- Power protection and relay systems
- Avionics and defense signal processing
- Currency inspection and machine vision
- Medical imaging and diagnostic equipment
- Industrial transportation and railway systems
- High-performance embedded computing
- Software-defined radio (SDR) and communications infrastructure
- Radar and sonar processing systems
