STM8S207C8T6

Performance-line 8-bit STM8S MCU, 24MHz/20MIPS, 64KB Flash, 6KB RAM, 1.5KB EEPROM, CAN, LQFP48

3240

Effective Inventory
Go to Inquiry

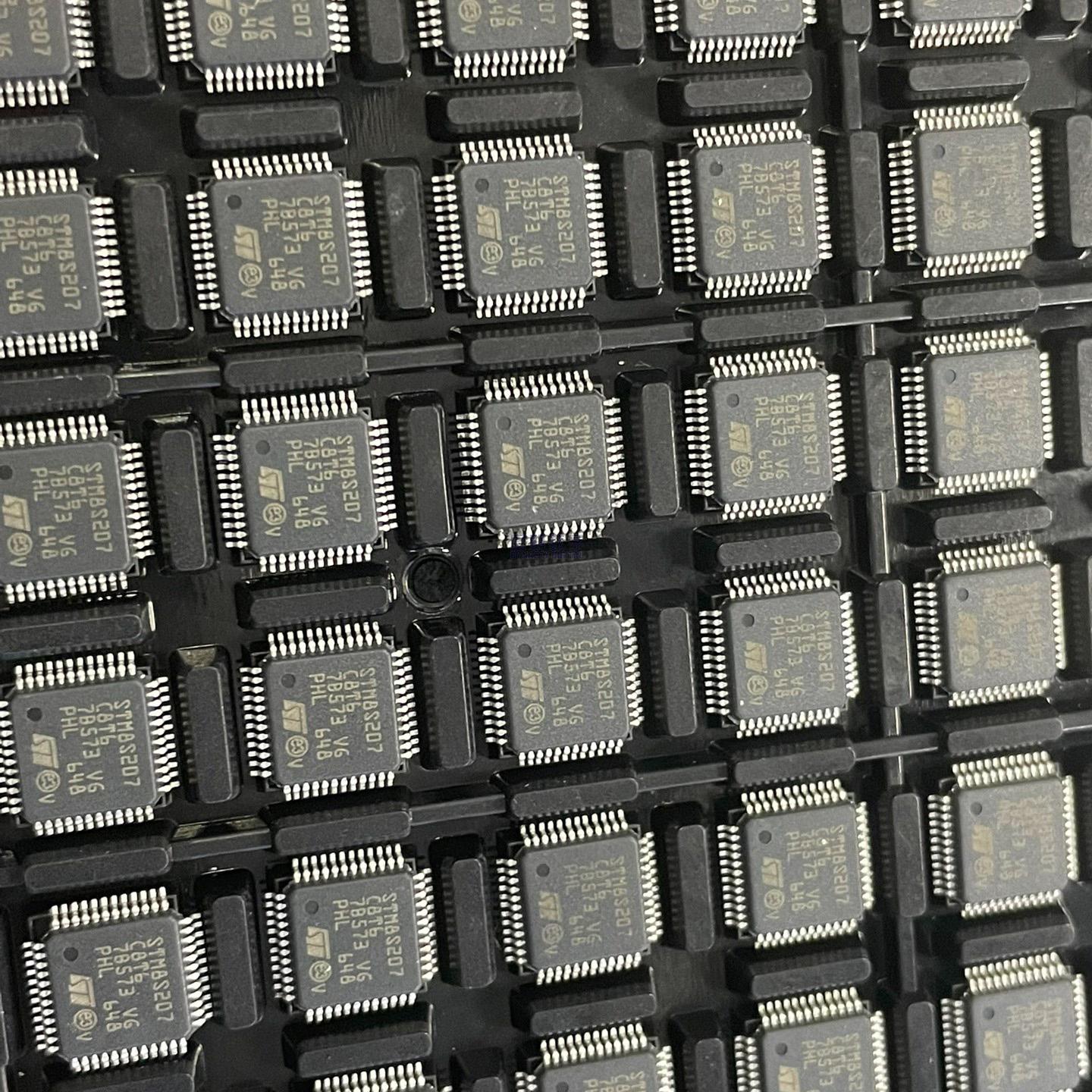

Image for reference only

Manufacturer Part：

STM8S207C8T6

Package：

LQFP-48 (7x7x1.4 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STR710FZ2T6

STM8S105K4T6C

STM8S105C6T6C

STM8S003F3U6TR

STM8L101F3U6

Description

Product Overview

The STM8S207C8T6 is a high-performance 8-bit microcontroller from STMicroelectronics’ STM8S performance line, delivering 20 MIPS at 24 MHz with 0 wait states below 16 MHz. Featuring 64 KB of Flash memory, 1.5 KB of true data EEPROM (300k cycle endurance), and 6 KB of RAM in an LQFP48 package, it offers the highest feature integration in the STM8S 48-pin category. The device includes a 10-channel 10-bit ADC, advanced control timer with complementary outputs, two UARTs (one LIN 2.1 compliant), SPI, I2C, and beCAN 2.0B interface, enabling CAN-based networking applications. With 38 I/O pins including 16 high-sink outputs and robust 2.95V to 5.5V operation, it is ideal for industrial control, motor drives, and networked embedded systems.

Key Specifications

Core STM8S 8-bit, Harvard architecture
Maximum Frequency 24 MHz (20 MIPS)
Flash Memory 64 KB
RAM 6 KB
EEPROM 1.5 KB (true data EEPROM)
Supply Voltage 2.95 V to 5.5 V
Operating Temperature -40°C to +85°C
GPIO Count 38 (16 high-sink outputs)
ADC 10-bit, 10 channels
CAN beCAN 2.0B, 1 Mbit/s
Package LQFP-48 (7×7 mm)

Features

  • 24 MHz STM8 core, 20 MIPS, 0 wait states @ ≤16 MHz
  • 64 KB Flash with read-while-write capability
  • 1.5 KB true data EEPROM (300k cycle endurance)
  • 6 KB SRAM
  • Advanced control timer: 16-bit, 4 CAPCOM, 3 complementary outputs
  • 2x 16-bit general purpose timers (5 CAPCOM channels total)
  • 8-bit basic timer + auto wake-up + beeper
  • Window and independent watchdog timers
  • beCAN 2.0B, 1 Mbit/s, 3 Tx mailboxes
  • 2x UART (LIN 2.1 master/slave, SmartCard, IrDA)
  • SPI up to 10 Mbit/s, I2C up to 400 Kbit/s
  • 10-bit ADC with 10 channels and analog watchdog
  • 38 I/O pins with 16 high-sink outputs
  • Clock security system, 96-bit unique ID

Applications

  • Industrial control and factory automation
  • Motor control and power electronics
  • CAN bus industrial networks
  • LIN automotive sub-nodes
  • Home and building automation
  • Consumer appliances and white goods
  • Human-machine interface modules
  • Lighting control and LED drivers

The STM8S207C8T6 is a performance-line 8-bit microcontroller from STMicroelectronics’ STM8S family, featuring the advanced STM8 core operating at up to 24 MHz (20 MIPS) with 0 wait states up to 16 MHz. It integrates 64 Kbytes of Flash program memory, up to 1.5 Kbytes of true data EEPROM with 300,000 cycle endurance, and 6 Kbytes of RAM in an LQFP48 package. Key features include a 10-bit ADC with 10 channels, advanced control 16-bit timer, two general purpose timers, plus CAN 2.0B (1 Mbit/s), two UARTs (LIN 2.1 compliant), SPI (10 Mbit/s), and I2C (400 Kbit/s). With 38 I/O pins including 16 high-sink outputs, it targets industrial control, motor drives, and networking applications requiring higher performance and connectivity.

The STM8S207C8T6 is built on the enhanced STM8 8-bit core with Harvard architecture and 3-stage pipeline, achieving 20 MIPS at 24 MHz. The core supports extended instructions including 8×8 multiplication and 16-bit division. The clock controller provides four master clock sources with automatic switching and clock security system. Power management features three low-power modes (Wait, Active-halt, Halt) with individual peripheral clock gating. The nested vectored interrupt controller handles 32 interrupt vectors across 6 priority levels. The advanced control timer (TIM1) with dead-time insertion and complementary outputs supports sophisticated motor control topologies. The integrated beCAN 2.0B controller with 3 transmit mailboxes enables CAN bus networking at up to 1 Mbit/s, making the device suitable for industrial and automotive sub-networks.

Pin Name Type Description
PA1-PA6 I/O Port A – 6 GPIO (PA1=OSCIN, PA2=OSCOUT)
PB0-PB7 I/O Port B – 8 GPIO, ADC channels 0-7, TIM1 channels
PC0-PC7 I/O Port C – 8 GPIO, TIM1 channels, SPI, UART2
PD0-PD7 I/O Port D – 8 GPIO, UART1, TIM2/3 channels, CAN_RX
PE0-PE7 I/O Port E – 8 GPIO, I2C, TIM1 break, ADC ch8-9
PF4-PF5 I/O Port F – OSCIN/OSCOUT (high speed)
NRST I Active-low reset pin
VDD/VSS P Digital power supply / Ground
VDDA/VSSA P Analog power supply / Ground
VCAP P 1.8V regulator capacitor
SWIM I/O Single-wire interface module
  • Industrial control and factory automation
  • Motor control and power drives
  • CAN and LIN networked systems
  • Home and building automation
  • Consumer electronics and appliances
  • Automotive body electronics
  • Human-machine interfaces
  • Lighting control systems
Model Flash Package Description
STM8S207C6T6 32KB LQFP48 Same package, smaller Flash
STM8S207CB 128KB LQFP48 Same package, maximum Flash
STM8S207R8T6 64KB LQFP64 More I/O pins (52)
STM8S208C8T6 64KB LQFP48 With CAN (STM8S208 series)
STM8S105C6T6 32KB LQFP48 Access line, lower cost
