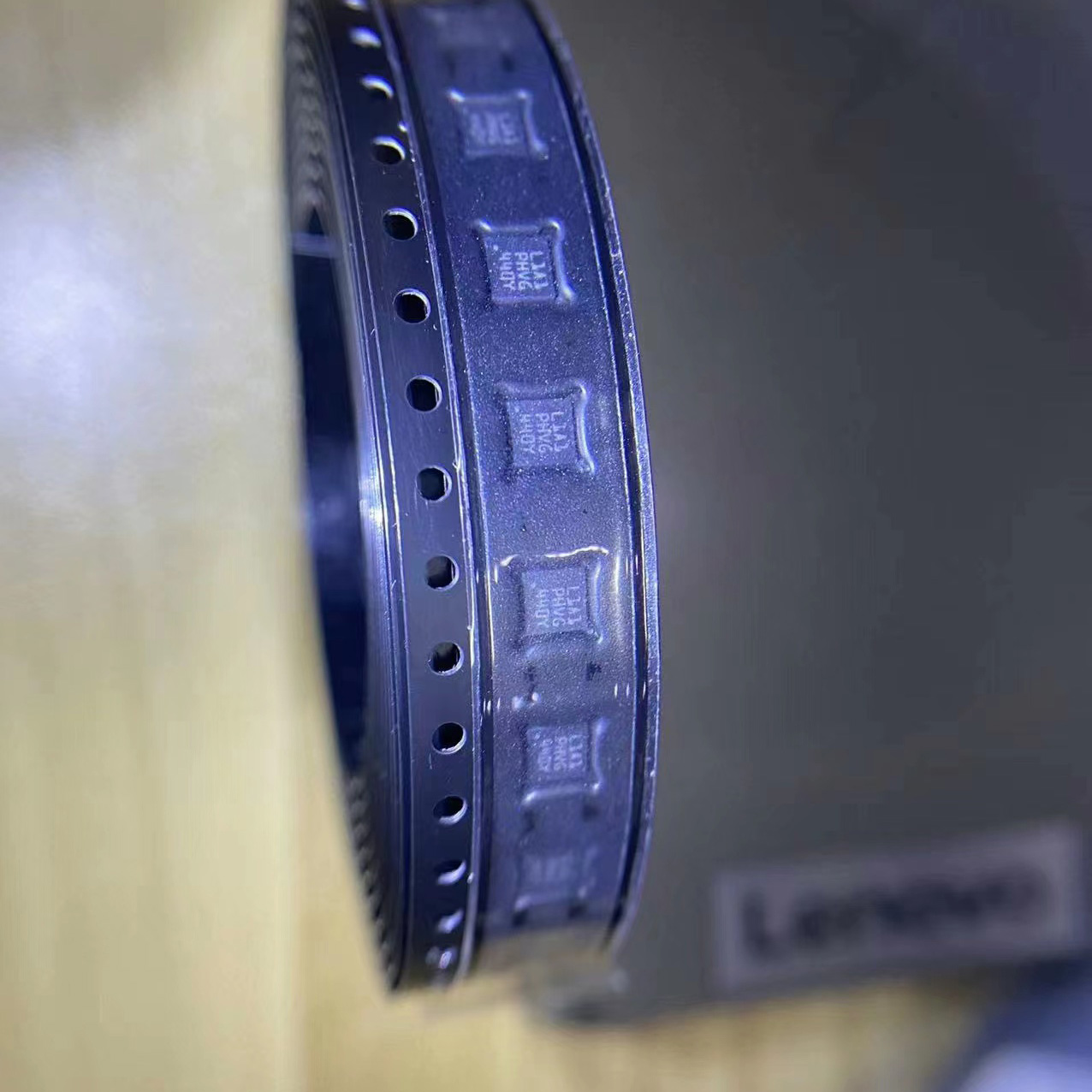

STM8L101F3U6

Ultra-low-power 8-bit STM8 MCU, 16MHz, 8KB Flash, 1.5KB RAM, 2KB EEPROM, UFQFPN20

12380

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

STM8L101F3U6

Package：

UFQFPN-20 (3x3x0.6 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STR710FZ2T6

STM8S207C8T6

STM8S105K4T6C

STM8S105C6T6C

STM8S003F3U6TR

Description

Product Overview

The STM8L101F3U6 is an entry-level ultra-low-power 8-bit microcontroller from STMicroelectronics’ STM8L family. Built around the enhanced STM8 CPU core with up to 16 MIPS throughput at 16 MHz, it features 8 KB of Flash program memory including up to 2 KB of data EEPROM with ECC, 1.5 KB of SRAM, and a comprehensive peripheral set in a compact UFQFPN20 package. The device offers industry-leading low-power performance with Halt mode current as low as 0.3 uA, making it ideal for battery-powered and energy-harvesting applications where power efficiency is critical.

Key Specifications

Core STM8 8-bit CISC
Maximum Frequency 16 MHz
Flash Memory 8 KB (with ECC)
RAM 1.5 KB
EEPROM 2 KB (data EEPROM)
Supply Voltage 1.65 V to 3.6 V
Operating Temperature -40°C to +85°C
GPIO Count 18
Timers 2x 16-bit + 1x 8-bit
Package UFQFPN-20 (3×3 mm)

Features

  • Ultra-low power: 0.3 uA Halt, 0.8 uA Active-halt, 150 uA/MHz Run
  • Enhanced STM8 core with 16 MIPS throughput
  • 8 KB Flash with ECC + 2 KB data EEPROM
  • Three low-power modes: Wait, Active-halt, Halt
  • Fast 4 us wakeup from internal 16 MHz RC
  • 2x 16-bit general purpose timers (TIM2/TIM3)
  • 1x 8-bit basic timer (TIM4) with 7-bit prescaler
  • Infrared remote control (IR) interface
  • Independent watchdog, auto-wakeup unit, beeper
  • SPI, fast I2C (400 kHz), USART
  • 2x comparators with 4 inputs each
  • 96-bit unique ID, SWIM debug interface

Applications

  • Low-power sensor networks
  • Remote controls and keypads
  • Battery-powered IoT devices
  • Smart home automation nodes
  • Wearable electronics
  • Industrial monitoring sensors
  • Portable measurement devices

The STM8L101F3U6 is an ultra-low-power 8-bit microcontroller from STMicroelectronics, featuring the enhanced STM8 CPU core providing up to 16 MIPS throughput at 16 MHz. It includes 8 Kbytes of Flash program memory with up to 2 Kbytes of data EEPROM, 1.5 Kbytes of static RAM, and a rich set of peripherals including two 16-bit general purpose timers, one 8-bit timer, infrared interface, SPI, I2C, and USART. The device operates from 1.65 V to 3.6 V supply voltage and offers three low-power modes: Wait, Active-halt, and Halt with current as low as 0.3 uA. Packaged in UFQFPN20, it is ideal for space-constrained battery-powered applications.

The STM8L101F3U6 uses an enhanced STM8 8-bit core with CISC architecture, 3-stage pipeline, and 20 addressing modes delivering up to 16 MIPS. The ultra-low-power design features an internal voltage regulator with main and low-power modes that automatically switch based on operating mode. Clock management includes an internal 16 MHz RC (4 us fast wakeup) and a 38 kHz low-power RC driving the independent watchdog and auto-wakeup unit. Three power-saving modes progressively reduce power consumption: Wait mode (CPU stopped, peripherals active), Active-halt (0.8 uA with AWU), and Halt (0.3 uA, wakeup via external interrupt). The nested interrupt controller supports 3 software priority levels with up to 29 external interrupt sources.

Pin Name Type Description
PA0 I/O HS/SWIM/BEEP/IR_TIM (Pin 1)
PA1 I/O OSCIN (Pin 2)
PA2 I/O OSCOUT (Pin 3)
PA3 I/O GPIO (Pin 5)
PB0 I/O GPIO / ADC ch0 (Pin 6)
PB1 I/O GPIO / ADC ch1 (Pin 7)
PB2 I/O GPIO / ADC ch2 (Pin 8)
PB3 I/O GPIO / ADC ch3 (Pin 9)
PB4 I/O GPIO / I2C_SDA (Pin 10)
PB5 I/O GPIO / I2C_SCL (Pin 11)
PC0 I/O GPIO / SPI_SCK (Pin 13)
PC1 I/O GPIO / SPI_MOSI (Pin 14)
PC2 I/O GPIO / SPI_MISO (Pin 15)
PC2 I/O GPIO / SPI_MISO (Pin 15)
PC3 I/O HS / USART_TX (Pin 16)
PC4 I/O HS / USART_RX (Pin 17)
PC5 I/O HS / USART_CK / CCO (Pin 18)
NRST I Reset (Pin 4)
VDD P Power supply (Pin 12)
VSS P Ground (Pin 19, EPAD Pin 20)
  • Low-power sensor nodes and data loggers
  • Battery-powered remote controls
  • Smart home and building automation
  • Wearable devices and accessories
  • Industrial monitoring and control
  • Portable instrumentation
Model Flash Package Description
STM8L101F3P6 8KB TSSOP20 Same memory, through-hole friendly
STM8L101G3 8KB TSSOP28 More I/O pins
STM8L101K3 8KB LQFP32 Maximum I/O count
STM8L101F2 4KB UFQFPN20 Lower cost, smaller Flash
STM8S003F3 8KB UFQFPN20 Value line, wider voltage (2.95-5.5V)
Recommend Parts

TMS320F28062PZT

C2000 32-bit MCU, 90MHz, FPU+CLA, 128KB flash, 12-bit ADC, 16 PWM, LQFP-100, industrial control

Brand:

Package:
