EP1AGX90EF1152C6N

Arria GX FPGA, 90,240 LEs, 3.125Gbps transceivers, M512/M4K RAM, DSP blocks

7757

Effective Inventory
Go to Inquiry

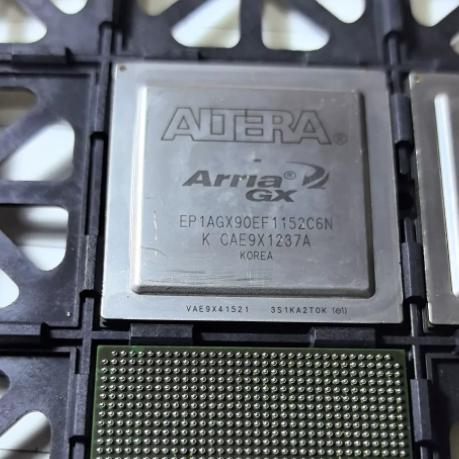

Image for reference only

Manufacturer Part：

EP1AGX90EF1152C6N

Package：

1152-pin FBGA

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

EP1AGX90EF1152C6N is an Intel/Altera Arria GX EP1AGX90 FPGA, 90K LEs, 1152-pin FBGA, with 8 transceivers up to 3.125Gbps.

Key Specifications

Type Arria GX FPGA
Logic Elements 90,240 LEs
Embedded RAM 4,505,600 bits
Transceivers 8 (up to 3.125 Gbps)
Package 1152-pin FBGA (F1152)
Speed Grade C6
Series EP1AGX90

Features

  • 90K logic element Arria GX FPGA
  • 8 integrated 3.125Gbps transceivers
  • 4.5M bits embedded RAM
  • 1152-pin FBGA package

Applications

Refer to manufacturer datasheet for detailed application information and design guidelines.

EP1AGX90EF1152C6N is an Intel/Altera Arria GX EP1AGX90 FPGA, 90K LEs, 1152-pin FBGA, with 8 transceivers up to 3.125Gbps.

The EP1AGX90EF1152C6N is a Arria GX FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.

Pin Group Name Description
I/O GPIO Banks Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS)
Power VCCIO, VCCINT, VCCPLL Core, I/O, and PLL supply voltages
Ground GND Ground reference
Config DATA, DCLK, nCSO JTAG/AS/AP configuration interface
Clock CLK, PLL Dedicated clock inputs and PLL feedback
Transceiver TX/RX (if applicable) High-speed serial transceiver lanes
  • Digital signal processing and filtering
  • Custom protocol implementation (UART, SPI, I2C, PCIe)
  • Video and image processing pipelines
  • Motor control and industrial automation
  • Prototyping and glue logic integration
Model Manufacturer Key Difference
XC7K325T Xilinx Kintex-7, 326K LE, Artix-class performance
ECP5-85 Lattice 84K LUT, low-cost mid-range alternative
iCE40HX8K Lattice 8K LUT, ultra-low-cost small form factor
