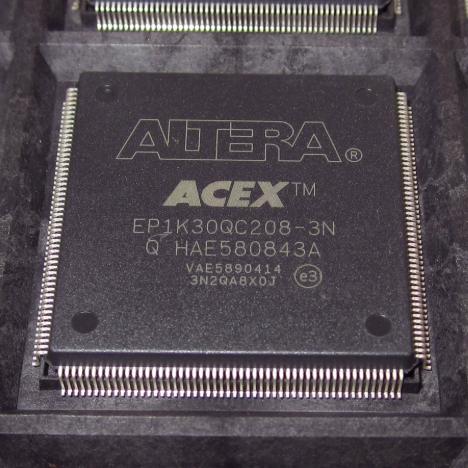

Image for reference only
EP1K30QC208-3N
208-pin PQFP
EP1K30QC208-3N is an Intel/Altera ACEX 1K30 FPGA, 30K gates, 1,728 LEs, 208-pin PQFP, speed grade -3.
| Type | ACEX 1K FPGA |
| Gates | 30,000 |
| Logic Elements | 1,728 LEs |
| Embedded RAM | 6,144 bits |
| Package | 208-pin PQFP (Q208) |
| Speed Grade | -3 |
| Series | EP1K30 |
Refer to manufacturer datasheet for detailed application information and design guidelines.
EP1K30QC208-3N is an Intel/Altera ACEX 1K30 FPGA, 30K gates, 1,728 LEs, 208-pin PQFP, speed grade -3.
The EP1K30QC208-3N is a ACEX 1K FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.
| Pin Group | Name | Description |
|---|---|---|
| I/O | GPIO Banks | Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS) |
| Power | VCCIO, VCCINT, VCCPLL | Core, I/O, and PLL supply voltages |
| Ground | GND | Ground reference |
| Config | DATA, DCLK, nCSO | JTAG/AS/AP configuration interface |
| Clock | CLK, PLL | Dedicated clock inputs and PLL feedback |
| Transceiver | TX/RX (if applicable) | High-speed serial transceiver lanes |
| Model | Manufacturer | Key Difference |
|---|---|---|
| XC7K325T | Xilinx | Kintex-7, 326K LE, Artix-class performance |
| ECP5-85 | Lattice | 84K LUT, low-cost mid-range alternative |
| iCE40HX8K | Lattice | 8K LUT, ultra-low-cost small form factor |
