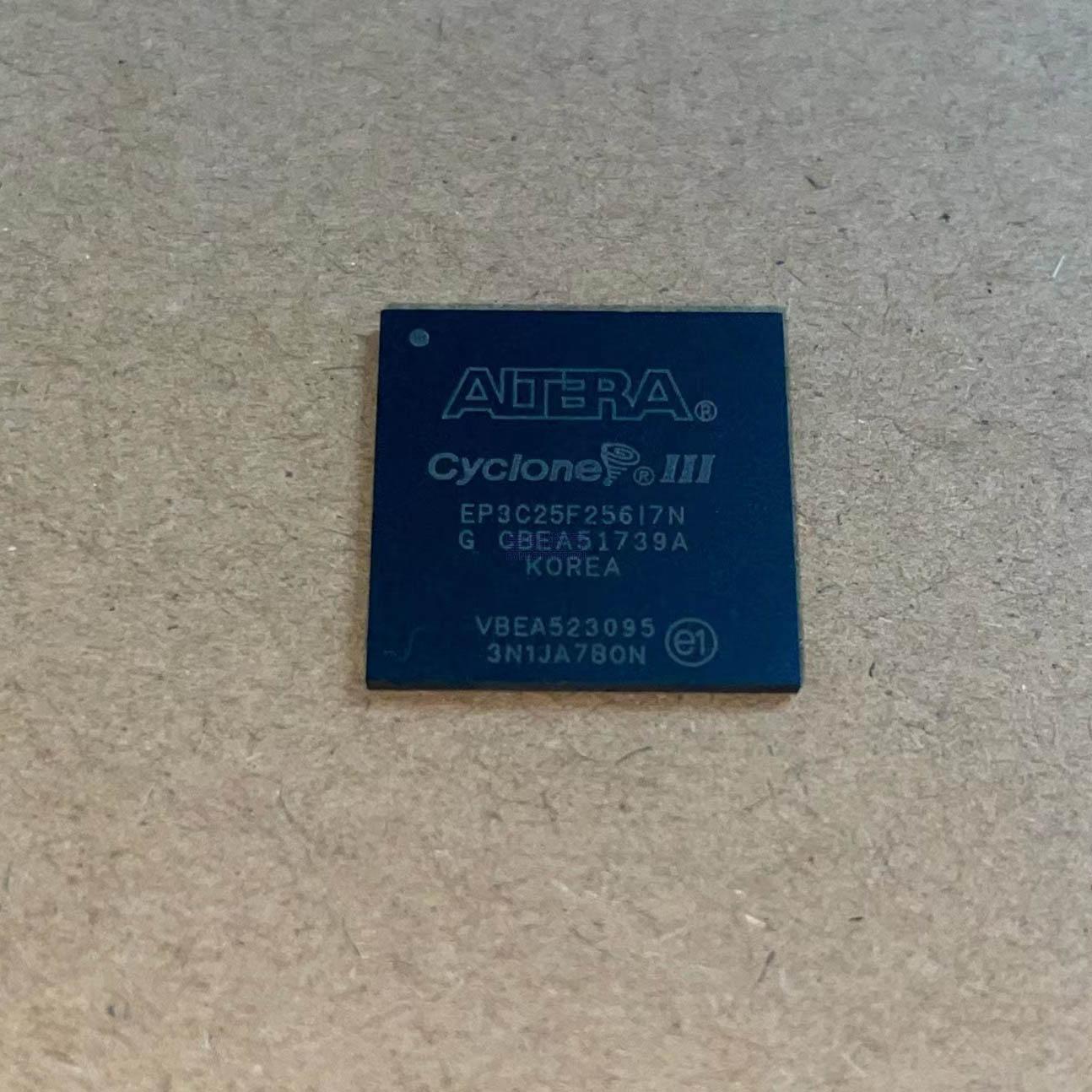

EP3C25F256I7N

The EP3C25F256I7N is an industrial-grade FPGA from Altera’s Cyclone III family — the third generation of low-cost Cyclone FPGAs, built on TSMC’s 65nm low-power process technology. Compared to Cyclone II, Cyclone III devices offer roughly 2-3x more logic per equivalent package, significantly lower static power (due to the smaller process geometry), enhanced DSP capabilities, and improved I/O performance at similar price points. The EP3C25 variant is a mid-density member with 24,624 logic elements, striking a balance between resource count and cost for medium-complexity designs. The ‘I7’ suffix indicates industrial temperature range (-40°C to +100°C junction) with -7 speed grade, making this device suitable for industrial and automotive applications that require reliable operation over wide temperature extremes. The Cyclone III logic architecture is based on a refined logic element (LE) with a 4-input look-up table and a programmable register, organized into 1,539 logic array blocks (LABs) of 16 LEs each. The memory system includes 66 M9K RAM blocks (each 9,216 bits), totaling 594 Kbits of embedded memory that can be configured as single-port, dual-port, or FIFO buffers. For DSP applications, 66 embedded 18×18-bit multipliers provide dedicated hardware multiplication resources — enough for high-performance FIR filters, FFT accelerators, and other signal processing functions. Four phase-locked loops (PLLs) provide flexible clock synthesis with frequency synthesis, phase shifting, and spread-spectrum clocking support. Twenty global clock networks distribute clock signals with low skew across the device. The 256-pin FBGA package provides up to 182 user I/O pins organized into multiple independent I/O banks, supporting a comprehensive set of single-ended and differential I/O standards including LVDS at up to 840 Mbps. External memory interfaces support DDR2 SDRAM at up to 333 Mbps, plus DDR, SDR SDRAM, and QDRII SRAM. The device is fully supported by Altera’s Quartus II development software and the extensive library of Altera and third-party IP cores including the Nios II soft processor, DDR memory controllers, Ethernet MACs, and various DSP and interface functions. With its combination of logic density, DSP capability, low power, industrial temperature rating, and low cost, the EP3C25F256I7N is well-suited for industrial automation, automotive, video processing, and communications applications.

The Cyclone III FPGA is a SRAM-based programmable logic device whose functionality is determined by configuration data stored in internal SRAM cells. When power is first applied, the FPGA has no defined function and must be configured by loading a configuration bitstream. Configuration can occur through several modes: Active Serial (AS) mode where the FPGA loads data from a serial configuration flash device; Active Parallel (AP) mode for parallel flash; Passive Serial (PS) or Fast Passive Parallel (FPP) mode where an external controller loads the configuration data; or via the JTAG interface for in-system programming and debugging. Once configured, the FPGA implements the user’s logic design. The core logic building block is the logic element (LE), containing a 4-input look-up table (LUT) for implementing combinational logic functions, a programmable flip-flop for sequential circuits, carry-in/carry-out chains for arithmetic operations, and register chain connections. LEs are organized into 16-LE groups called logic array blocks (LABs), with each LAB having dedicated local routing resources for fast intra-LAB connections. The M9K memory blocks are 9,216-bit true dual-port SRAM blocks that can be configured in various depth and width combinations, supporting single-port, simple dual-port, true dual-port, shift register, ROM, and FIFO modes. The embedded multiplier blocks provide 18×18-bit signed/unsigned multiplication in hardware, each also configurable as two independent 9×9 multipliers for lower-precision applications. These multiplier blocks significantly enhance DSP performance by offloading multiplication from the general-purpose logic fabric. The four PLLs provide advanced clock management including frequency multiplication and division, phase shifting with fine resolution, spread-spectrum clocking for EMI reduction, and clock switchover for redundant clock sources. Twenty global clock networks with multiple clock control blocks provide flexible clock distribution with low skew across the entire device. The I/O structure features configurable I/O elements (IOEs) per pin, with each I/O bank supporting independent VCCIO voltages for interfacing with different logic families. Differential I/O support includes LVDS transmitters and receivers for high-speed serial data transfer. The routing architecture uses a hierarchical structure with local, row, column, and global routing channels of varying lengths to connect all device resources efficiently. When implementing a design, Quartus II synthesis converts the user’s HDL description (Verilog/VHDL) into a netlist of logic elements and other resources. The fitter then performs placement (assigning logic to specific physical locations) and routing (configuring the interconnect resources), followed by timing analysis to verify that the design meets its speed requirements. The resulting configuration bitstream is then used to program the device.

The EP3C25F256I7N is available in a 256-pin FineLine BGA package (17mm × 17mm). Major pin groups:

Note: Exact I/O count and assignment depends on package and configuration. Refer to the official Cyclone III EP3C25 datasheet, pin list files, and Quartus II pin planner for complete pin assignments, I/O bank configurations, and electrical specifications.

• Industrial Control & Automation: Used in PLCs, industrial sensor interfaces, motion controllers, and factory automation systems for real-time signal processing, custom control logic, and industrial network protocol implementation, with the industrial temperature range ensuring reliable operation in harsh environments
• Automotive Electronics: Deployed in automotive infotainment, ADAS pre-processing, and body electronics (with AEC-Q100 qualified variants), leveraging the -40°C to +100°C temperature range for under-hood and cabin applications
• Video Processing & Displays: Used in video scalers, format converters, video wall controllers, display timing controllers, and image processing pipelines where parallel pixel processing and high-speed I/O are required
• Communications & Networking: Found in network switches, wireless backhaul equipment, protocol converters, and telecom access equipment for packet processing, line interface functions, and protocol bridging
• Motor Control & Drives: Used in industrial servo drives, VFDs, and robotics for high-speed current loop implementation, multi-channel PWM generation, encoder interfaces, and FOC algorithm acceleration
• Medical Equipment: Deployed in medical imaging front-ends, patient monitors, and diagnostic equipment for signal processing, data acquisition, and custom interface logic, where reliability and temperature stability are critical
• Nios II Embedded Systems: Implements complete Nios II soft processor systems with custom hardware accelerators, memory interfaces, and peripherals — providing a flexible, software-programmable platform with hardware acceleration capabilities
• Test & Measurement: Used in oscilloscopes, logic analyzers, data acquisition systems, and custom test equipment for high-speed data capture, signal processing, and custom trigger logic implementation
