MJL21196

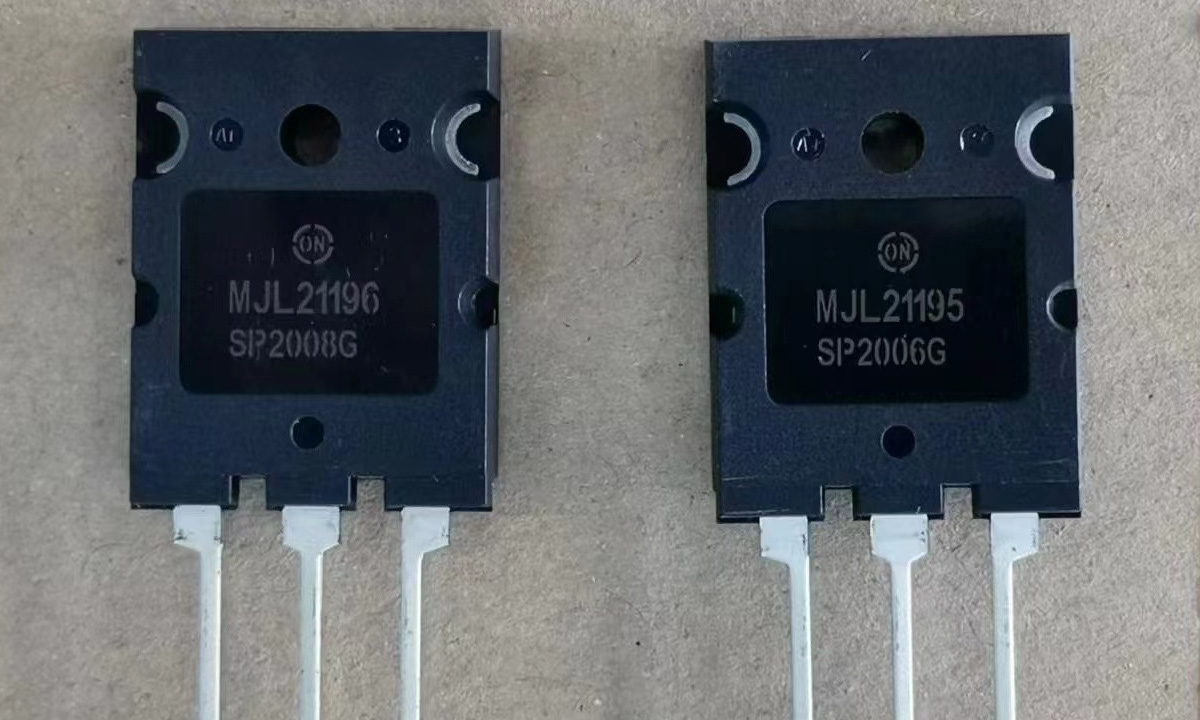

The MJL21196 is an NPN silicon power transistor from ON Semiconductor, forming the NPN half of the complementary MJL21195/MJL21196 audio transistor pair. Originally developed by Motorola Semiconductor, these devices utilize Perforated Emitter technology that provides superior performance characteristics compared to conventional power transistor designs. The perforated emitter structure consists of an array of small emitter segments distributed across the chip surface, resulting in more uniform current distribution, reduced current crowding, and significantly improved gain linearity – a critical parameter for low-distortion audio reproduction. With its 250V collector-emitter voltage rating, 16A continuous collector current, and 200W power dissipation capacity, the MJL21196 can deliver substantial output power when used in push-pull configurations. The fT of 4 MHz minimum ensures adequate frequency response for audio bandwidth applications. The device features a high safe operating area (SOA), rated at 2.5A at 80V for 1 second, providing ruggedness against transient overloads and reactive load conditions encountered with loudspeaker loads. Packaged in the robust TO-264 (TO-3P) through-hole package with a thermal resistance of 0.7°C/W (junction to case), the MJL21196 can be mounted on appropriate heatsinks for effective thermal management in high-power amplifier designs. The ‘G’ suffix version (MJL21196G) indicates the Pb-free variant. The MJL21195/21196 complementary pair is highly regarded in the audiophile community for its smooth, natural sound quality and reliability.

The MJL21196 is an NPN-type bipolar junction transistor where current flows from collector to emitter when the base-emitter junction is forward biased (base positive relative to emitter). The current gain (hFE or β) is the ratio of collector current to base current, typically greater than 25 at 8A collector current for this device. The Perforated Emitter technology is the key innovation that sets this device apart from conventional power transistors. Instead of a single large emitter area, the emitter is divided into a pattern of many smaller emitter segments. This structure provides several significant benefits: 1) Uniform current distribution – current spreads evenly across the entire active area rather than crowding at the edges, improving power handling capability; 2) Reduced emitter resistance – the parallel connection of many small emitter segments lowers the effective emitter resistance, improving gain and efficiency; 3) Enhanced gain linearity – gain remains more constant across the full operating current range, reducing harmonic distortion in audio applications; 4) Improved thermal characteristics – better heat distribution across the die. In a typical Class AB push-pull audio amplifier, the MJL21196 (NPN) conducts during the positive half of the audio waveform, while its PNP complement (MJL21195) conducts during the negative half. Both devices are biased slightly into conduction at idle to minimize crossover distortion. The high SOA ensures that both transistors can survive the instantaneous high-voltage, high-current conditions that occur when driving reactive loudspeaker loads with complex musical transients.

• High-fidelity (Hi-Fi) audio power amplifier output stages
• Complementary push-pull configurations with MJL21195
• Linear regulated power supply series-pass elements
• Precision servo and positioner drive circuits
• Industrial linear power amplifier stages
• High-current switching and power control applications
