M65847AFP

Digital echo processor IC with integrated ADC/DAC, CMOS technology, SSOP-24 package

8750

Effective Inventory
Go to Inquiry

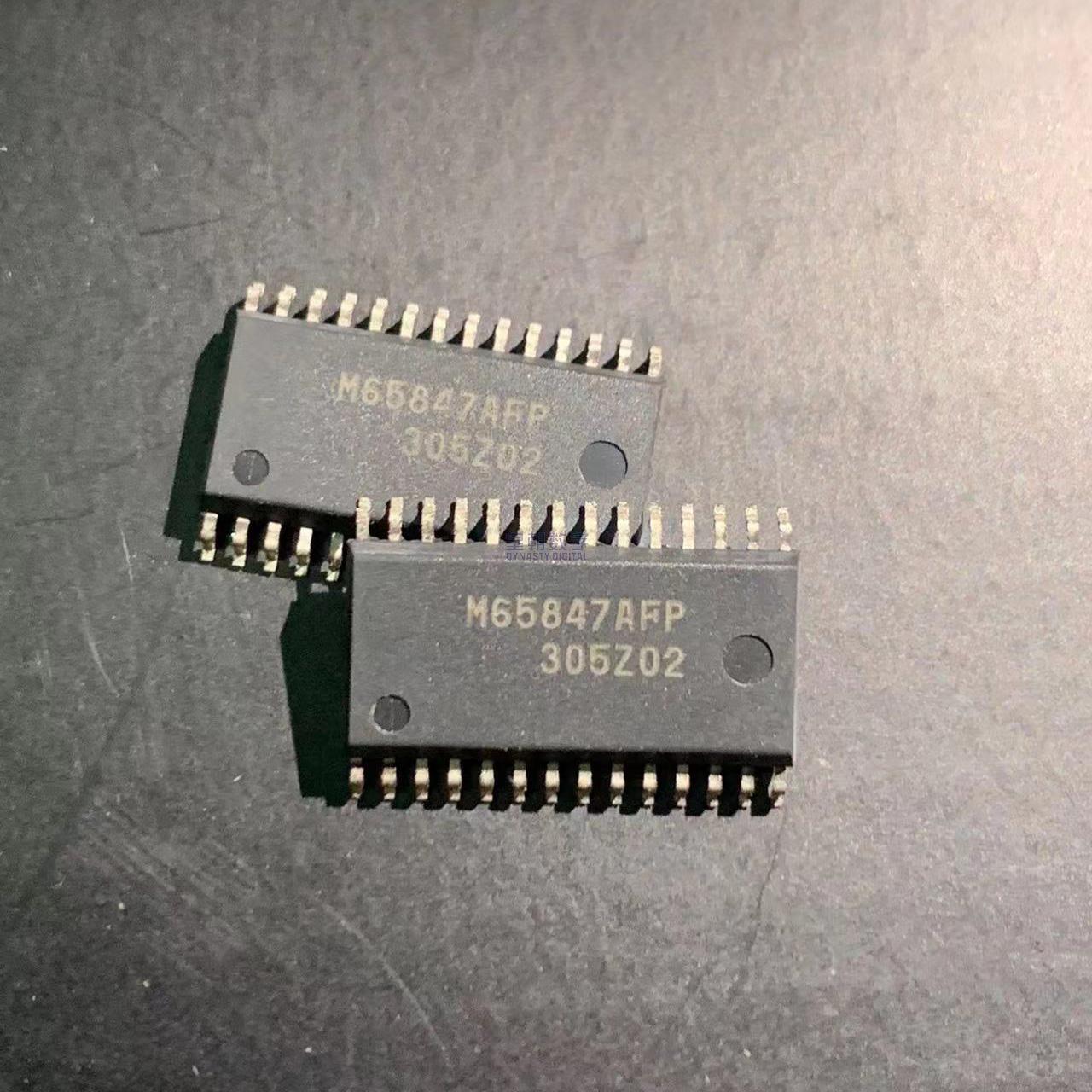

Image for reference only

Manufacturer Part：

M65847AFP

Package：

SSOP-24

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

KBPC5010

KBPC3510W

Description

Product Overview

The M65847AFP is a digital echo processor IC manufactured by Mitsubishi Electric. This CMOS-based device is designed for audio applications requiring digital echo and reverberation effects. It features integrated ADC/DAC converters and comes in a 24-pin shrink small outline package (SSOP), making it suitable for compact audio equipment designs including karaoke systems, audio mixers, and consumer audio products.

Key Specifications

Manufacturer Mitsubishi Electric
Type Digital Echo Processor
Technology CMOS
Supply Voltage 4.5V to 5.5V
Operating Temperature -20°C to +75°C
Package SSOP-24
Mounting Type Surface Mount

Features

  • Integrated digital echo/reverberation processing
  • Built-in ADC and DAC converters
  • Low power consumption CMOS technology
  • Wide operating voltage range
  • Compact SSOP package for space-constrained designs
  • Consumer-grade temperature range

Applications

  • Karaoke systems and audio mixers
  • Consumer audio equipment
  • Digital audio effect processors
  • Home entertainment systems
  • Portable audio devices

The M65847AFP is a digital echo processor IC produced by Mitsubishi Electric Semiconductor. Built on CMOS technology, this device integrates analog-to-digital and digital-to-analog converters to provide digital echo and reverberation effects for audio systems. The M65847AFP is part of Mitsubishi’s audio IC product line, designed specifically for consumer audio applications where digital sound processing is required. The device operates from a 4.5V to 5.5V supply voltage and features low power consumption, making it suitable for battery-powered and line-powered audio equipment. The SSOP-24 package provides a compact form factor ideal for space-constrained PCB designs in consumer electronics. The M65847AFP is commonly used in karaoke machines, audio mixers, and home theater systems that require digital echo effects.

The M65847AFP operates by converting analog audio input signals to digital form through its integrated analog-to-digital converter (ADC). The digital audio data is then processed by the internal digital signal processing (DSP) core, which applies echo and reverberation algorithms. The processed digital signal is converted back to analog form through the integrated digital-to-analog converter (DAC). The device uses volatile memory storage for the delayed audio samples, creating the echo effect by mixing the original signal with delayed copies. Control of echo parameters such as delay time, feedback level, and mix ratio is typically achieved through external control pins or serial interface, allowing users to adjust the effect characteristics according to application requirements. The CMOS design ensures low power consumption while maintaining high signal quality.

Pin Name Type Function
1 VDD Power Positive power supply
2 AGND Ground Analog ground
3 VIN Input Analog audio input
4 VREF Input Voltage reference input
5 VOUT Output Analog audio output
6 DGND Ground Digital ground
7-10 CTRL1-4 Input Control pins for echo parameters
11-14 GPIO I/O General purpose I/O pins
15-20 DATA0-5 I/O Data bus pins
21 CLK Input Clock input
22 CS Input Chip select
23 MICIN Input Microphone input
24 NC – No connection
  • Karaoke machines and digital audio effect processors
  • Consumer audio mixers and preamplifiers
  • Home theater and entertainment systems
  • Portable audio equipment and PA systems
  • Musical instrument effect pedals
Manufacturer Part Number Package Notes
Mitsubishi M65830AFP SSOP-24 Similar digital echo processor
Mitsubishi M65850FP DIP-24 DIP package version
Mitsubishi M65855FP DIP-24 Digital echo with surround
Various PT2399 DIP-16/SOP-16 Popular echo processor alternative
Various PT2395 DIP-24 Karaoke echo processor
