Home > Integrated Circuits ICs > EP4CE15F23C8N

EP4CE15F23C8N

Cyclone IV E FPGA, 15,408 LEs, M9K RAM, 18x18 multipliers, FBGA, C8 (commercial)

3009

Effective Inventory
Go to Inquiry

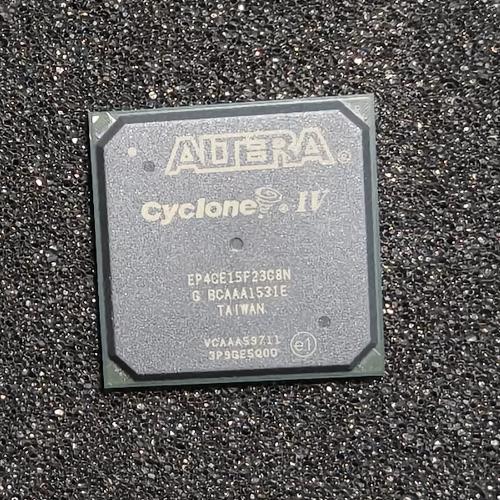

Image for reference only

Manufacturer Part：

EP4CE15F23C8N

Package：

FBGA-484

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

EP4CE15F23C8N is an Intel/Altera Cyclone IV E EP4CE15 FPGA, 15K LEs, 484-pin FBGA, commercial grade.

Key Specifications

Type Cyclone IV E FPGA
Logic Elements 15,408 LEs
Embedded RAM 516,096 bits
Multipliers 112 (18×18)
Package 484-pin FBGA (F484)
Speed Grade C8
Series EP4CE15

Features

  • 15K LE Cyclone IV E FPGA
  • 516K bits embedded M9K RAM
  • 112 embedded 18×18 multipliers
  • Cost-optimized for volume production

Applications

Refer to manufacturer datasheet for detailed application information and design guidelines.

EP4CE15F23C8N is an Intel/Altera Cyclone IV E EP4CE15 FPGA, 15K LEs, 484-pin FBGA, commercial grade.

The EP4CE15F23C8N is a Cyclone IV E FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.

Pin Group Name Description
I/O GPIO Banks Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS)
Power VCCIO, VCCINT, VCCPLL Core, I/O, and PLL supply voltages
Ground GND Ground reference
Config DATA, DCLK, nCSO JTAG/AS/AP configuration interface
Clock CLK, PLL Dedicated clock inputs and PLL feedback
Transceiver TX/RX (if applicable) High-speed serial transceiver lanes
  • Digital signal processing and filtering
  • Custom protocol implementation (UART, SPI, I2C, PCIe)
  • Video and image processing pipelines
  • Motor control and industrial automation
  • Prototyping and glue logic integration
Model Manufacturer Key Difference
XC7K325T Xilinx Kintex-7, 326K LE, Artix-class performance
ECP5-85 Lattice 84K LUT, low-cost mid-range alternative
iCE40HX8K Lattice 8K LUT, ultra-low-cost small form factor
