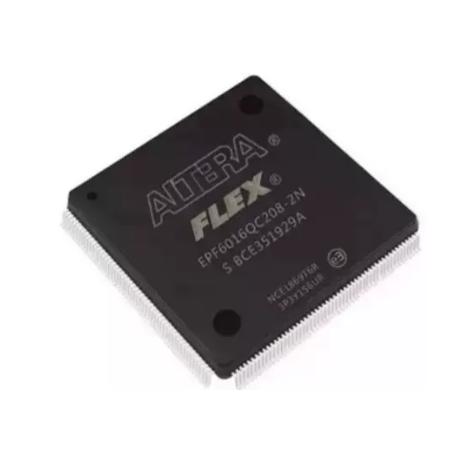

Image for reference only
EPF6016QC208-2N
208-pin PQFP
EPF6016QC208-2N is an Intel/Altera FLEX 6000 EPF6016 FPGA, 16K gates, 1,280 LEs, 208-pin PQFP, speed grade -2.
| Type | FLEX 6000 FPGA |
| Gates | 16,000 |
| Logic Elements | 1,280 LEs |
| Package | 208-pin PQFP (Q208) |
| Speed Grade | -2 |
| Series | EPF6016 |
Refer to manufacturer datasheet for detailed application information and design guidelines.
EPF6016QC208-2N is an Intel/Altera FLEX 6000 EPF6016 FPGA, 16K gates, 1,280 LEs, 208-pin PQFP, speed grade -2.
The EPF6016QC208-2N is a FLEX 6000 FPGA from Intel/Altera. It uses a lookup table (LUT)-based fabric with configurable logic elements (LEs) that implement combinatorial and sequential logic. Embedded M9K/M4K memory blocks provide on-chip RAM, ROM, and FIFO functions. Dedicated DSP multipliers accelerate arithmetic operations. A programmable interconnect matrix routes signals between logic, memory, and I/O elements. Configuration is loaded from external flash or via JTAG/AS programming. The device supports multiple I/O standards including LVDS, SSTL, and HSTL for interfacing with diverse external devices.
| Pin Group | Name | Description |
|---|---|---|
| I/O | GPIO Banks | Programmable I/O with multiple standard support (LVDS, SSTL, HSTL, LVCMOS) |
| Power | VCCIO, VCCINT, VCCPLL | Core, I/O, and PLL supply voltages |
| Ground | GND | Ground reference |
| Config | DATA, DCLK, nCSO | JTAG/AS/AP configuration interface |
| Clock | CLK, PLL | Dedicated clock inputs and PLL feedback |
| Transceiver | TX/RX (if applicable) | High-speed serial transceiver lanes |
| Model | Manufacturer | Key Difference |
|---|---|---|
| XC7K325T | Xilinx | Kintex-7, 326K LE, Artix-class performance |
| ECP5-85 | Lattice | 84K LUT, low-cost mid-range alternative |
| iCE40HX8K | Lattice | 8K LUT, ultra-low-cost small form factor |
