EPM2210F256C4N

MAX II CPLD, 2,210 macrocells, 8Kbit UFM, instant-on flash, 1.8V/2.5V/3.3V I/O

4708

Effective Inventory
Go to Inquiry

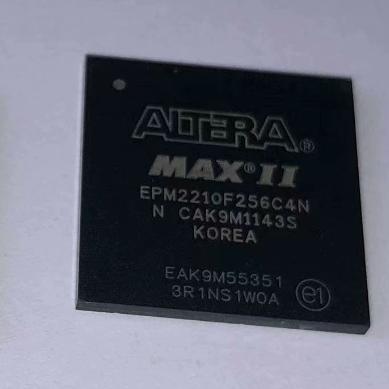

Image for reference only

Manufacturer Part：

EPM2210F256C4N

Package：

256-pin FBGA

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

EPM2210F256C4N is an Intel/Altera MAX II EPM2210 CPLD, 2,210 macrocells, 256-pin FBGA, commercial grade, speed grade 4.

Key Specifications

Type MAX II CPLD
Macrocells 2,210
UFM 8,192 bits user flash
Package 256-pin FBGA (F256)
Speed Grade C4
Series EPM2210

Features

  • 2,210 macrocell MAX II CPLD
  • 8K bits user flash memory (UFM)
  • In-system programmable
  • 256-pin FBGA package

Applications

Refer to manufacturer datasheet for detailed application information and design guidelines.

EPM2210F256C4N is an Intel/Altera MAX II EPM2210 CPLD, 2,210 macrocells, 256-pin FBGA, commercial grade, speed grade 4.

The EPM2210F256C4N is a MAX II CPLD from Intel/Altera. It uses a macrocell-based architecture with programmable AND/OR logic arrays and flip-flops. The Macrocells are grouped into Logic Array Blocks (LABs) interconnected by a programmable routing matrix. User Flash Memory (UFM) provides non-volatile storage. Configuration is instant-on from on-chip flash, enabling the device to be operational immediately after power-up without external configuration. I/O elements support multiple standards and feature programmable drive strength and slew rate.

Pin Group Name Description
I/O GPIO Programmable I/O with multiple drive strength settings
Power VCC, VCCIO Core and I/O supply (1.8V/2.5V/3.3V)
Ground GND Ground reference
JTAG TDI, TDO, TMS, TCK IEEE 1149.1 JTAG boundary scan and ISP
Clock CLK Global clock input
  • Address decoding and glue logic
  • Power-on reset and sequencing control
  • I2C/SPI bus bridging
  • State machine implementation
  • Board-level interface adaptation
Model Manufacturer Key Difference
XC2C128 Xilinx CoolRunner-II, 128 macrocell, ultra-low power
MACHXO2 Lattice 6K LUT CPLD with embedded flash
