ESD5Z5.0T1G

5V bidirectional ESD protection diode, ±15kV ESD, SOD-523 package, onsemi ESD5Z series

56789

Effective Inventory
Go to Inquiry

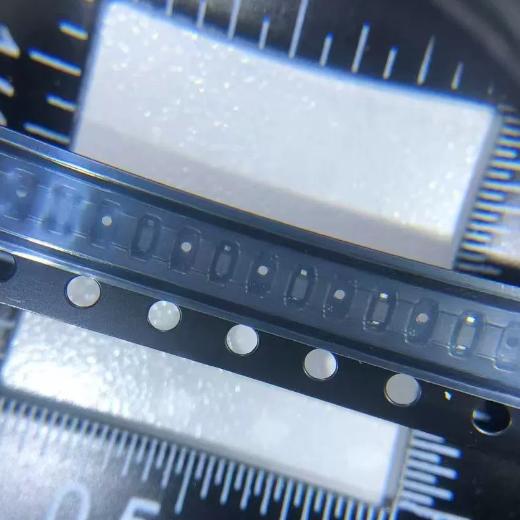

Image for reference only

Manufacturer Part：

ESD5Z5.0T1G

Package：

SOD-523 (SC-79)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The ESD5Z5.0T1G is a 5.0V ESD protection diode from onsemi, designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage events. Packaged in the ultra-compact SOD-523 package, this bidirectional ESD protection device features low clamping voltage and low capacitance, making it ideal for high-speed data line and I/O protection in portable electronics, communication equipment, and computer peripherals.

Key Specifications

Parameter Value
Manufacturer onsemi
Type Bidirectional ESD Protection Diode
Working Voltage (V_RWM) 5.0V
Breakdown Voltage 6.0V min (I_R = 1mA)
Clamping Voltage 15V @ I_PP = 2A (8/20µs pulse)
Peak Pulse Current 2A (8/20µs waveform)
ESD Rating ±15kV (contact), ±15kV (air)
Capacitance 60pF @ V_R = 0V, 1MHz
Leakage Current 100nA max @ V_R = 5V
Package SOD-523 (SC-79, 0603 equivalent)
Operating Temperature -55°C to +150°C

Features

  • ESD protection exceeding IEC 61000-4-2 Level 4
  • ±15kV contact and ±15kV air discharge ESD rating
  • Low clamping voltage for effective protection
  • Bidirectional protection for AC signals
  • Ultra-compact SOD-523 package
  • Low leakage current for minimal power loss
  • Fast response time: < 1ns
  • RoHS compliant and lead-free
  • Moisture sensitivity level 1
  • Halogen-free / Pb-free

Applications

  • USB and other data port protection
  • Portable electronics and mobile devices
  • Computer peripherals and interfaces
  • Telecommunication equipment
  • Power supply line ESD protection
  • Consumer electronics
  • Automotive electronics (AEC-Q101 qualified versions)

The ESD5Z5.0T1G is a bidirectional ESD protection diode from onsemi, engineered to provide robust electrostatic discharge protection for sensitive electronic components. With a working voltage of 5.0V and ESD ratings of ±15kV for both contact and air discharge (exceeding IEC 61000-4-2 Level 4), this device offers superior protection for 5V signal and power lines. Its bidirectional configuration makes it suitable for protecting AC signal lines where voltages can swing both positive and negative. The ultra-compact SOD-523 package minimizes board space requirements, making it ideal for high-density PCB designs in portable and consumer electronics. With a fast response time of less than 1 nanosecond, low leakage current, and low clamping voltage, the ESD5Z5.0T1G provides effective transient voltage suppression without interfering with normal circuit operation.

An ESD protection diode operates on the principle of avalanche breakdown and Zener action to divert potentially damaging transient currents away from sensitive components. Under normal operating conditions (below the working voltage), the diode has very high impedance with minimal leakage current, effectively acting as an open circuit that does not affect circuit operation. When an ESD event or transient voltage spike occurs that exceeds the breakdown voltage, the diode rapidly enters avalanche breakdown mode (< 1ns response time), providing a low-impedance path that diverts the surge current to ground. The low clamping voltage ensures that the protected component never sees a voltage higher than the clamp level. For bidirectional devices, this protection works for both positive and negative transients. Once the transient passes, the diode automatically resets to its high-impedance state.

Pin Description
Cathode/Anode Protection line side (connect to signal/power line)
Anode/Cathode Ground side (connect to GND)

Bidirectional ESD diode – polarity does not matter for AC signals. For DC applications, connect either terminal to the line and the other to ground.

  • USB port and data line ESD protection
  • HDMI, DisplayPort, and other high-speed interfaces
  • Smartphones, tablets, and wearable electronics
  • Computer peripherals and accessories
  • Telecommunication and networking equipment
  • Power supply input and output protection
  • Consumer electronics and home appliances
  • Automotive infotainment and body electronics
Model Manufacturer V_RWM ESD Package
SMBJ5.0CA Littelfuse 5V ±15kV SMB
PESD5V0L2UV NXP 5V ±20kV DSN1410
ESD9X5.0ST5G onsemi 5V ±15kV SOD-923
TPD2E001 TI 5.5V ±15kV SOT-23
