FMH23N50E

N-Channel Power MOSFET, 500V, 23A, 0.28Ω, TO-3P, Fuji SuperFAP-E3

4440

Effective Inventory
Go to Inquiry

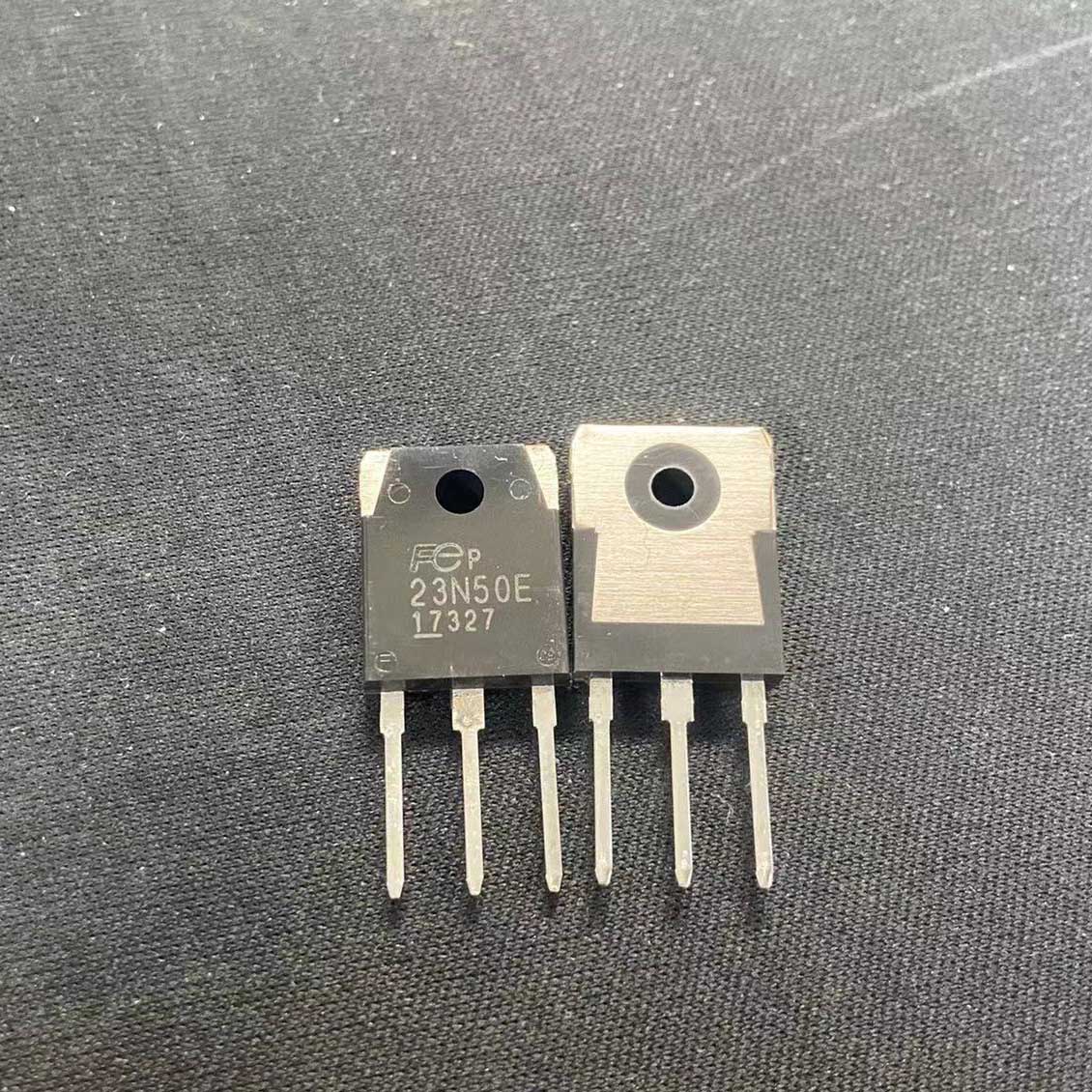

Image for reference only

Manufacturer Part：

FMH23N50E

Package：

TO-3P(Q) (TO-247-3, 15.9x20.3x4.8mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The FMH23N50E is a Fuji Electric product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.

Key Specifications

Package: TO-3P

Features

High reliability, wide operating range, compact TO-3P package

Applications

Industrial control, Consumer electronics, Communication equipment, Automotive electronics

The FMH23N50E is an N-channel power MOSFET from Fuji Electric’s SuperFAP-E3 series, featuring 500V drain-source voltage rating and 23A continuous drain current with 0.28Ω typical on-resistance. Packaged in a TO-3P(Q) through-hole package, it offers an optimal balance of low conduction losses and low switching noise characteristics. The device features a narrow gate threshold voltage band (3.0±0.5V), high avalanche durability, and controllable switching dv/dt via gate resistance. Designed for high-efficiency switching power supplies, UPS systems, and DC-DC converters where reliability and performance are critical.

As an N-channel enhancement-mode MOSFET, the FMH23N50E operates by applying a positive gate-source voltage to create an inversion layer in the P-type body region, enabling current flow between drain and source through the N-channel. The SuperFAP-E3 super junction structure allows for significantly lower on-resistance per unit area compared to conventional planar MOSFETs, reducing conduction losses. The optimized gate charge and output capacitance balance switching speed with noise performance. During turn-on, the gate voltage rises to the threshold level, then through the Miller plateau as the drain voltage falls. At turn-off, the process reverses. The built-in body diode provides a freewheeling path for inductive loads.

Pin Name Type Function
1 Gate (G) Input Gate control terminal, drive with 0-10V for switching
2 Drain (D) Power Drain terminal, connects to positive supply side
3 Source (S) Power Source terminal, connects to ground/return path
Tab Drain Power Mounting tab electrically connected to Drain
  • Switching power supplies and DC-DC converters
  • UPS (Uninterruptible Power Supply) systems
  • Motor control and inverter circuits
  • PFC (Power Factor Correction) circuits
  • AC-DC power adapters and chargers
  • Industrial power management
Manufacturer Part Number Package Notes
Fuji Electric FMH23N60E TO-3P 600V version, same current rating
Fuji Electric FMP23N50E TO-220 Same specs, TO-220 package
Infineon SPA23N50C3 TO-247 CoolMOS alternative, 500V 23A
ON Semiconductor FDH44N50 TO-247 500V 44A, lower Rds(on)
STMicroelectronics STW24NM50N TO-247 MDmesh alternative, 500V 22A
Recommend Parts

MT5016A

Three-phase bridge rectifier, 50A, 1600V, MT-35A QC terminal package, industrial power supply

Brand:

Package:

MT-35A (4-Square QC terminal, ~35x60mm base)

In stock:

5600pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry
