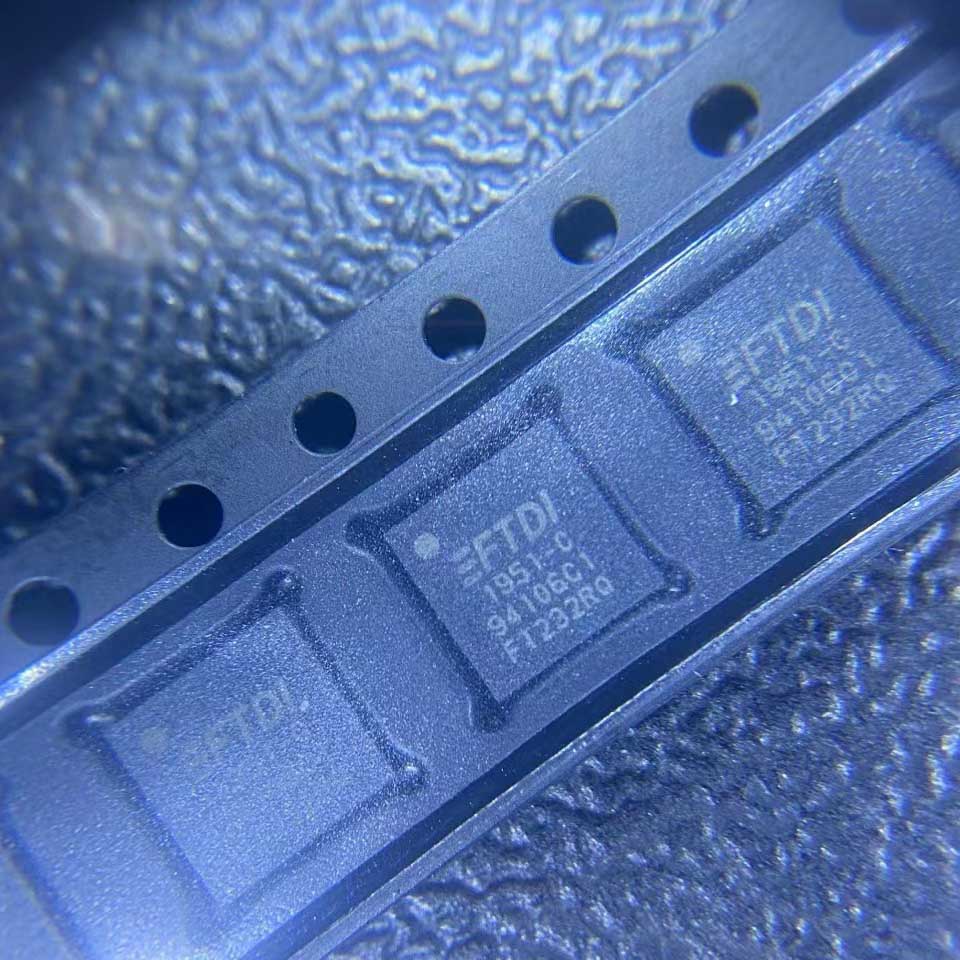

FT232RQ-REE

USB to UART IC, 3Mbps, QFN-32, Reel, FTDI FT232R Series

3363

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

FT232RQ-REE

Package：

QFN-32 (5x5mm, 0.5mm pitch), Tape & Reel

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The FT232RQ-REE is a Ftdi product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.

Key Specifications

Package: QFN-32

Features

High reliability, wide operating range, compact QFN-32 package

Applications

Industrial control, Consumer electronics, Communication equipment, Automotive electronics

The FT232RQ-REE is the tape-and-reel packaged version of FTDI’s popular FT232R USB to serial UART interface IC in a QFN-32 package. This single-chip solution provides a complete USB to asynchronous serial data transfer interface with full modem control handshaking signals. The device features integrated 1024-bit EEPROM for storing device descriptors and CBUS configuration, built-in USB termination resistors, and fully integrated clock generation with no external crystal required. Supporting data rates from 300 baud to 3 Mbaud at TTL levels with configurable I/O voltage from 1.8V to 5V, it provides flexible, reliable USB connectivity with royalty-free VCP and D2XX drivers across all major operating systems.

The FT232RQ functions as a full USB-to-UART bridge controller, implementing USB 2.0 full-speed (12Mbps) on the host side and a flexible UART interface on the application side. The on-chip Serial Interface Engine (SIE) and USB Protocol Engine handle all USB protocol processing, offloading this work from the host processor and requiring no custom USB firmware. Data received from the USB host is stored in the 128-byte receive FIFO and transmitted via the UART at the configured baud rate. UART receive data is stored in the 256-byte transmit FIFO and sent back over USB in bulk packets. The integrated +3.3V LDO regulator powers the USB transceiver and provides level conversion for UART signals. The UART interface supports 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity. The FTDIChip-ID unique serial number enables software licensing and security dongle applications.

Pin Name Type Function
1 TXD Output UART Transmit Data
2 RXD Input UART Receive Data
3 RTS# Output Request To Send (flow control)
4 CTS# Input Clear To Send (flow control)
5 DTR# Output Data Terminal Ready
6 DSR# Input Data Set Ready
7 DCD# Input Data Carrier Detect
8 RI# Input Ring Indicator
9-13 CBUS0-CBUS4 I/O Configurable Bus I/O (5 pins)
14 USBDP I/O USB Data Plus (D+)
15 USBDM I/O USB Data Minus (D-)
16 VCC Power Power supply (3.3V or 5V)
17 GND Power Ground
18 3V3OUT Power 3.3V LDO output (50mA max)
19 VCCIO Power UART/CBUS I/O supply (1.8-5V)
20 AGND Power Analog ground
21 RESET# Input Active low reset (internal PU)
22 VREGEN Input 3.3V regulator enable
23-32 GND / NC – Ground pads / No connect
Pad Thermal Pad GND Exposed thermal pad, connect to GND
  • USB to RS232/RS485 converter cables
  • Upgrading legacy peripherals to USB
  • MCU and FPGA development board debug
  • USB cellular and cordless phone data cables
  • USB smart card readers and security keys
  • USB industrial instrumentation and control
Manufacturer Part Number Package Notes
FTDI FT232RL SSOP-28 SSOP package, through-hole friendly
FTDI FT231XQ-R QFN-20 X-series, smaller QFN
FTDI FT2232HQ QFN-64 Dual channel USB-UART/FIFO/SPI
Silicon Labs CP2105 QFN-24 Dual USB-UART alternative
WCH CH340C SOP-16 Cost-effective alternative
