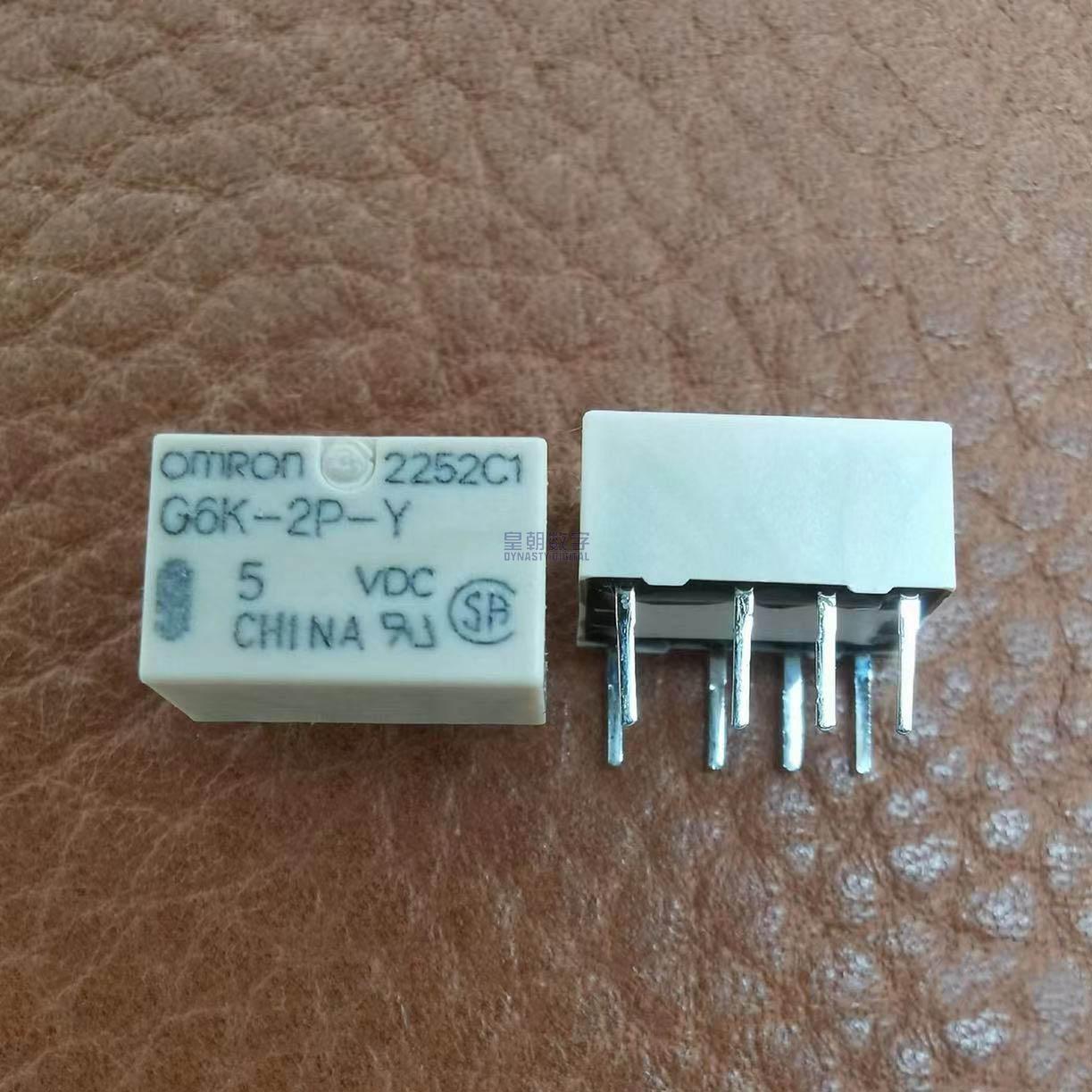

G6K-2P-Y-5VDC
DIP-8 Through Hole (10x6.5x5mm, 5.08mm pitch)
The G6K-2P-Y-5VDC is a Omron product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.
Package: DIP-8 SMD
High reliability, wide operating range, compact DIP-8 SMD package
Industrial control, Consumer electronics, Communication equipment, Automotive electronics
The G6K-2P-Y-5VDC is an ultra-miniature 2-pole signal relay from Omron’s G6K series, featuring DPDT (2 Form C) contact configuration with 5VDC coil in a through-hole DIP package. Measuring just 10 x 6.5 x 5.2mm and weighing only 0.7g, it is designed for high-density PCB mounting while providing reliable signal switching performance. The relay offers 1A contact rating at 30VDC (0.3A at 125VAC), 100mW coil power consumption, and high dielectric strength of 1500VAC between coil and contacts. With silver-gold clad contacts for low-level signal reliability and a fully sealed construction, this relay is ideal for telecommunications equipment, security systems, test instrumentation, and consumer electronics where space is at a premium.
The G6K-2P-Y is an electromechanical relay that operates on the principle of electromagnetic attraction. When 5VDC is applied to the coil (approximately 21.1mA at 237Ω coil resistance), the resulting magnetic field attracts the armature, causing the moving contact springs to switch position. In the de-energized state, each pole’s normally closed (NC) contact is connected to the common terminal. When energized, the armature moves, breaking the NC connection and making the normally open (NO) connection. The crossbar twin contact mechanism ensures stable contact pressure and wiping action. The 2-pole configuration provides two independent SPDT switches in a single package. Upon removal of coil voltage, a spring returns the armature to its resting position, restoring the NC contact. Operating time is approximately 3ms and release time is 1.4ms.
| Pin | Name | Type | Function |
|---|---|---|---|
| 1 | NO1 | Contact | Normally Open contact, Pole 1 |
| 2 | COM1 | Contact | Common terminal, Pole 1 |
| 3 | NC1 | Contact | Normally Closed contact, Pole 1 |
| 4 | NC2 | Contact | Normally Closed contact, Pole 2 |
| 5 | COM2 | Contact | Common terminal, Pole 2 |
| 6 | NO2 | Contact | Normally Open contact, Pole 2 |
| 7 | Coil + | Coil | Coil positive terminal (5VDC) |
| 8 | Coil – | Coil | Coil negative / ground |
| Manufacturer | Part Number | Package | Notes |
|---|---|---|---|
| Omron | G6K-2P-Y-12VDC | DIP-8 | 12V coil version |
| Omron | G6K-2P-Y-24VDC | DIP-8 | 24V coil version |
| Omron | G6K-2F-Y-5VDC | SMD | Surface-mount version |
| Omron | G6KU-2P-Y-5VDC | DIP-8 | Ultra-low profile variant |
| Panasonic | TX2-5V | DIP-8 | Comparable signal relay |
