GBJ5006

Bridge Rectifier, 50A, 600V, GBJ Package, High Current

12227

Effective Inventory
Go to Inquiry

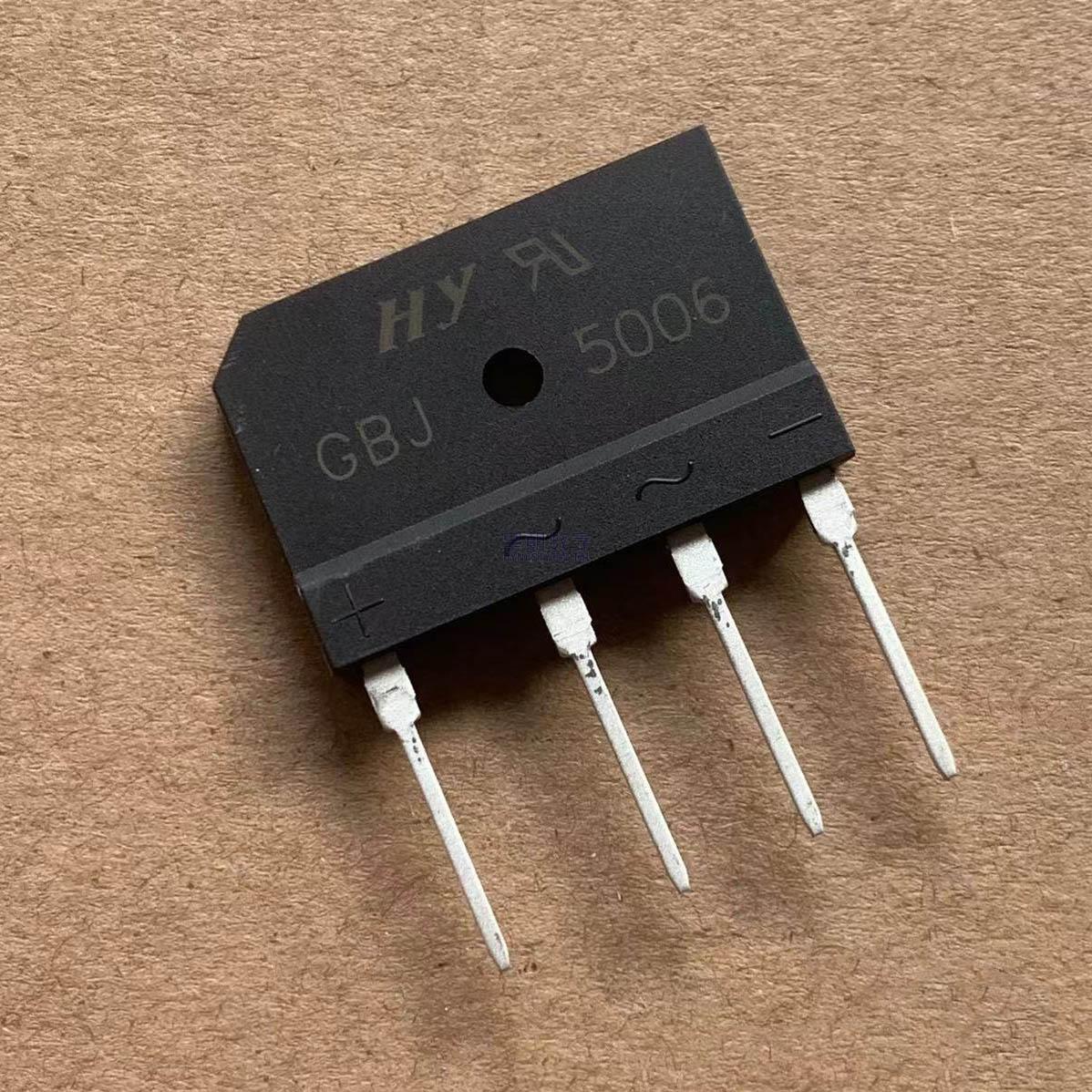

Image for reference only

Manufacturer Part：

GBJ5006

Package：

GBJ (30.3x4.8x19.7mm, 10.16mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The GBJ5006 is a Yangjie product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.

Key Specifications

Package: GBJ-4

Features

High reliability, wide operating range, compact GBJ-4 package

Applications

Industrial control, Consumer electronics, Communication equipment, Automotive electronics

The GBJ5006 is a high-current single-phase bridge rectifier rated at 50A average forward current and 600V peak reverse voltage in the industry-standard GBJ through-hole package. Featuring four glass passivated silicon diodes in a full-bridge configuration, it handles substantial power levels while maintaining efficient thermal performance through its integrated heat-spreading frame. With 500A surge current capability and low forward voltage drop (typically 1.0V), this device is well-suited for high-power AC-DC conversion in industrial power supplies, welding equipment, motor drives, and battery charging systems where high current capacity and reliable operation are essential.

The GBJ5006 operates on the full-wave bridge rectification principle using four diodes arranged in a bridge network. Two diodes conduct during the positive AC half-cycle and the other two during the negative half-cycle, ensuring unidirectional current flow through the load throughout both halves of the AC waveform. This full-wave rectification produces a pulsating DC output with twice the frequency of the AC input, which can be smoothed using capacitor or LC filters. The glass passivated diode junctions ensure stable reverse characteristics with low leakage current, while the robust GBJ package frame provides excellent thermal coupling for dissipating the heat generated at 50A continuous operation.

Pin Name Type Function
1 ~ (AC Input 1) Input AC line input 1 (L/N)
2 + (DC Output +) Output Positive DC output terminal
3 ~ (AC Input 2) Input AC line input 2 (N/L)
4 – (DC Output -) Output Negative DC output ground return
Body Isolated – UL94V-0 flame retardant plastic
  • High-power industrial power supplies
  • Welding and plasma cutting equipment
  • Motor drive front-end rectification
  • High-current battery chargers
  • Industrial automation power stages
  • Heavy-duty LED lighting systems
Manufacturer Part Number Package Notes
Yangjie GBJ5008 GBJ Same current, 800V rating
Yangjie GBJ5010 GBJ Same current, 1000V rating
Yangjie GBJ3506 GBJ 35A current, same voltage
Vishay GBPC5006 GBPC 50A 600V in GBPC square package
HY Electronic GBJ5006 GBJ Alternative manufacturer
