GBU1010

Bridge Rectifier, 10A, 1000V, GBU Package, Glass Passivated

3220

Effective Inventory
Go to Inquiry

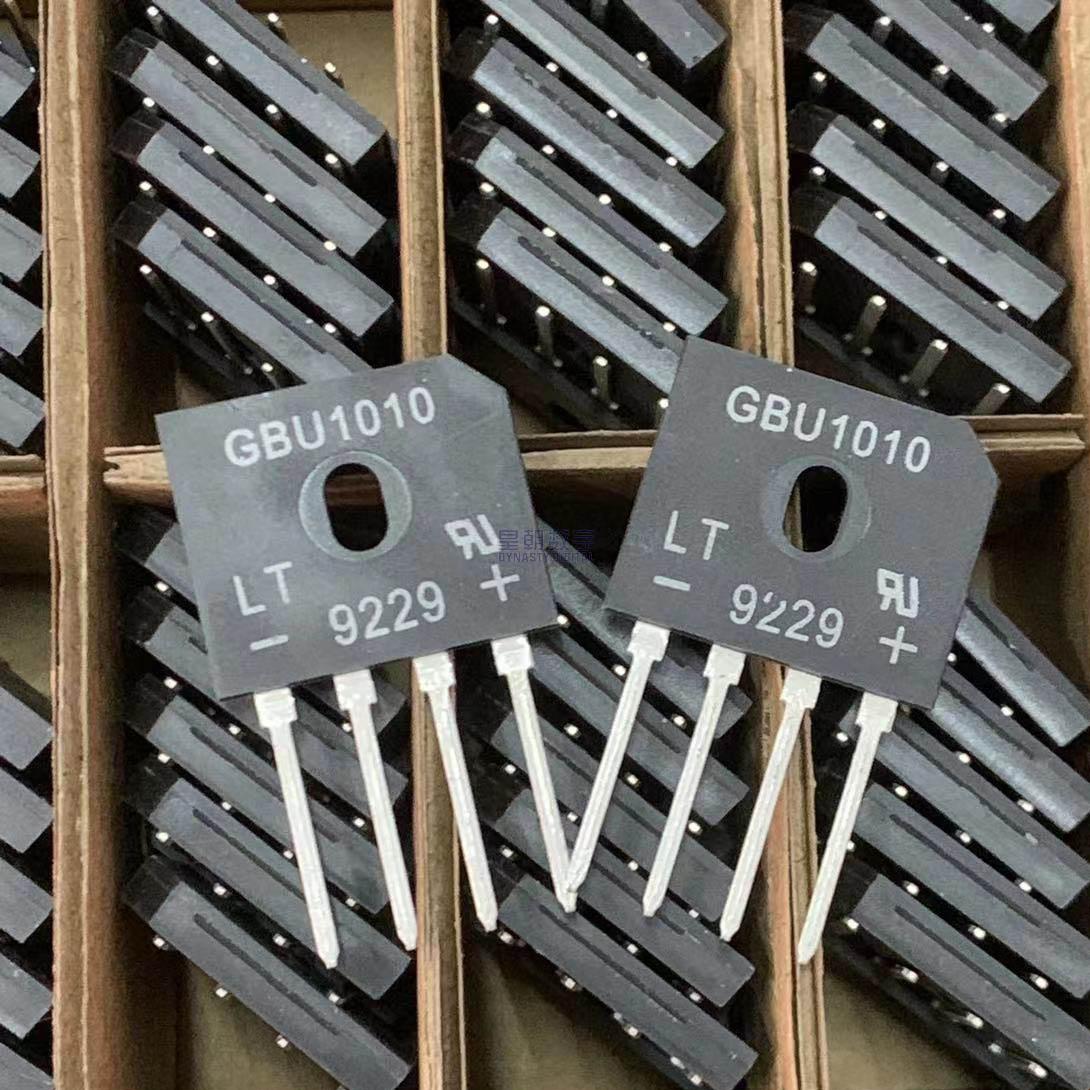

Image for reference only

Manufacturer Part：

GBU1010

Package：

GBU (10.9x4.7x6.1mm, 5.08mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The GBU1010 is a Yangjie product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.

Key Specifications

Package: GBU-4

Features

High reliability, wide operating range, compact GBU-4 package

Applications

Industrial control, Consumer electronics, Communication equipment, Automotive electronics

The GBU1010 is a compact single-phase glass passivated bridge rectifier with 10A forward current and 1000V reverse voltage rating, packaged in the small GBU through-hole form factor. This miniature bridge rectifier integrates four silicon diodes in a full-wave bridge configuration, providing space-efficient AC-to-DC conversion. The GBU package with its compact dimensions and low profile is ideal for space-constrained PCB designs. Featuring glass passivated junctions for reliability and high surge capability, this device serves low-to-medium power applications including consumer power adapters, LED drivers, set-top boxes, and general-purpose power supplies.

The GBU1010 performs full-wave rectification using four diodes in a bridge topology. In each half-cycle of the AC input, two diodes conduct to direct current through the load in the same direction. The glass passivated chip junctions provide stable electrical characteristics with low reverse leakage current. The compact GBU package mounts through the PCB with two AC input pins and two DC output pins, providing a minimal footprint solution. Despite its small size, the internal frame provides sufficient heat dissipation for continuous 10A operation with appropriate PCB copper area for thermal management.

Pin Name Type Function
1 ~ (AC1) Input AC input terminal 1
2 + (DC+) Output Positive DC output
3 ~ (AC2) Input AC input terminal 2
4 – (DC-) Output Negative DC output / GND
Body Isolated – Epoxy case, RoHS compliant
  • Consumer electronics power adapters
  • LED lighting drivers and ballasts
  • Set-top boxes and networking equipment
  • Low-power battery chargers
  • Household appliances
  • General-purpose AC-DC rectification
Manufacturer Part Number Package Notes
Yangjie GBU1006 GBU Same current, 600V rating
Yangjie GBU1008 GBU Same current, 800V rating
Yangjie GBU1510 GBU 15A current, same voltage
Diodes Inc GBU1010 GBU Direct equivalent
HY Electronic GBU1010 GBU Alternative manufacturer
