4223

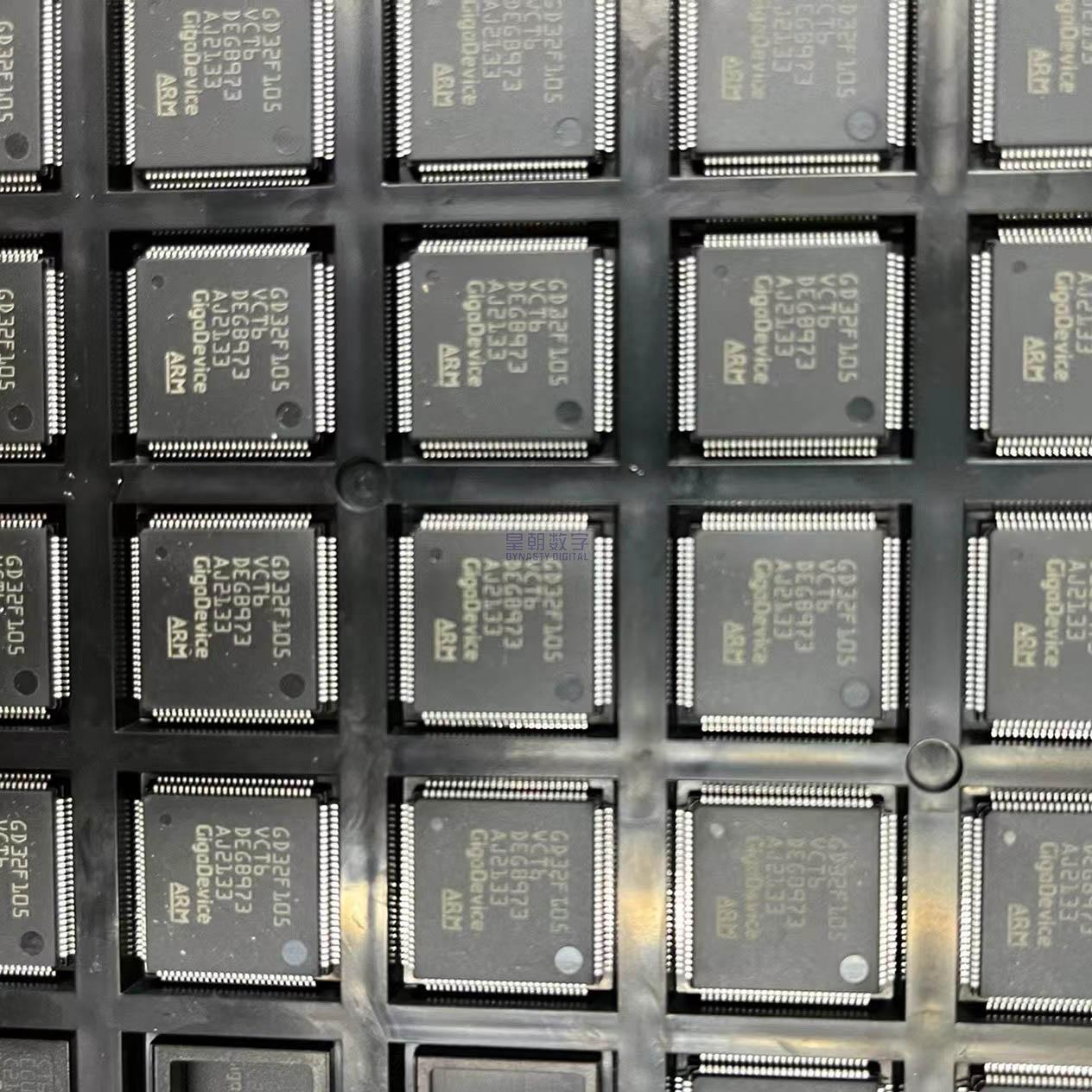

Image for reference only
GD32F105VCT6
LQFP-100 (14x14mm, 0.5mm pitch)
The GD32F105VCT6 is a Gigadevice product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.
Package: LQFP-100
High reliability, wide operating range, compact LQFP-100 package
Industrial control, Consumer electronics, Communication equipment, Automotive electronics
The GD32F105VCT6 is a connectivity-line 32-bit microcontroller from GigaDevice based on ARM Cortex-M3 core at 108 MHz. It features 256KB Flash and 96KB SRAM in an LQFP-100 package with up to 80 GPIO pins. Key connectivity features include USB 2.0 Full-Speed OTG, dual CAN 2.0B interfaces, and EXMC external memory controller. The device also offers 5 USARTs, 2 I2C, 3 SPI, 2 I2S, and SDIO interfaces. With 2 ADC units (16 channels) and 2 DAC units, it serves applications requiring rich connectivity such as industrial gateways, USB devices, and networked embedded systems.
The GD32F105VCT6 employs a Cortex-M3 core with NVIC supporting up to 43 interrupt channels. The memory architecture includes 256KB Flash with prefetch buffer and 96KB SRAM in two banks. The USB FS OTG controller supports both Host and Device modes with integrated PHY. The EXMC (External Memory Controller) provides 8/16-bit interface to external SRAM, NOR Flash, and NAND Flash. The clock system includes PLL, internal RC, and external crystal options. Two CAN 2.0B controllers enable multi-node industrial communication networks. DMA controllers offload data transfer between peripherals and memory, reducing CPU overhead.
| Port | Pins | Key Functions |
|---|---|---|
| PA0-PA15 | 16 | ADC, USART, SPI, TIM, USB_DM/DP |
| PB0-PB15 | 16 | ADC, I2C, SPI, CAN, TIM, I2S |
| PC0-PC15 | 16 | ADC, SDIO, TIM, EXMC |
| PD0-PD15 | 16 | EXMC data/address bus, USART |
| PE0-PE15 | 16 | EXMC, TIM, ADC, SPI |
| Power | 8 | VDD, VSS pairs, VDDA, VSSA |
| Oscillators | 4 | HSE, LSE crystal inputs/outputs |
| USB | 2 | USB_DP, USB_DM |
| System | 2 | NRST, BOOT0 |
| Total I/O | up to 80 | 5V-tolerant except analog |
| Manufacturer | Part Number | Package | Notes |
|---|---|---|---|
| GigaDevice | GD32F105RBT6 | LQFP-64 | Smaller package, same USB OTG |
| GigaDevice | GD32F105VET6 | LQFP-100 | 512KB Flash, same package |
| STMicroelectronics | STM32F105VCT6 | LQFP-100 | Pin-compatible STM32 alternative |
| GigaDevice | GD32F207VCT6 | LQFP-100 | Cortex-M3 120MHz, Ethernet+OTG |
| GigaDevice | GD32F107VCT6 | LQFP-100 | Same package with Ethernet MAC |
