ICL7660SIBAZT

CMOS charge pump voltage inverter, 1.5~12V in, -1.5~-12V out, 45mA, 96% eff, SOIC-8, industrial

12345

Effective Inventory
Go to Inquiry

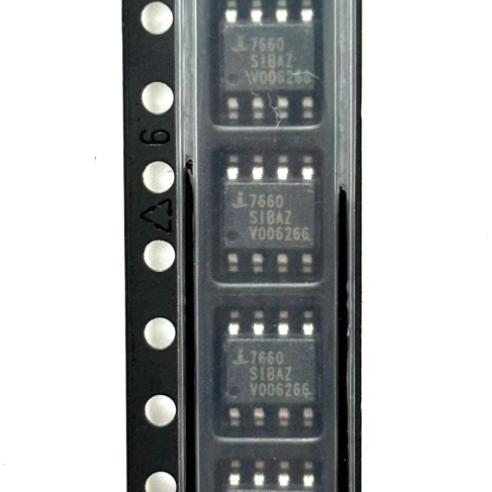

Image for reference only

Manufacturer Part：

ICL7660SIBAZT

Package：

SOIC-8 (narrow, 150mil)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCV887103D1R2G

NCF3320EHN

NC7SZ126M5X

NAE12S17-A

Description

Product Overview

The ICL7660SIBAZT is a monolithic CMOS switched-capacitor voltage converter (charge pump) from Renesas Electronics (formerly Intersil). It inverts, doubles, divides, or multiplies an input voltage from 1.5V to 12V, with up to 45mA output current and 96% typical power efficiency. The SIBAZT variant is in an 8-pin SOIC (narrow) package with tape & reel packing and industrial temperature range (-40°C to +85°C).

Key Specifications

Function Voltage Inverter / Doubler / Multiplier
Input Voltage 1.5V to 12V
Output Voltage -1.5V to -12V (inverted)
Output Current 45 mA max
Power Efficiency 96% typical
Conversion Efficiency 99% open-circuit
Switching Frequency 10 kHz (default), up to 35 kHz with BOOST
Supply Current 200 µA max (no load, 5V)
External Components 2 capacitors only
Operating Temp -40°C to +85°C
Package SOIC-8 (narrow, 150mil)
Packing Tape & Reel
Part Status Active

Features

  • Switched-capacitor voltage converter: invert, double, divide, multiply
  • Wide input range: 1.5V to 12V
  • 45mA output current capability
  • 96% typical power efficiency
  • BOOST pin for higher switching frequency (smaller caps)
  • Only 2 external capacitors required
  • Direct replacement for industry-standard ICL7660 / LTC1044
  • Simple +5V to -5V conversion

Applications

  • +5V to -5V supply generation for analog circuits
  • RS-232 / RS-562 power supply
  • Op-amp negative rail generation
  • Handheld instrumentation (PDA, DMM)
  • Portable communications

The ICL7660SIBAZT is a monolithic CMOS switched-capacitor voltage converter from Renesas (formerly Intersil) that inverts, doubles, divides, or multiplies input voltages from 1.5V to 12V. With 45mA output current and 96% typical efficiency, it is ideal for generating negative rails from positive supplies (e.g., +5V to -5V). The BOOST pin increases switching frequency to reduce external capacitor size. Only 2 capacitors are required. The 8-pin SOIC with tape & reel packing and industrial temperature grade make it a drop-in replacement for the industry-standard ICL7660 and LTC1044.

The ICL7660S uses four internal MOSFET switches and two external capacitors (C_pump and C_hold) in a charge-pump (flying capacitor) topology. During phase 1, C_pump charges to V+ through S1/S2. During phase 2, S1/S2 open and S3/S4 close, connecting C_pump in series with C_hold to transfer charge and generate -V+ at the output. The BOOST pin connects to an external capacitor to raise the oscillator frequency from 10kHz to ~35kHz, reducing output ripple and capacitor size requirements. Conversion modes: (1) Invert: VOUT = -VIN, (2) Double: VOUT = +2VIN, (3) Divide: VOUT = +VIN/2.

Pin Name Function
1 BOOST Frequency boost (connect cap to V+ or leave open)
2 CAP+ Positive terminal of pump capacitor
3 CAP- Negative terminal of pump capacitor
4 GND Ground
5 VOUT Output voltage (-VIN)
6 LV Low voltage operation (connect to GND for VIN<3.5V)
7 OSC Oscillator control (leave open or connect cap)
8 V+ Positive supply input
  • +5V to -5V supply for op-amp negative rail
  • RS-232 negative voltage generation
  • Handheld DMM and PDA power conversion
  • Instrumentation dual-rail generation from single supply
Manufacturer Part Number Package Notes
ADI (Maxim) MAX1044CSA+T SOIC-8 Pin-compatible, with BOOST
TI LMC7660IM8 SOIC-8 CMOS voltage inverter alternative
ADI ICL7660ESA+T SOIC-8 ADI-branded equivalent
