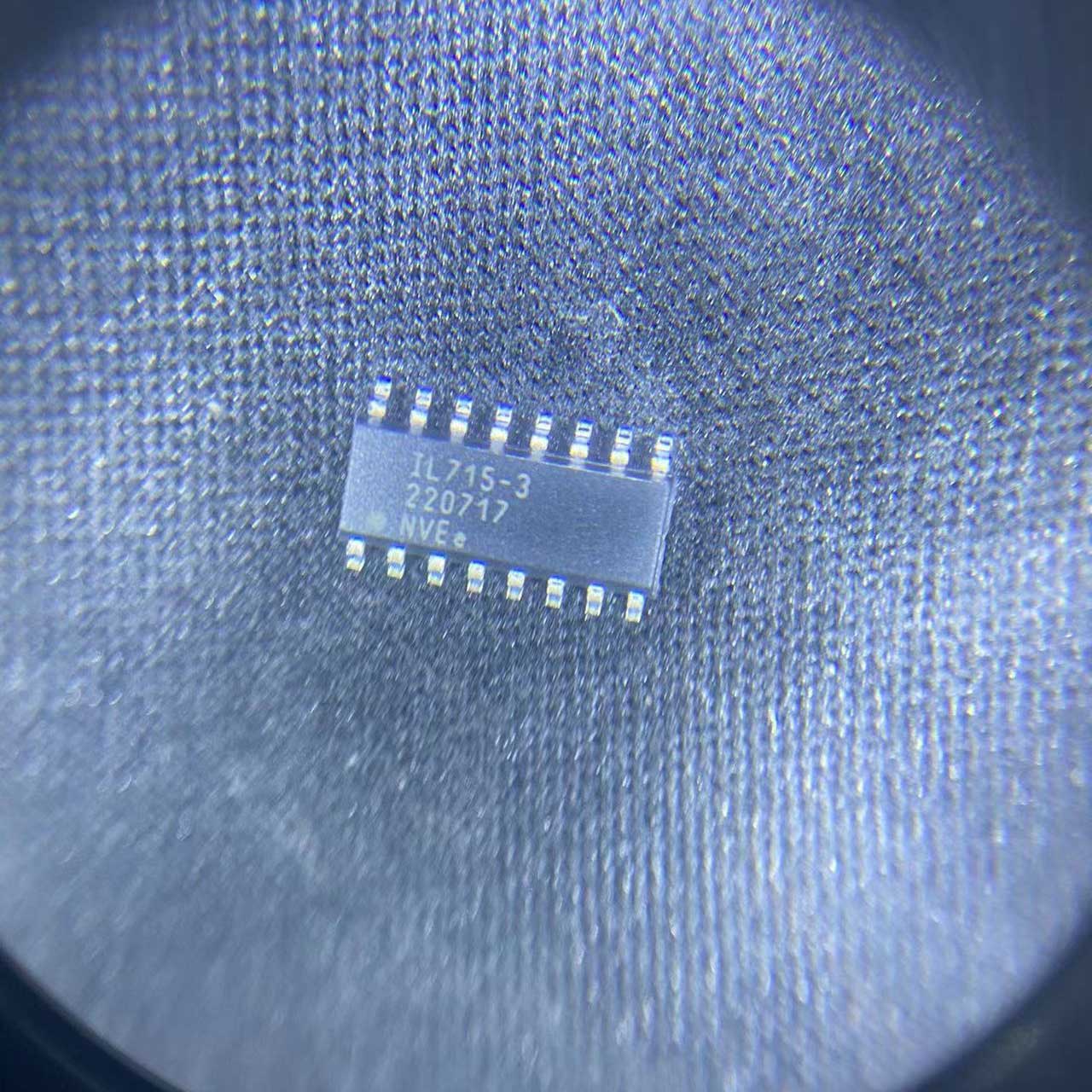

NVE IL715-3E 4-channel digital isolator, 2.5kVrms, 110Mbps, 16-SOIC narrow body

7890

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

IL715-3E

Package：

SOIC-16 NB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The IL715-3E is a high-speed 4-channel digital isolator from NVE Corporation’s IsoLoop® family. Utilizing patented Giant Magnetoresistive (GMR) isolation technology, this device provides 2.5kVrms galvanic isolation with excellent signal integrity and common-mode transient immunity for industrial and automotive applications.

Key Specifications

Manufacturer NVE Corporation
Device Type 4-Channel Digital Isolator
Isolation Voltage 2.5 kVrms
Data Rate 110 Mbps (max)
Number of Channels 4 (unidirectional)
Supply Voltage 2.7V to 5.5V (both sides)
CMTI 100 kV/µs (typical)
Propagation Delay 4 ns (typical)
Package SOIC-16 Narrow Body
Operating Temperature -40°C to +125°C

Features

  • IsoLoop® GMR isolation technology
  • 2.5kVrms galvanic isolation rating
  • High data rate: up to 110 Mbps
  • Low propagation delay: 4ns typical
  • 4 unidirectional channels (all forward direction)
  • Wide supply range: 2.7V to 5.5V both sides
  • High common-mode transient immunity: 100kV/µs
  • Low power consumption
  • RoHS compliant, industrial temperature range

Applications

  • Industrial communication interfaces
  • SPI, I2C, and other serial bus isolation
  • Analog-to-digital converter isolation
  • Power supply feedback and monitoring
  • Motor drive control interfaces
  • Medical equipment isolation
  • Test and measurement equipment

The IL715-3E is NVE Corporation’s high-performance 4-channel digital isolator featuring patented IsoLoop® Giant Magnetoresistive (GMR) isolation technology. This device provides 2.5kVrms galvanic isolation between its logic sides while enabling high-speed digital signal transmission up to 110Mbps. With a low typical propagation delay of only 4ns and exceptional common-mode transient immunity of 100kV/µs, the IL715-3E is ideal for high-speed isolation applications in industrial automation, power electronics, and communication systems. The device operates with supply voltages from 2.7V to 5.5V on both sides, supporting mixed-voltage system designs.

The IL715-3E uses NVE’s proprietary IsoLoop GMR (Giant Magnetoresistive) technology for signal isolation. Digital input signals drive micro-coils that generate magnetic fields across the isolation barrier. On the receiving side, GMR sensor elements detect these magnetic field changes and convert them back into digital signals. This magnetoresistive approach eliminates the LED degradation mechanisms found in optocouplers, providing superior long-term reliability and stability. Each channel operates independently with unidirectional signal flow from the input side to the output side across the isolation barrier.

Pin Number Pin Name Function
1 VDD1 Input Side Power Supply (2.7-5.5V)
2 IN1 Channel 1 Input
3 IN2 Channel 2 Input
4 IN3 Channel 3 Input
5 IN4 Channel 4 Input
6 GND1 Input Side Ground
7 NC No Connection
8 NC No Connection
9 GND2 Output Side Ground
10 NC No Connection
11 OUT4 Channel 4 Output
12 OUT3 Channel 3 Output
13 OUT2 Channel 2 Output
14 OUT1 Channel 1 Output
15 NC No Connection
16 VDD2 Output Side Power Supply (2.7-5.5V)
  • Industrial automation and control systems
  • SPI and I2C bus isolation
  • ADC and DAC interface isolation
  • Switch-mode power supply feedback
  • Motor drive and inverter control
  • Medical equipment patient isolation
  • Test and measurement instruments
Model Manufacturer Description
IL716-3E NVE Dual-channel bidirectional version
IL717-3E NVE Tri-channel mixed direction
ADUM1400 Analog Devices Alternative iCoupler 4-channel isolator
Recommend Parts
