INA128UA/2K5

Precision instrumentation amplifier, 3-op-amp, G=1-10000, 120dB CMRR, 700µA, SOIC-8, TI INA128

7890

Effective Inventory
Go to Inquiry

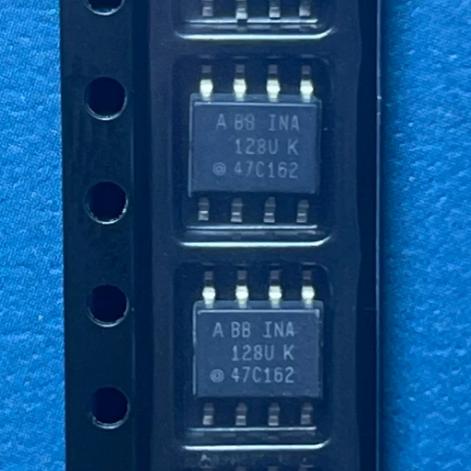

Image for reference only

Manufacturer Part：

INA128UA/2K5

Package：

8-Pin SOIC (SO-8), 4.9mm x 3.9mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The INA128UA/2K5 is a precision, low-power instrumentation amplifier from Texas Instruments, featuring a classic 3-op-amp architecture with current-feedback inputs for wide bandwidth even at high gain. This versatile in-amp offers excellent accuracy with laser-trimmed offset voltage (50µV max), low drift (0.5µV/°C max), and high common-mode rejection ratio (120dB min at G ≥ 100). Gain is set from 1 to 10,000 with a single external resistor, using the industry-standard gain equation G = 1 + 50kΩ/R_G. Operating on only 700µA of quiescent current with supply voltages from ±2.25V to ±18V, the INA128 is ideal for battery-powered and portable instrumentation. It is available in an 8-pin SOIC package rated for -40°C to +125°C operation.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Type Instrumentation Amplifier (In-Amp)
Architecture 3-Op-Amp, Current-Feedback Input
Gain Range 1 to 10,000 V/V
Gain Equation G = 1 + (50kΩ / R_G)
Offset Voltage (max) 50 µV (INA128U grade)
Offset Drift (max) 0.5 µV/°C
CMRR (min) 120 dB at G ≥ 100
Input Bias Current 5nA max, 0.7nA max (FRE grade)
Bandwidth (G=1) 1.3 MHz
Bandwidth (G=100) 200 kHz
Slew Rate 4 V/µs
Supply Voltage ±2.25V to ±18V (4.5V to 36V single-supply)
Quiescent Current 700 µA typ
Input Protection ±40V continuous
Package 8-Pin SOIC (SO-8)
Operating Temperature -40°C to +125°C

Features

  • Low offset voltage: 50µV maximum (laser trimmed)
  • Low offset drift: 0.5µV/°C maximum
  • High common-mode rejection ratio: 120dB min at G ≥ 100
  • Wide bandwidth: 1.3MHz at G=1, 200kHz at G=100
  • Low input bias current: 5nA maximum
  • Low noise: 8nV/√Hz, 0.2µVpp (0.1-10Hz)
  • Single resistor gain set: 1 to 10,000
  • Wide supply range: ±2.25V to ±18V
  • Low quiescent current: 700µA typical
  • ±40V input overvoltage protection
  • Industry-standard gain equation (G = 1 + 50k/R_G)
  • Reference pin for output offset adjustment
  • Available in DIP-8 and SOIC-8 packages

Applications

  • Bridge amplifiers (strain gauges, load cells, pressure sensors)
  • Thermocouple and RTD signal conditioning
  • Data acquisition systems
  • Medical instrumentation
  • Industrial process control
  • Differential signal amplification
  • Current sensing with shunt resistors
  • Battery-powered portable instrumentation
  • Audio preamplifiers and microphone buffers

The INA128UA/2K5 from Texas Instruments is a high-precision, low-power instrumentation amplifier designed for accurate differential signal amplification in measurement and instrumentation applications. Built around a classic 3-op-amp topology with current-feedback input stages, it delivers wide bandwidth even at high gains — 200kHz at gain of 100 — outperforming traditional voltage-feedback instrumentation amplifiers. Gain is programmed from 1 to 10,000 using a single external resistor, following the industry-standard formula G = 1 + 50kΩ/R_G, which simplifies design and provides drop-in compatibility with existing systems. Laser wafer trimming ensures tight specifications: 50µV maximum offset voltage, 0.5µV/°C maximum drift, and 120dB minimum common-mode rejection at gains of 100 and above. Operating on just 700µA of quiescent current and accepting supply voltages from ±2.25V to ±18V, the INA128 is well-suited for both single-supply and split-supply operation, making it ideal for battery-powered portable equipment. Built-in ±40V input overvoltage protection protects against fault conditions without external components.

The INA128 uses a 3-op-amp instrumentation amplifier architecture. The input stage consists of two op-amps (A1, A2) configured as differential amplifiers with current-feedback inputs. This input stage amplifies the differential voltage V_IN = V_IN+ – V_IN- while maintaining high input impedance. The gain of the first stage is set by the external resistor R_G connected between the two gain-setting pins, per the formula G_stage1 = 1 + 2*(25kΩ)/R_G. The second stage (op-amp A3) is a differential amplifier that converts the differential signal from the first stage to a single-ended output referenced to the REF pin. The overall gain is G = 1 + 50kΩ/R_G. The current-feedback topology of the input stage provides wider bandwidth at higher gains compared to voltage-feedback designs, because the gain-bandwidth product effectively increases with gain. The REF pin allows the user to set the output reference voltage, enabling level shifting and single-supply operation. Internal 25kΩ series resistors at each input provide overvoltage protection up to ±40V by limiting fault current.

Pin Name Description
1 RG Gain setting resistor terminal 1
2 VIN- Inverting (negative) differential input
3 VIN+ Non-inverting (positive) differential input
4 V- Negative supply voltage
5 REF Reference voltage (output offset adjust)
6 VOUT Amplifier output
7 V+ Positive supply voltage
8 RG Gain setting resistor terminal 2
  • Wheatstone bridge amplifiers for load cells, pressure sensors, and strain gauges
  • Thermocouple and RTD temperature measurement front-ends
  • Data acquisition (DAQ) systems and precision measurement instruments
  • Medical equipment: ECG, EEG, patient monitoring devices
  • Industrial process control and factory automation
  • High-side and low-side current sensing with shunt resistors
  • Differential line receivers and signal conditioning
  • Battery-powered portable test and measurement equipment
  • Audio preamplifiers for microphones and sensors
Model Manufacturer Gain Range CMRR Package
INA129UA TI 1-10000 120dB SOIC-8 (AD620-compatible)
AD620 ADI 1-10000 130dB SOIC-8
INA828 TI 1-10000 140dB SOIC-8 (improved version)
MCP6N16 Microchip 1-10000 100dB MSOP-8
