INA828IDR

TI INA828IDR precision instrumentation amplifier, 25µV offset, 10MHz BW, 1-10000 gain, SOIC-8

9450

Effective Inventory
Go to Inquiry

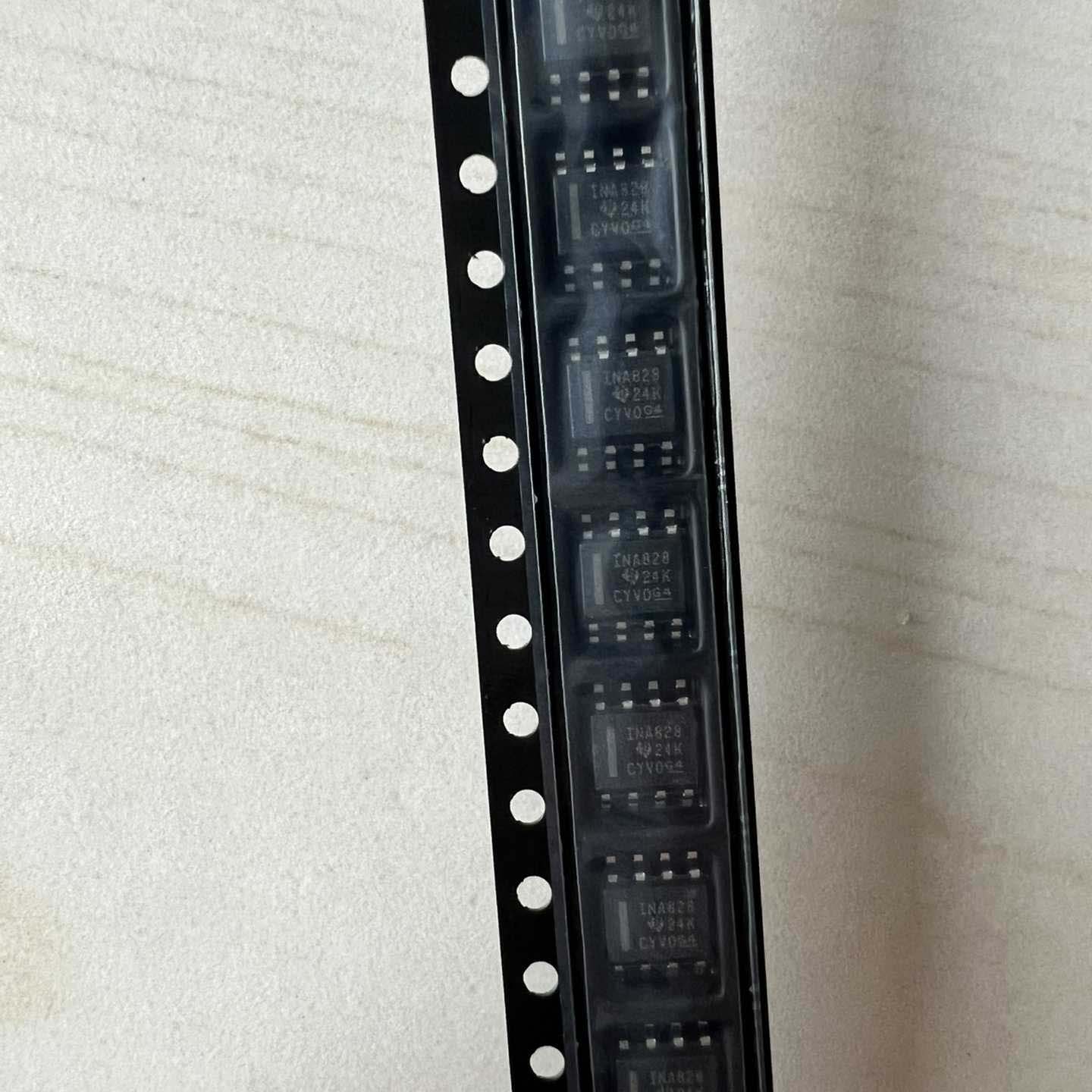

Image for reference only

Manufacturer Part：

INA828IDR

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The INA828IDR is a high-precision instrumentation amplifier from Texas Instruments. This device offers excellent DC accuracy with low offset voltage and drift, combined with low noise and wide bandwidth, making it ideal for precision signal conditioning in industrial and measurement applications.

Key Specifications

Manufacturer Texas Instruments
Device Type Precision Instrumentation Amplifier
Gain Range 1 V/V to 10,000 V/V
Gain Set Method Single external resistor
Input Offset Voltage 25 µV (max)
Offset Voltage Drift 0.3 µV/°C (max)
Input Bias Current ±3 nA (max)
Common-Mode Rejection Ratio 96 dB (min, G=1)
Bandwidth 10 MHz (G=1)
Supply Voltage ±2.25V to ±18V / +4.5V to +36V
Package SOIC-8
Operating Temperature -40°C to +125°C

Features

  • Excellent DC accuracy and stability
  • Low input offset voltage and drift
  • Wide bandwidth: 10MHz at unity gain
  • Single resistor gain setting (1 to 10,000 V/V)
  • High common-mode rejection ratio
  • Wide supply voltage range
  • Low input voltage noise
  • Standard 8-pin SOIC package
  • Industrial temperature range

Applications

  • Precision data acquisition systems
  • Strain gauge and load cell amplifiers
  • Thermocouple and RTD signal conditioning
  • Industrial process control
  • Medical instrumentation
  • Current sensing with shunt resistors
  • Audio and sensor signal processing

The INA828IDR is a high-precision instrumentation amplifier from Texas Instruments designed for demanding measurement and industrial applications. This device features exceptional DC accuracy with a maximum input offset voltage of 25µV and offset drift of only 0.3µV/°C, ensuring stable performance over temperature. Gain is set with a single external resistor over a wide range from 1 V/V to 10,000 V/V. With 10MHz bandwidth at unity gain and low input noise, the INA828 delivers excellent dynamic performance for high-frequency signal conditioning. The device operates from a wide supply range of ±2.25V to ±18V (or single supply 4.5V to 36V), making it versatile for various system architectures.

The INA828 uses a classic three-op-amp instrumentation amplifier architecture. The input stage consists of two matched op-amps that provide high input impedance and initial gain determined by the external gain resistor (RG) and internal feedback resistors. A third op-amp in the output stage provides the differential-to-single-ended conversion with additional common-mode rejection. This architecture combines high input impedance, excellent common-mode rejection, and precise gain control. The device’s internal laser-trimmed resistors ensure tight gain accuracy and excellent matching between channels. The output voltage is proportional to the differential input voltage multiplied by the programmed gain.

Pin Number Pin Name Function
1 RG Gain Resistor Connection (RG between pins 1 and 8)
2 IN+ Non-Inverting Input
3 IN- Inverting Input
4 V- Negative Power Supply
5 REF Reference Voltage Input (sets output offset)
6 OUT Amplifier Output
7 V+ Positive Power Supply
8 RG Gain Resistor Connection
  • Precision data acquisition and measurement systems
  • Strain gauge, load cell, and pressure sensor amplifiers
  • Thermocouple and RTD signal conditioning
  • Industrial process control transmitters
  • Medical instrumentation and patient monitoring
  • High-side and low-side current sensing
  • Audio signal processing and preamplification
Model Manufacturer Description
INA826IDR TI Lower cost version, 350µV offset
INA128 TI Classic instrumentation amplifier
AD620 Analog Devices Alternative precision in-amp
