IPD068N10N3

Infineon IPD068N10N3 OptiMOS 3 N-channel MOSFET, 100V, 90A, 6.8mΩ, TO-252 DPAK

11230

Effective Inventory
Go to Inquiry

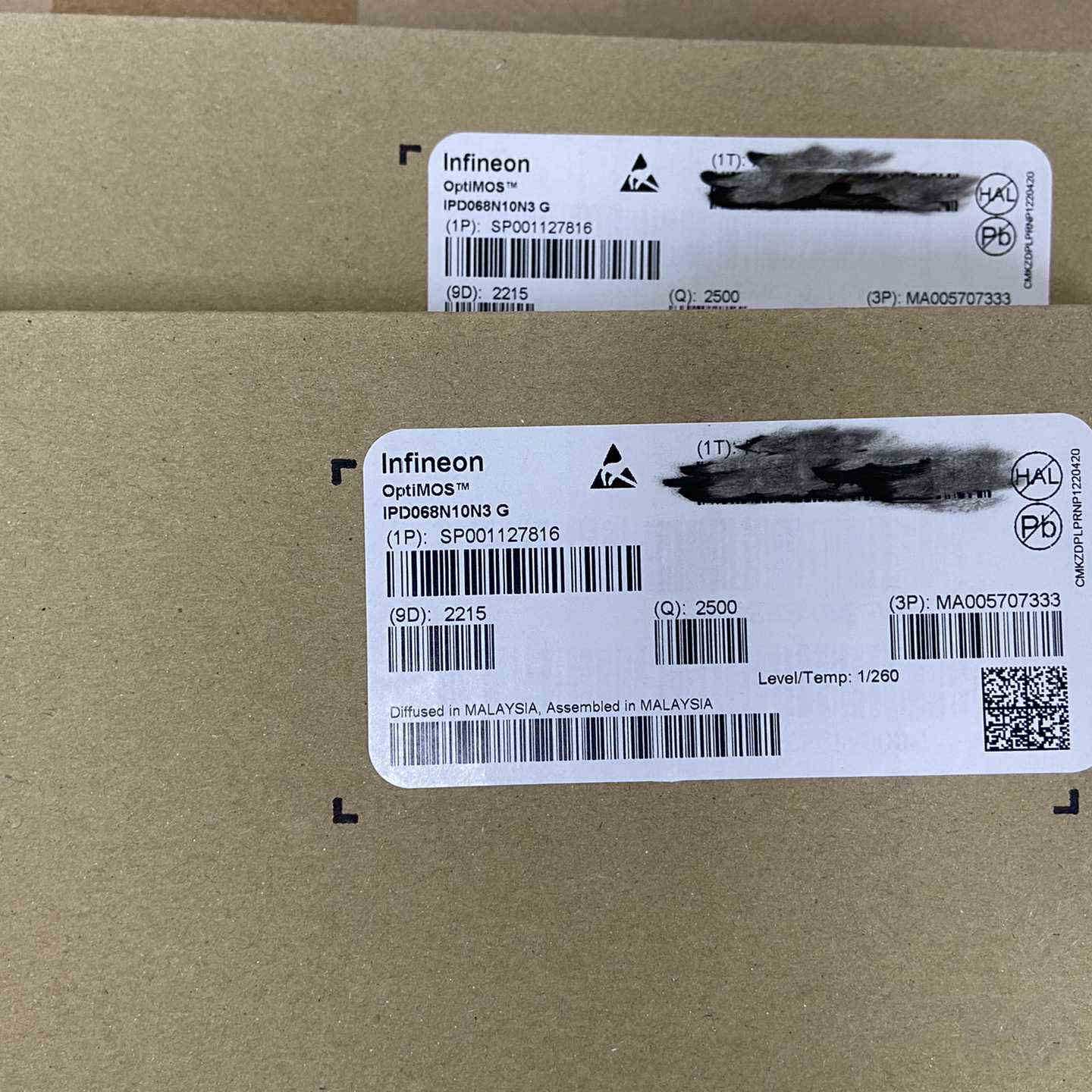

Image for reference only

Manufacturer Part：

IPD068N10N3

Package：

TO-252 (DPAK)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The IPD068N10N3 is a high-performance N-channel power MOSFET from Infineon Technologies’ OptiMOS™ 3 family. Rated at 100V with 6.8mΩ on-resistance, this device delivers excellent conduction and switching performance for high-efficiency power conversion applications.

Key Specifications

Manufacturer Infineon Technologies
Device Type N-Channel Power MOSFET
VDS 100 V
ID (Continuous) 90 A @ Tc=25°C
RDS(on) 6.8 mΩ (typ) @ VGS=10V
VGS(th) 2.0 V to 4.0 V
Q_g (Total Gate Charge) 70 nC (typ)
Package TO-252 (DPAK)
Operating Temperature -55°C to +175°C

Features

  • OptiMOS™ 3 technology for superior performance
  • Very low RDS(on): 6.8mΩ typical
  • High continuous current rating: 90A
  • Low gate charge for fast switching
  • 175°C operating junction temperature
  • Avalanche energy rated
  • RoHS compliant, halogen-free
  • TO-252 surface mount package

Applications

  • DC-DC converters
  • Synchronous rectification
  • Motor drives
  • Power supply modules
  • Battery management systems
  • Load switching
  • Automotive power systems
  • Industrial power electronics

The IPD068N10N3 is a high-performance N-channel enhancement-mode power MOSFET from Infineon Technologies’ OptiMOS™ 3 product family. With a 100V drain-source voltage rating and an ultra-low on-resistance of only 6.8mΩ, this device delivers outstanding conduction efficiency for high-current applications. The device is rated for 90A continuous drain current at 25°C case temperature and features excellent switching performance with low gate charge and output capacitance. Packaged in the compact TO-252 (DPAK) surface-mount package, the IPD068N10N3 is ideal for space-constrained high-efficiency power designs including synchronous rectifiers, DC-DC converters, and motor control circuits.

The IPD068N10N3 is an N-channel enhancement-mode MOSFET that operates as a voltage-controlled switch. When the gate-source voltage (VGS) exceeds the threshold voltage, an inversion layer forms in the channel region, allowing current to flow between drain and source. The OptiMOS™ 3 technology uses an optimized trench gate structure with very fine cell pitch to achieve both very low on-resistance and low gate charge, resulting in an excellent figure of merit (RDS(on) × Qg). The device features a robust body diode that can be used as a freewheeling diode in synchronous rectifier applications. The device’s vertical current flow structure provides excellent heat dissipation through the drain tab.

Pin Number Pin Name Function
1 Gate (G) Gate Control Terminal
2 Drain (D) Drain Terminal (connected to tab)
3 Source (S) Source Terminal

TO-252 (DPAK) 3-lead surface mount package. Pin 2 (drain) is connected to the large metal tab for heat dissipation.

  • Synchronous rectification in SMPS and DC-DC converters
  • Buck and boost converters
  • Motor drive and control circuits
  • OR-ing and load switching applications
  • Battery management systems
  • Automotive power electronics
  • Industrial power supply modules
  • High-current switching regulators
Model Manufacturer Description
IPP068N10N3 Infineon TO-220 version
IPD088N10N3 Infineon 8.8mΩ lower current version
IRF3710 Infineon/IR Alternative 100V MOSFET
