IPD70R360P7S

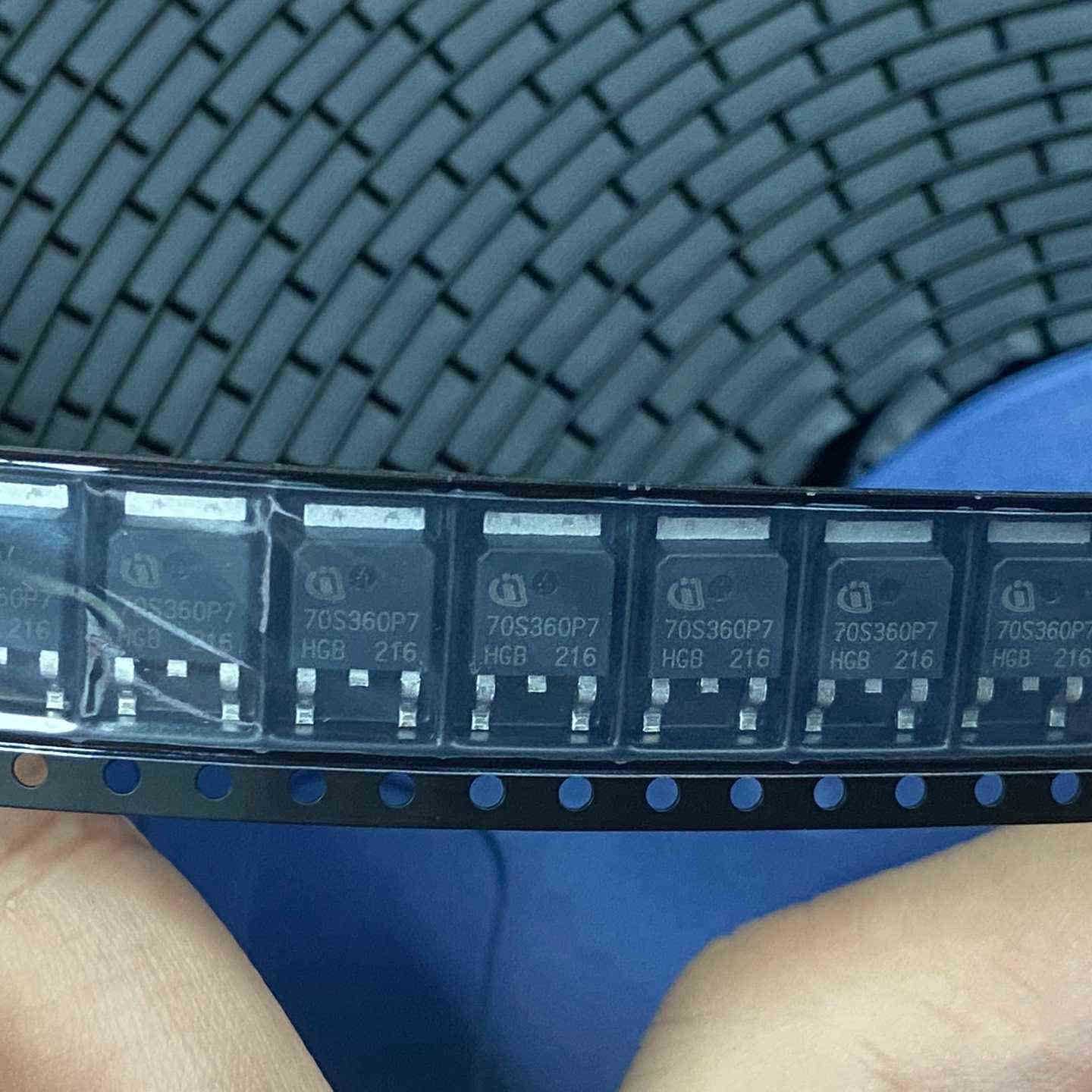

Infineon IPD70R360P7S CoolMOS P7 MOSFET, 700V, 11A, 360mΩ, TO-252 DPAK

6540

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

IPD70R360P7S

Package：

TO-252 (DPAK)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The IPD70R360P7S is a high-voltage N-channel CoolMOS™ P7 super-junction MOSFET from Infineon Technologies. Rated at 700V with 360mΩ on-resistance in a compact TO-252 (DPAK) package, this device offers exceptional efficiency for high-voltage switch-mode power supplies and resonant converter applications.

Key Specifications

Manufacturer Infineon Technologies
Device Type N-Channel CoolMOS™ P7 MOSFET
VDS 700 V
ID (Continuous) 11 A @ Tc=25°C
RDS(on) 360 mΩ (typ) @ VGS=10V
VGS(th) 3.0 V (typ)
Q_g (Total Gate Charge) 26 nC (typ)
Eoss (Output Capacitance Energy) 6.9 µJ (typ)
Package TO-252 (DPAK)
Operating Temperature -55°C to +150°C

Features

  • CoolMOS™ P7 super-junction technology
  • 700V high voltage rating
  • Low RDS(on): 360mΩ typical
  • Very low gate charge and output capacitance
  • Optimized for hard-switching topologies
  • Excellent body diode ruggedness
  • Fast switching performance
  • RoHS compliant, halogen-free

Applications

  • AC-DC power supplies (PFC and LLC)
  • Server and telecom power systems
  • LED lighting drivers
  • Solar micro-inverters
  • Industrial power supplies
  • Resonant converter topologies
  • Consumer electronics SMPS

The IPD70R360P7S is a state-of-the-art N-channel CoolMOS™ P7 super-junction MOSFET from Infineon Technologies. This 700V device features the industry-leading CoolMOS P7 technology platform, which provides an optimized balance between conduction losses, switching losses, and ease of use. With 360mΩ on-resistance in a compact TO-252 (DPAK) package, the IPD70R360P7S delivers significant efficiency improvements over conventional planar MOSFETs. The P7 technology features improved gate charge characteristics and optimized output capacitance, making it ideal for high-efficiency power factor correction (PFC) stages, LLC resonant converters, and other hard-switching and soft-switching topologies.

The IPD70R360P7S utilizes Infineon’s proprietary CoolMOS™ P7 super-junction technology, which replaces the conventional planar drift region with a vertical charge compensation structure. This allows much higher doping levels in the drift region while maintaining high blocking voltage capability, resulting in dramatically lower on-resistance compared to traditional MOSFETs of the same die area. The P7 generation features optimized cell design and charge balancing that reduce both gate charge (Qg) and output capacitance energy (Eoss), improving switching performance and reducing switching losses. The device features a fast body diode with improved reverse recovery characteristics, important for hard-switching applications.

Pin Number Pin Name Function
1 Gate (G) Gate Control Terminal
2 Drain (D) Drain Terminal (connected to tab)
3 Source (S) Source Terminal

TO-252 (DPAK) surface mount package with drain tab for thermal dissipation. Standard gate-source threshold range 2.0V to 4.0V.

  • Power Factor Correction (PFC) circuits
  • LLC resonant converters
  • Flyback and forward converters
  • Server and telecom power supplies
  • LED driver power stages
  • Solar micro-inverters
  • Industrial switch-mode power supplies
  • Consumer electronics power adapters
Model Manufacturer Description
IPP70R360P7 Infineon TO-220 package version
IPD70R450P7S Infineon 450mΩ higher resistance version
IPA60R360P7 Infineon 600V CoolMOS P7 variant
